AMG8833 8x8 Infrared Thermal Imager Thermal Sensor Module 0-127℃ w/ 4G TF Card 1.6" Screen Finished

Availability: In stock, usually dispatched in 1 business day

  • Price:$55.45
  • Price in reward points: 555 Reward Points: 6
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $54.34 $53.23 $51.57 $49.35 Contact US
Quantity:

AMG8833 8x8 Infrared Thermal Imager Thermal Sensor Module 0-127℃ w/ 4G TF Card 1.6" Screen Finished

Features:

- Sensor resolution 8*8.

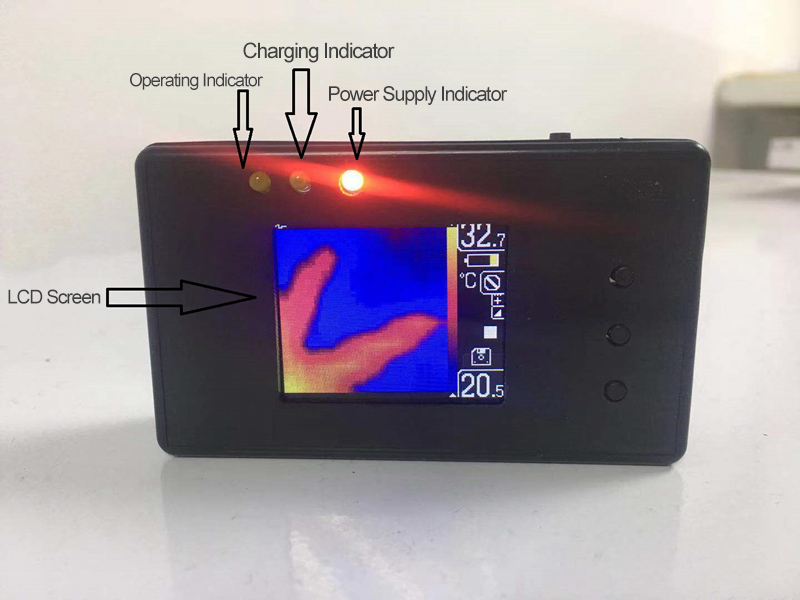

- 1.6-inch TFT screen with resolution 160*128.
- Super large capacity 1000mAh. It can last for four and a half hours after being fully charged. It takes around one hour to charge.
- Support external power supply. It can be powered and charged via USB Micro port.
- 4G TF Card: It supports TF card storage in FAT format. It can be used to store screenshots, display screen capture file names, and can view screenshots on the system. Each screenshot is about 60kb.
- Sensor working range 0 to 127℃. Accuracy: ±3℃. The thermal imager can only measure the temperature of the heat source surface. For example, the hot water cup is measured. The measured temperature is the temperature of the water surface, not the temperature under the water. When it is out of the working range, the maximum and minimum value is 0℃.
- Sensor data refresh rate 10hz.
- Application: For circuit board maintenance, fault detection, food temperature. measurement, industrial site troubleshooting, etc.

Package Included:

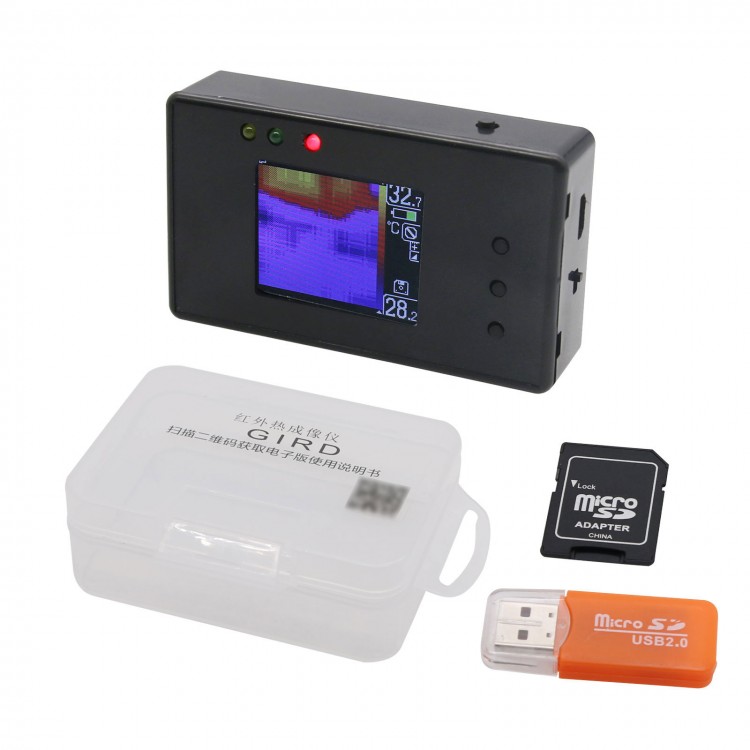

- 1 x AMG8833 8x8 Infrared Thermal Imager with Shell
- 1 x 4G TF Card
- 1 x TF Card Reader
