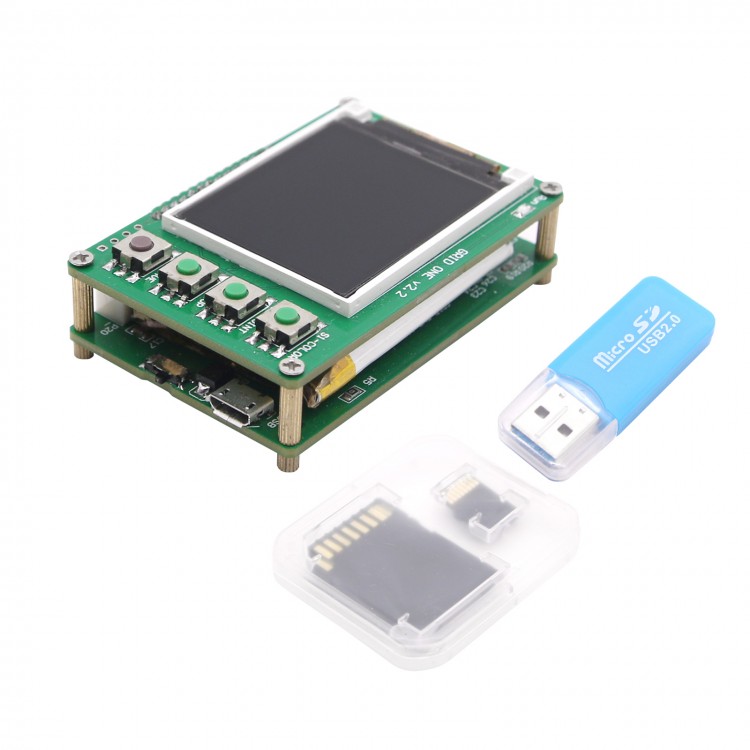

AMG8833 8x8 Infrared Thermal Imager Thermal Sensor Module w/ 4G TF Card 1.6" Screen Standard Version
- Sensor resolution 8*8.
- 1.6-inch TFT screen with resolution 160*128.
- Super large capacity 1000mAh. It can last for four and a half hours after being fully charged. It takes around one hour to charge.
- Support external power supply. It can be powered and charged via USB Micro port.
- 4G TF Card: It supports TF card storage in FAT format. It can be used to store screenshots, display screen collects file names, and can view screenshots on the system. Each screenshot is about 60kb.
- Sensor working range 0 to 80℃. Accuracy: ±3℃. When it is out of the working range, the maximum and minimum value is 0℃.
- Sensor data refresh rate 10hz
- Application: For circuit board maintenance, fault detection, food temperature measurement, industrial site troubleshooting, etc.
- 1 x AMG8833 8x8 Infrared Thermal Imager
- 1 x 4G TF Card
- 1 x TF Card Reader
- 1 x SD Card Holder
- The working range for this sensor is 0 to 80℃. If 120℃ version is needed, please contact us for details and price.
- Please scan the QR Code on the product to get user manual.
- Pictures are for reference only. The actual appearance of items may differ from what is pictured, but the functions are totally the same.
