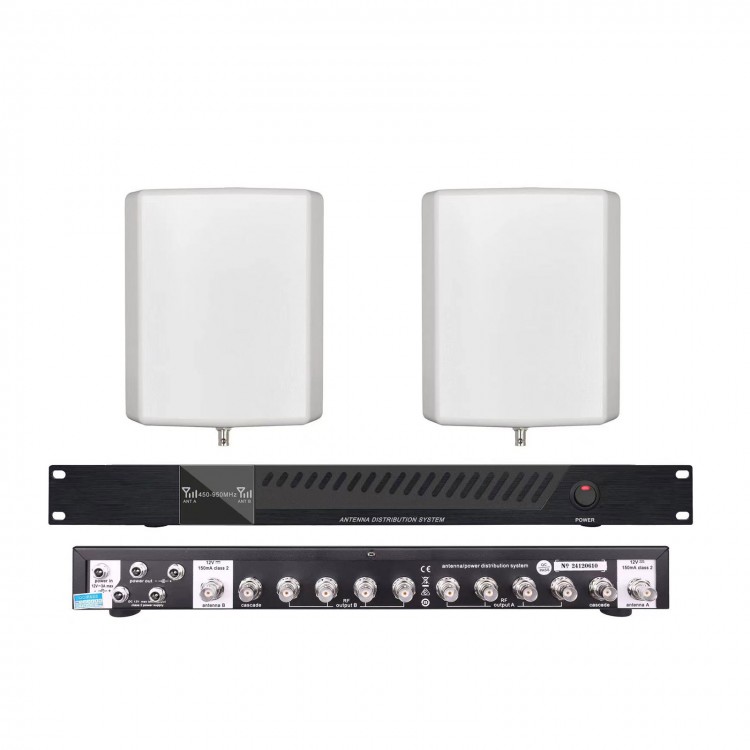

BK-610 450MHz-950MHz Antenna Distribution System 10-Way 180° Omnidirectional Antenna Splitter

Parameters:
- Antenna box type: Logarithmic periodic dipole array (LPDA) antenna
- Working voltage: DC-8V
- Directivity: Vertical circular 180 degrees typical
- Number of wave-guide segments: 11
- Connection terminal: Fixed right-angle BNC female socket
- Gain: 18DB

Technical Indicators of Main Unit:
- Frequency range: 450 MHz-950MHz (positive and negative deviations are not higher than 10%)
- Total gain: 0dB, ±1dB
- Separation: >25dB
- Input/output impedance: 50 ohms
- Connector port: BNC
- Antenna power supply: +12V DC/200mA (The center point is positive)
- DC output: 12V DC/1A (MAX) * 4 groups (The center point is positive)
- Power supply: 100-240V AC, 50/60Hz 36W

Package Included:
- 1 x Main unit
- 2 x Antenna wings
- 1 x Power adapter
- 4 x DC power cords
- 2 x 2.5m connection cables
- 10 x 0.5m connection cables

Packaging Details:
- Weight: 7.5kg
