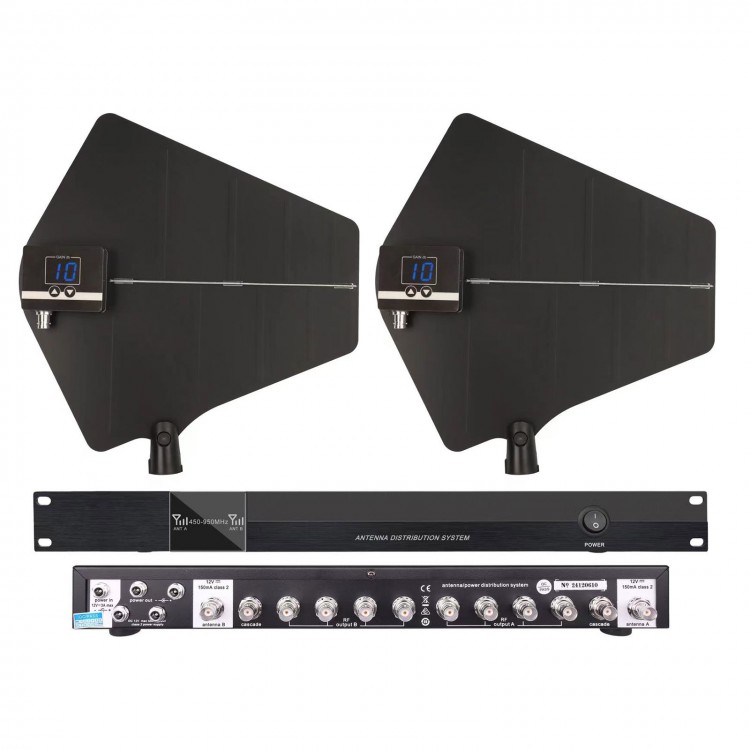

BK-615 450MHz-950MHz Antenna Distribution System 10-Way Antenna Splitter & Antennas w/ 16-level Gain

Antenna Technical Indicators:
- Frequency range: 480-950MHz
- Directivity: cardioid
- Polarization: linear
- Gain: -16 to 16db (manual step 1dB)
- VSWR: <2
- Amplifier low noise: <0.6dB
- Amplifier OIP3: >38dBm
- External power supply: 6-12DCV
- Current: 150mA
- Connector port: BNC

Technical Indicators of Main Unit:
- Frequency range: 450 MHz-950MHz (positive and negative deviations are not higher than 10%)
- Total gain: 0dB, ±1dB
- Separation: >25dB
- Input/output impedance: 50 ohms
- Connector port: BNC
- Antenna power supply: +12V DC/200mA (center point is positive)
- DC output: 12V DC/1A (MAX) *4 groups (center point is positive)
- Power supply: 100-240V AC, 50/60Hz 36W

Package Included:
- 1 x Main unit
- 2 x Antenna wings
- 1 x Power adapter
- 4 x DC power cords
- 2 x 2.5m connection cables
- 10 x 0.5m connection cables
- 2 x Bracket connectors

Packaging Details:
- Weight: 7.5kg
