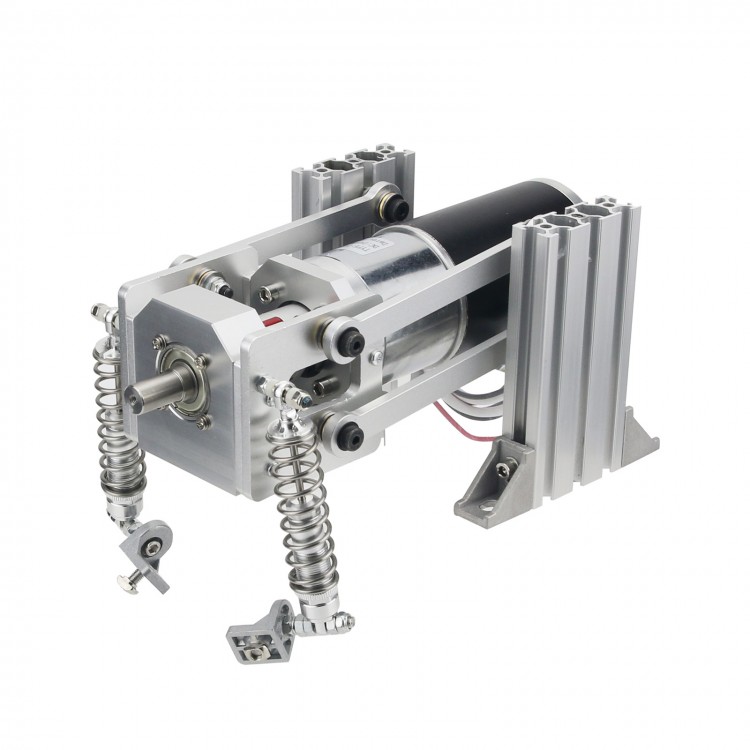

Chassis Wheel Independent Suspension Shock Absorber Damper with Photoelectric Encoder MD60 1:47
Output shaft: 12mm
Reduction ratio: 1:18
Motor type: DC brush
Rated voltage: 24V
Rated power: 100W
Rated current: 6A
Stall current: 22A
Rated speed: 67rpm
Rated torque: 145.4kg.cm
Number of encoder wires: 500ppr
Load capacity of the car constructed by 8 shock absorbers: 10-60kg
-High-precision CNC machining, high coaxiality.
-Stainless steel output shaft with keyway to ensure torque transmission, dual-bearing output to ensure coaxiality and strength.
-Adjustable nut can adjust the stroke of the shock absorber according to the load.
-It can be used on an independent suspension car.
Encoder Wiring Instructions:
Black wire: GND
Green: phase B
White: phase A
1 Set of Independent Shock Absorber
