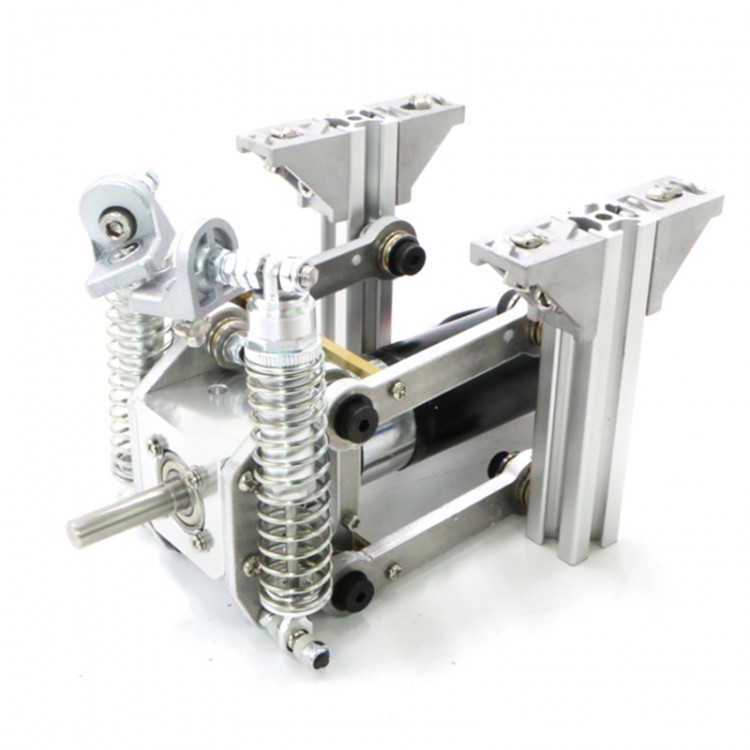

Chassis Wheel Independent Suspension Shock Absorber Damper with Planetary Gear Motor MD36 1:5.18

Availability: In stock, usually dispatched in 1 business day

  • Price:$170.36
  • Price in reward points: 1704 Reward Points: 17
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $166.95 $163.55 $158.43 $151.62 Contact US
Quantity:

Chassis Wheel Independent Suspension Shock Absorber Damper with Planetary Gear Motor MD36 1:5.18

Specifications:
Output shaft: 10mm
Motor model: MD36NP5.18
Motor voltage: 24V DC
No-load speed: 1690±170rpm
Rated speed: 1200±120rpm
Rated torque: 2.6kg.cm
No-load current: 0.3A
Rated current: 2.3A
Stall current: 7A
Load capacity of the car constructed by 8 shock absorbers: 5-30kg

Features:
-High-precision CNC machining, high coaxiality.
-Stainless steel output shaft with keyway to ensure torque transmission, dual-bearing output to ensure coaxiality and strength.
-Adjustable nut can adjust the stroke of the shock absorber according to the load.
-It can be used on an independent suspension car.

Package List:
1 Set of Independent Shock Absorber

Note:
1. The encoder outlet is XH2.544 P interface; the wire length is 495mm.
2. The motor outlet is 2 metal reeds, which need to be welded by yourself. And the umber of encoder wires is 500.
3. Encoder power supply voltage is 3.3 ~ 5V, with pull-up and can be directly read by the single-chip microcomputer.
