|Quantity||3+ units||10+ units||30+ units||50+ units||More|
|Price /Unit||$166.95||$163.55||$158.43||$151.62||Contact US|

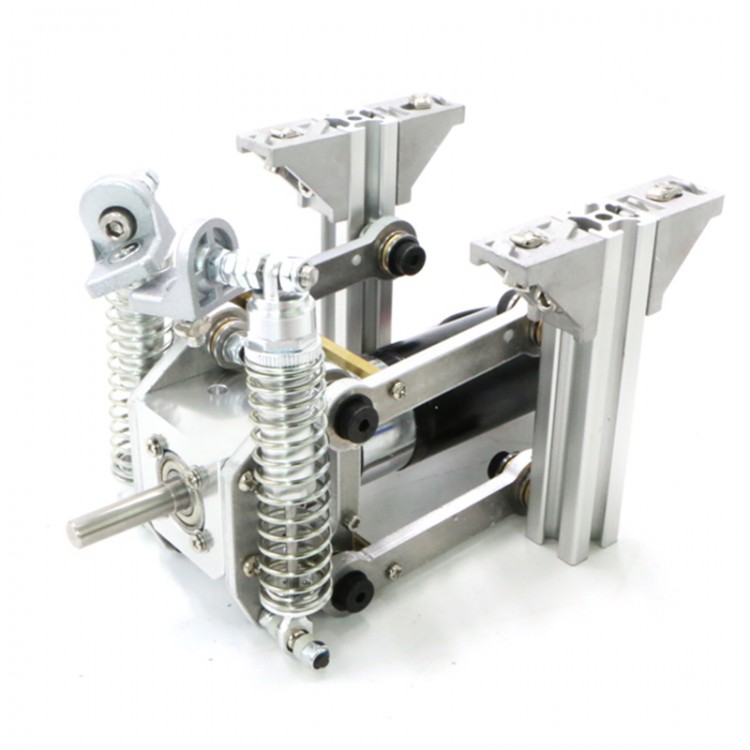

Chassis Wheel Independent Suspension Shock Absorber Damper with Planetary Gear Motor MD36 1:71
Output shaft: 10mm
Motor model: MD36NP71
Motor voltage: 24V DC
No-load speed: 123±10rpm
Rated speed: 87±7rpm
Rated torque: 35.5kg.cm
No-load current: 0.3A
Rated current: 2.3A
Stall current: 7A
The load capacity of the car constructed by 8 shock absorbers: 5-30kg
-High-precision CNC machining, high coaxiality.
-Stainless steel output shaft with keyway to ensure torque transmission, dual-bearing output to ensure coaxiality and strength.
-Adjustable nut can adjust the stroke of the shock absorber according to the load.
-It can be used on an independent suspension car.
1 Set of Independent Shock Absorber
1. The encoder outlet is XH2.544 P interface; the wire length is 495mm.
2. The motor outlet is 2 metal reeds, which need to be welded by yourself. And the umber of encoder wires is 500.
3. Encoder power supply voltage is 3.3 ~ 5V, with pull-up and can be directly read by the single-chip microcomputer
