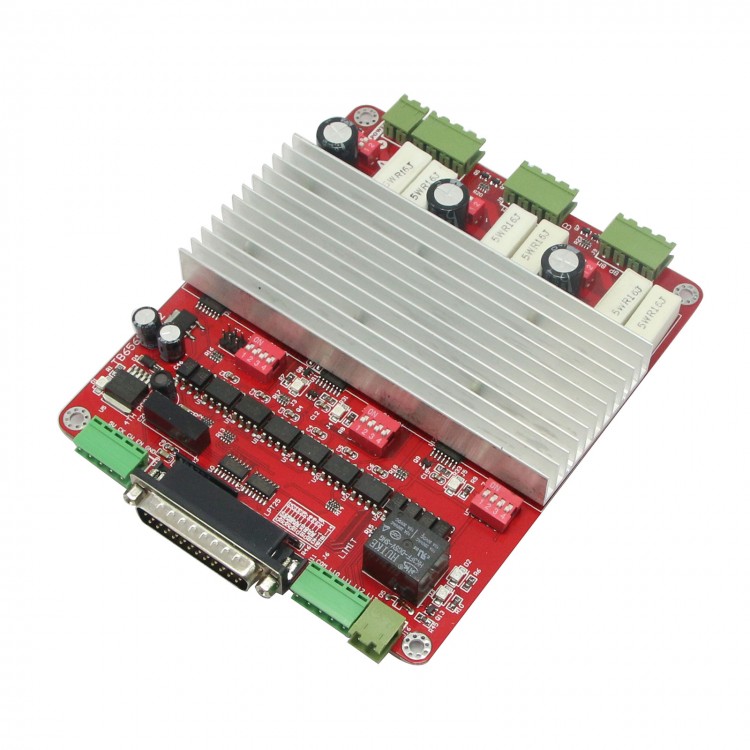

CNC TB6560 3 Axis Stepper Motor Driver Controller Board with Cable for Engraving Machine

CNC TB6560 3 Axis Stepper Motor Driver Controller Board with Cable for Engraving Machine

Description:
- This 3 axis stepper motor driver controller board adopts high-powered professional controller chip TB6560, making microcomputer applies controller function to driver board to form the smallest controller system in accordance with user’s requirements.

Features:
- Can drive any mall and medium-sized two-phase or four-phase hybrid stepping motor
- Adopts new-style bipolar constant current chopping technology, making working precision accurate, vibration small, noise low and running steady
- With limit interface
- Principle axis relay output
- Semi-flow control function
- Impulse frequency can up to 15 KHZ at most
- Supports four segmentation choices: 1, 1 / 2, 1 / 8, 1 / 16
- Comes with formal photoelectric coupler
- With 4 changeable electric current: 0.7 A, 1.75 A, 2.6 A, 3.5 A (peak value)
- Standard parallel interface, supports software MACH2, MACH3, KCAM4
- Board Diameter (L x W x H): Approx. 5.9 x 5.1 x 1 inch / 15 x 13 x 2.5 cm
- Cable Length: Approx. 55.5 inch / 141 cm

Application Field:
For processing various pattern mould
For advising, such as brand, architechture mould, badge, nameplate, display boards, doorplate, furniture decoration, etc.
For carving portrait, scenery, handwriting, sealing, etc
Suitable for any small-and-medium automatic equipment with CNC controller

Package Included:
- 3 axis stepper motor driver controller board x 1
- Cable x1
