Color Screen ZC830 High-performance 6-port Multi-port Multi-protocol QC4+PD3 for Car Desktop Charger Mobile Phone Notebook

Color Screen ZC830 High-performance 6-port Multi-port Multi-protocol QC4+PD3 for Car Desktop Charger Mobile Phone Notebook

Note: without data cable, can not be used directly with 220V, without power supply, without data Cable, can not directly insert 220V Use, please confirm before your phurcahse

Description:
- This is a charger, not a mobile power bank
- Only charger included, without power supply, without data cable, can not be used directly with 220V, without power supply

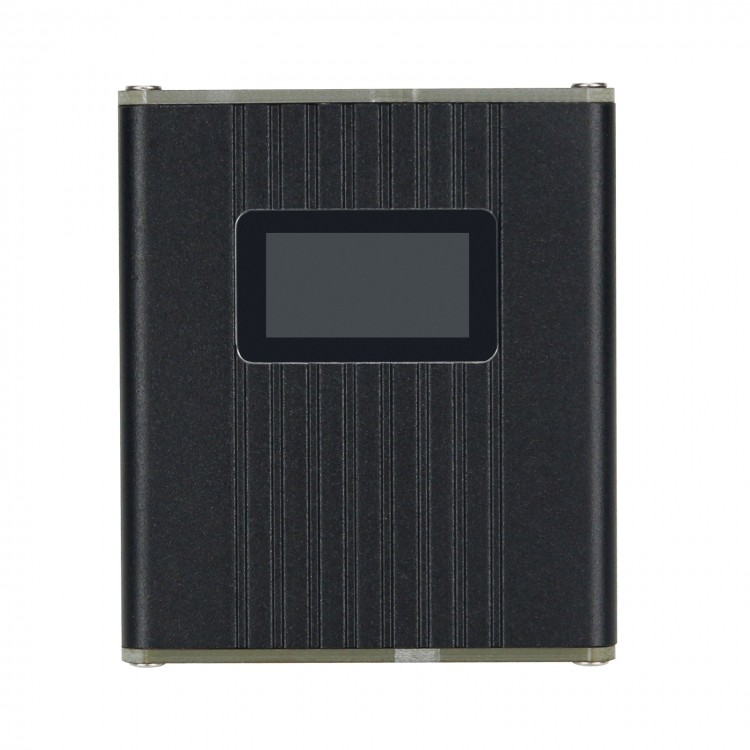

- Color display multi-function high-performance car desktop charger 6 multi-port multi-protocol support /Compatible with Huawei OPPO Apple

Specification:
- Input: DC5525 or PD, positive and negative inside and outside, 10-24V, power as large as possible, higher than 100w is good.
- Output: 3 independent SW3518S, 6 ports in total, use 3 ports for fast charging at will, plug 2 devices in the same channel for 5v2.4a slow charging.
- Pure buck output, the output voltage is always less than the input voltage.
- The maximum output power of a single channel is 100w, and the total of three channels is within 180w. 21-24V is required to output 100w.
- Protocol: QC2.0, QC3.0, QC4+, FCP, SCP22.5W, AFC, PD2.0, PD3.0, PPS, VOOC20W, DASH20W, MTKPE1.1, MTKPE2.0
- Static power consumption: At 20V input, turn on 16mA, turn off within 5mA.
- Screen: 1 inch bracelet IPS highlight high-definition screen, 160*80 resolution.
- Size: 65*55*30mm
- weight: 115g


How to use:
1)The main interface displays the input voltage and the temperature of the motherboard, and the three boxes below show the voltage, current, power, and protocol of each channel.
2)The displayed parameters are for reference only for fast charging and the accuracy is about 2%. For accurate testing, it is recommended to use a USB meter.
3)Short press the button on the main interface to switch on and off.
4)Long press on the main interface to enter the timer shutdown mode, the yellow countdown time is displayed, the default is 2 hours, and it will automatically shut down when the time comes.
5)In the scheduled shutdown mode, short press to adjust the shutdown time, and long press to exit the scheduled shutdown mode.


Parameter setting method: Press and hold the button and then plug in the power supply. After entering the setting interface, short press to switch options, long press to enter, short press to switch parameters, and long press to exit.

Remember to save and exit after all parameters are set. If you don't want to save it, just unplug it and plug it in again.

PD3.0 PPS Mode: Adjust the output PD broadcast effect, such as whether it has PPS, PPS with 5A or 3A, whether to detect EMARK line, etc.

Start Up Mode: It is the function after power-on. It works directly by default. It can be changed to work after a delay of 5-10-20 seconds, or you need to press the key to shut down to work.

Under Voltage: Under voltage protection voltage value, when the input voltage is lower than this value, it will stop working, and wait for 60 seconds to shut down. Note that the voltage needs to be higher than this value +1V to resume work.

Over Temp: Overheat protection value of the motherboard. When the temperature of the motherboard is higher than this value, it will stop working and wait for 60 seconds to shut down. Note that the temperature needs to be lower than this value -5 ℃ to resume work.
