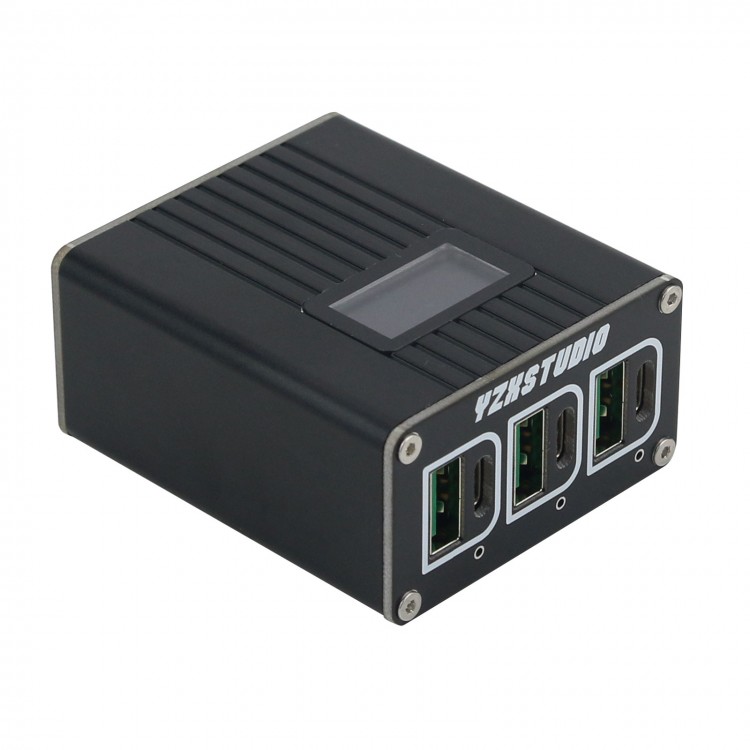

YZXSTUDIO ZC830 Car Desktop Charger Color Screen 6-Port Fits Cellphone Laptop Support Multi-Protocol

Availability: In stock, usually dispatched in 1 business day

  • Price:$52.32
  • Price in reward points: 523 Reward Points: 5
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $51.27 $50.23 $48.66 $46.56 Contact US
Quantity:

YZXSTUDIO ZC830 Car Desktop Charger Color Screen 6-Port Fits Cellphone Laptop Support Multi-Protocol

Attention:

- This is a charger, not a power bank. Its industrial aluminum profile shell is rough. Due to manual assembling, there will be scratches, the screen may be slightly skewed and slightly dusty. But it does not affect its use. Please make sure that you don't mind before purchasing. There is a layer of protective film on the surface of the screen which is difficult to tear off. It is recommended to remove the film after using.
- New type with black shell for better heat dissipation performance.
- Only a desktop charger is included in the package. There is no power supply or data line. Cannot be directly plugged into 220V for use.

About Leakage:

This type of low-voltage charger does not have a leakage problem, and the limit can only output a safe voltage of 20v. The leakage is because your input charger is not grounded. So choose a big brand with a grounded 3-plug charger to supply power to this charger and it will not leak.

Specifications:
- Volume: 65*55*30mm. Net weight: 115g
- Input: DC5525 or PD, internal positive and external negative, 10-24V, the power should be as large as possible, and the effect is better when the power is over 100w
- Output: 3-way independent SW3518S, a total of 6 ports, any use of 3 ports for fast charging, and 2 devices on the same channel for 5v2.4a slow charging
- Pure step-down output, output voltage is always less than input voltage
- The maximum output power of a single channel is 100w, and the total of 3 channels is within 180w. Output 100w needs to input 21-24V
- Protocol: For QC2.0, QC3.0, QC4+, FCP, SCP22.5W, AFC, PD2.0, PD3.0, PPS, VOOC20W, DASH20W, MTKPE1.1, MTKPE2.0
- Static power consumption: at 20V input, within 16mA when it turns on, and within 5mA when it turns off
- Screen: 1" bracelet IPS high-brightness high-definition screen, 160*80 resolution

Instructions:
- The main interface displays input voltage and motherboard temperature, and the lower 3 boxes display voltage, current, power and protocol of each channel.
- The displayed parameters are for reference only if it is fast charging, and the accuracy is about 2%. For accurate testing, it is recommended to use a USB meter.
- Short press the button on the main interface to switch the machine on and off.
- Long press the button on the main interface to enter timer shutdown mode. Yellow countdown time is displayed, the default is 2 hours, and it will automatically shut down at that time.
- In the scheduled shutdown mode, short press to adjust the shutdown time, long press to exit the scheduled shutdown mode.

Setting Parameters:
- Press and hold the button and then plug in the power supply. After entering setting interface, short press to switch options, long press to enter, short press to switch parameters, and long press to exit.
- Remember to save and exit after setting all parameters. If you don't want to save it, just unplug it and plug it in again.
- PD3.0 PPS Mode: Adjust output PD broadcast effect, such as whether to bring PPS, 5A or 3A PPS, whether to detect EMARK line, etc.
- Start Up Mode: The function after power-on works directly by default, it can be changed to work after a delay of 5-10-20 seconds, or it needs to be pressed to work when shutting down.
- Under Voltage: Undervoltage protection voltage value. When input voltage is lower than this value, it will stop working and wait for 60 seconds before shutting down. Note that the voltage needs to be higher than this value + 1V to resume work.
- Over Temp: The mainboard overheating protection value. When mainboard temperature is higher than this value, it stops working and waits for 60 seconds before shutting down. Note that the temperature needs to be lower than this value -5°C to resume work.

Package Included:
- 1 x Set of Desktop Charger

Note:
This machine uses DC5525 power supply port, please compare and confirm support. The DC5525 plug can be plugged into a figure-eight or plum blossom pole, while the 5521 plug cannot.
