Commercial Grade iMX6UL Core Board PCB Module Development Board Cortex-A7Linux ARM Multi-Serial Port
Description:

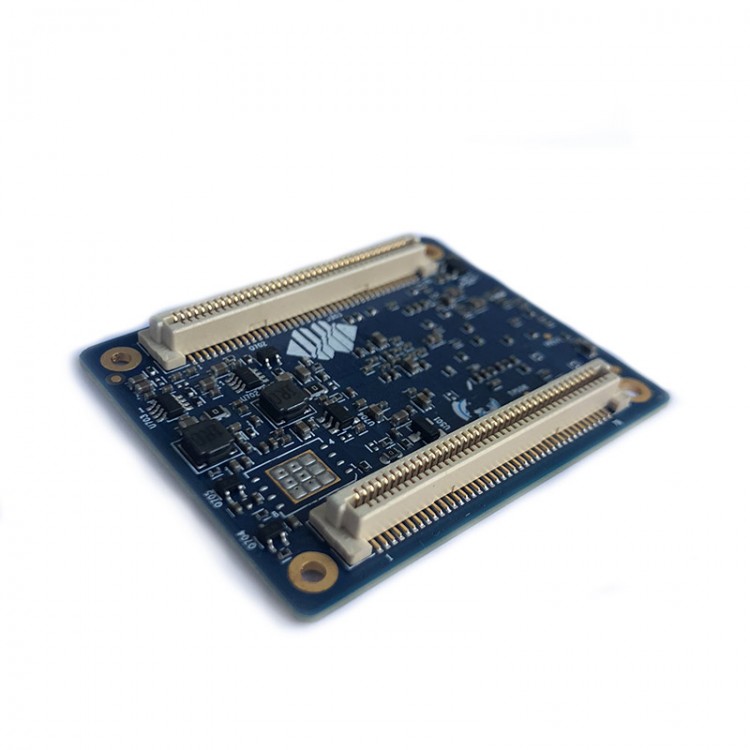

FETMX6UL-C is a core board based on the NXP (formerly Freescale) i.MX6 Ultralite Cortex-A7 architecture processor design, with a main frequency of 528MHz.The core board uses two sets of high-quality imported 80Pin board-to-board connector designs and unique power management architecture. It has lower power consumption than the core board of the ARM9 series. Maximum support 8-channel UART, 2-channel Ethernet, 2-channel CAN and other industrial-grade bus interfaces.
Features:
-Small size and flexible configuration. The length and width are only 40mm * 50mn, 6-layer PCB immersion gold process, two sets of high-quality anti-misinsertion board to board connectors.
-Very fast startup time. It takes only 4.6 seconds from the power of the core board to the QT interface to light up by the Linux system deeply optimized by FORLINX software engineers to create more possibilities. Note that the default delivery is a standard Linux system.
-Power consumption, there is no minimum, only lower! Compared to ARM9 and ARM11 series core board, FETMX6UL-C core board power consumption decreases by 50%.
-8 serial ports, 2 network, 2 CAN connections to the world. The industry supports the CPU with the highest number of serial ports, and at the same time can support 2 dual redundant networks and 2 high real-time CAN-bus.
-Media player, digital camera. Onboard IIS interface, WM8960 audio chip, music songs can be played at will, support digital camera OV9650.
-Security encryption double protection. One-level encryption: The CPU comes with a secure boot anti-stealing mechanism, which prevents third-party users from implanting Trojan horses to steal user information. Double encryption: One-level encryption: The CPU comes with a secure boot anti-stealing mechanism, which prevents third-party users from recovering and implanting Trojan horses to steal user information. Double encryption: CPU comes with ISO7816 third-party for safer transaction.
Packing List:
1 x FETMX6UL-C Core Board
