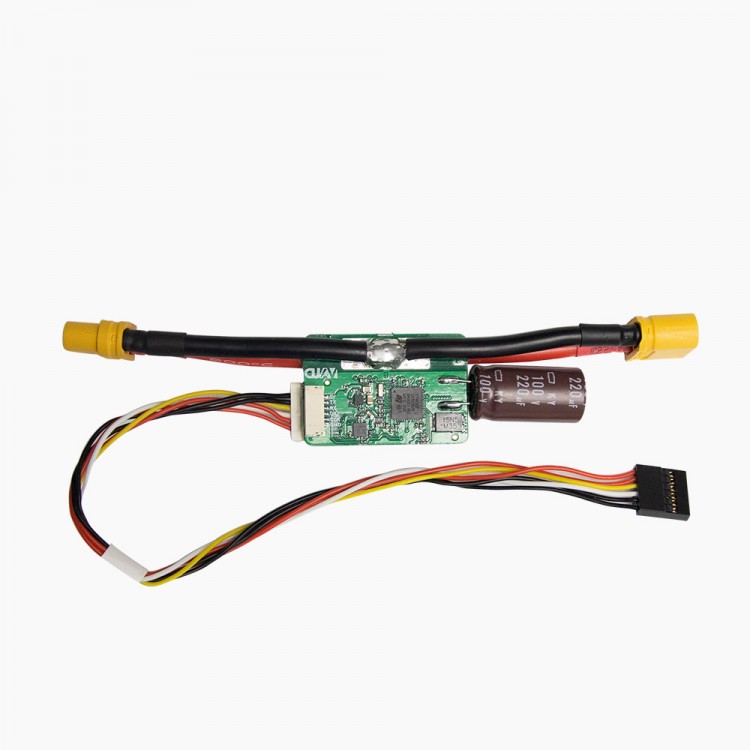

CUAV Ammeter Current Meter Input 10-62V Max 120A For Drone Aircraft X7 Series PIX Flight Control

CUAV Ammeter Current Meter Input 10-62V Max 120A For Drone Aircraft X7 Series PIX Flight Control

Main Functions:
1. Support 10-62V voltage input
2.Maximum Passing Current: Max. 120A
3. Measurement Accuracy: current accuracy 0.3A, voltage accuracy 0.15V within 80A
4. Regulated Output: can provide up to 22W 5.4V/4A power supply output for peripherals
5. Power supply indicator LED, indicating power supply voltage status
6. Future upgrades support more functions such as power consumption statistics and instantaneous power consumption push

Hardware Parameters:
- Processor: STM32F103CBU6
- Input voltage: 10-62V (2-15S Lipo)
- Maximum current: 120A (Maximum measurable current 80A)
- Voltage accuracy: ±0.15V
- Current accuracy: ±0.3A
- Resolution: 0.01A/V
- Maximum output power: 4800W/90S
- Maximum stable output power: 3600W
- 5V regulated output: maximum 5A, stable 4A
- Communication protocol: UAVCAN
- Working temperature: -20 to 100℃
- Firmware upgrade: support
- Interface type:
* IN/ OUT: XT60-M/XT60-F
* Power/CAN: 502585-0670
* Other: SMO6B-CHS-TB
- Product size: 140 x 25 x 13 mm (LxWxH)
- Support for PX4 firmware: For version above PX4 Pro V1.10.1
- Support for APM firmware:
1. For Rover 3.5.1 and above
2. For Copter 3.7 and above
3. For Plane 3.10 and above
4. For Heli3.7 and above

Attention:
Users for Copter3.6 firmware need to flash version 3.7 firmware and then flash back to version 3.6.

Package Included:
- 1 x Set of Ammeter

Note: Battery is not included in the package.
