Cubieboard4 CC-A80 High-performance A15 Mini PC Development Board A80

Availability: In stock, usually dispatched in 1 business day

  • Price:$154.17
  • Price in reward points: 1542 Reward Points: 15
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $151.09 $148.00 $143.38 $137.21 Contact US
Quantity:

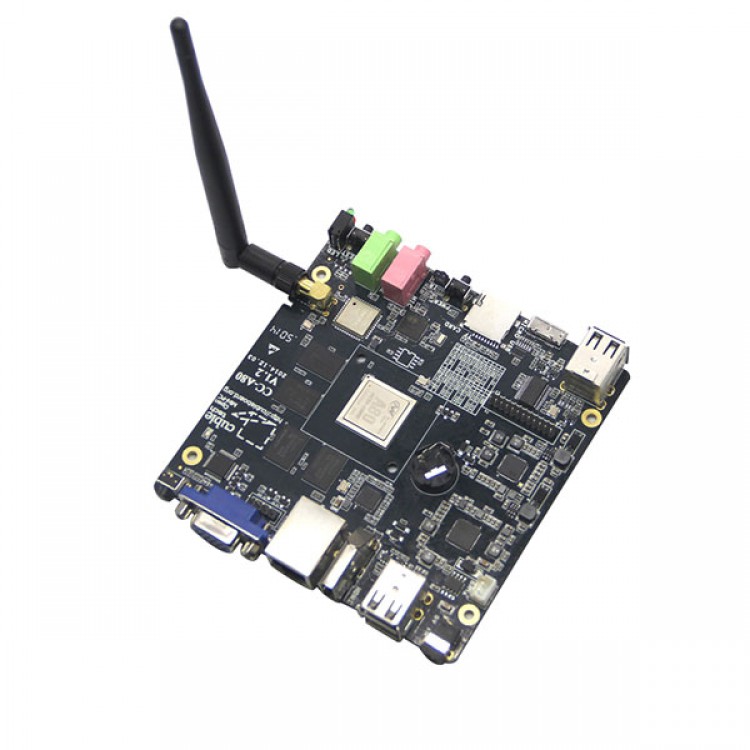

Cubieboard4 CC-A80 High-performance A15 Mini PC Development Board A80

Introduction:
1. A new generation of 64-core GPU graphics core PowerVR G6230
2. A new generation of display engine that supports H.265 hardware solution, 4K resolution codec, 3-screen simultaneous output
3. It supports more than 2GB of memory
4. It supports USB 3.0
5. It supports 16 million -pixel high-definition camera

Features:
- CPU Octa-core big.LITTLE Cortex-A15/7
- GPU 64-core IMG PowerVR G6230

Video
- Supports UHD H.264/VP8 4Kx2K@30fps video playback
- Supports multi-format FHD video decoding, including MPEG 1/2/4, H.263, H.264. WMV9/VC-1, etc
- Supports H.265/VP9 1080p@30fps video playback
- Supports H.264 HP/VP8 4Kx2K@30fps video acquisition
- Supports 3840x1080@30fps 3D decoding, BD/SBS/TAB/FP supported
- Supports RTSP, HTTP, HLS, RTMP, MMS streaming media protocols

Display
- Supports dual-channel LVDS 1920x1080@60fps
- Supports RGB LCD 2048x1536@60fps
- Supports 4-lane MIPI DSI 1920x1200@60fps
- Supports 4-lane eDP 2560x1600@60fps
- Supports HDMI 4K output
- Camera

- Integrated parallel and MIPI I/F sensor
- Supports 5M/8M/12M/16M CMOS sensor
- Supports 8/10/12-bit YUV/Bayer sensor

Memory
- Supports dual-channel DDR3/DDR3L/LPDDR3/LPDDR2, up to 8GB
- Supports Raw NAND with 72-bit ECC
- Supports eMMC V4.5
- PMIC AXP806 and AXP809

Connectivity
- 2x USB Host, USB 3.0/2.0 Dual-Role (host/device)
- Ethernet MAC
- 4x SPI, 7x TWI, 7x UART
- 4x SD/MMC
- HSIC
- PCM/I2S
- Package FCBGA 636 balls, 0.65mm ball pitch, 19mm x 19mm
- Process 28nm HPM

Package Include (not include the glue):
- Standard CC-A80, which includes
- CCA80 main board x1
- Micro 3.0  USB cable x1
- Micro 3.0 USB OTG x1
- 5G/ 2.4G antenna x1
- Screw
- Heatsink x1
- Adapter x1
- Button cell
