PCDuino 1GHz ARM Cortex-A8 Development Board for Mini PC

Availability: Out Of Stock

  • Price:$75.90
  • Price in reward points: 759 Reward Points: 8
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $74.38 $72.86 $70.59 $67.55 Contact US
Quantity:

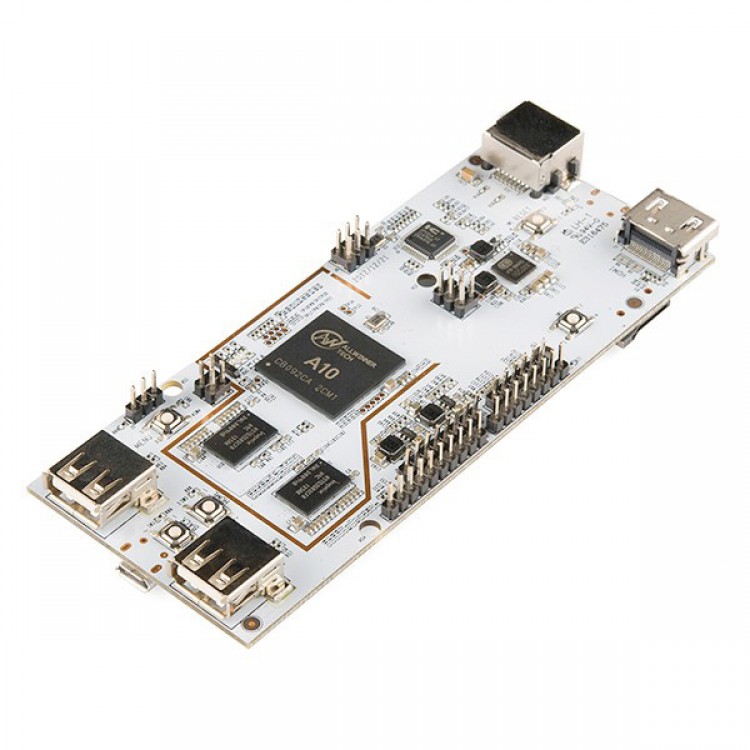

PCDuino 1GHz ARM Cortex-A8 Development Board for Mini PC

Description:
-As the field of embedded electronics gets more advanced, hobbyists and professionals are both in need of smaller and more powerful computers. We've been looking for awhile and now we've found one that we really like, not only because it's small and fast but because it's also Arduino shield compatible! The pcDuino is a high performance, cost effective mini PC platform that runs full-featured operating systems such as Ubuntu and Android ICS.

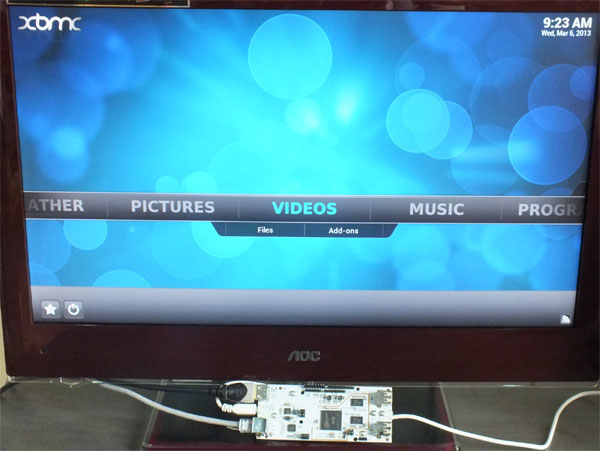

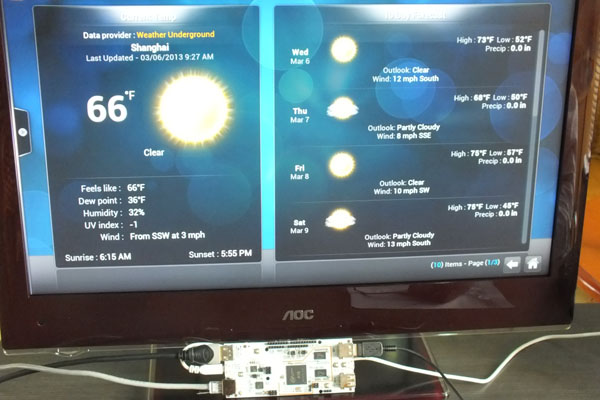

-It's easy to hook up, just connect 5V power and a keyboard and mouse. The pcDuino outputs video to any HDMI enabled TV or monitor via the built in HDMI interface. It was specifically designed to make it easy for the open source community to develop computationally demanding projects using the vast, existing catalog of Arduino Shields.
-An API has been developed for the pcDuino that allows the user to access all of the functions that you would expect using simple Arduino-style language.
-Dimensions: 125mm X 52mm





Features:
- 1GHz ARM Cortex A8 CPU
- GPU: OpenGL ES2.0, OpenVG 1.1 Mali 400 core
- 1GB DRAM
- Onboard Storage: 2GB Flash, microSD card (TF) slot for up to 32GB
- HDMI Video Output
- Linux3.0 + Ubuntu12.10 Supported
- 0.1" Spaced GPIO Headers
- RJ45 Ethernet Connection
- Power Requirements: 2A @ 5VDC
- Arduino Shield Compatible
- API to access the following interfaces:
 - UART
 - ADC
 - PWM
 - GPIO
 - I2C
 - Program in C, C++ with GNU tool chain
 - Program in Java with standard Android SDK

 Documents:
- Schematic
- User Guide
- Mechanical Drawings
