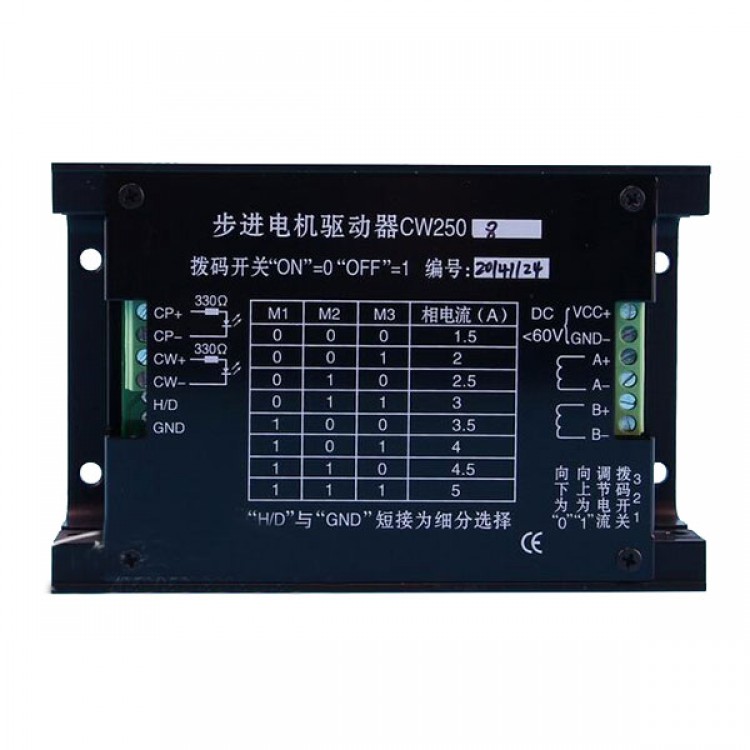

CW250 DC20V-60V 5A Engraving Machine Router Stepper Motor Driver CNC for 56 87 Step Motor

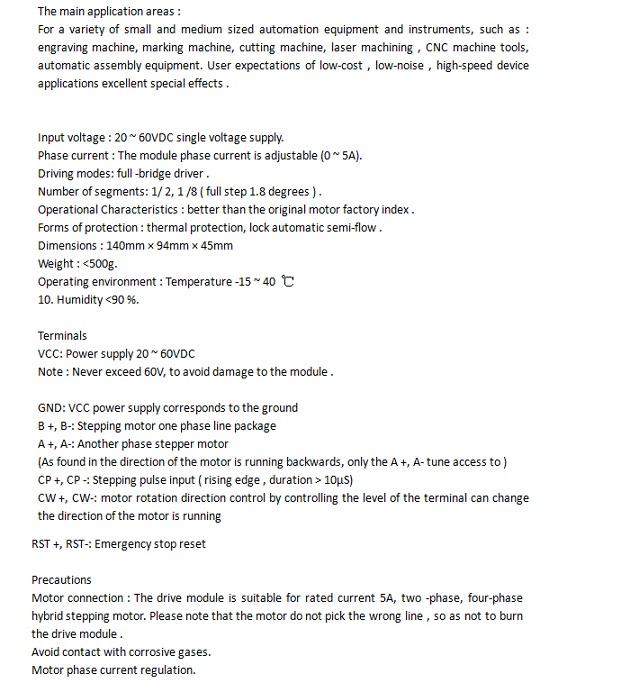

Specification:
- Input voltage: 20~60VDC single supply.
- Phase: phase current can be adjusted in this module (0~5A).
- Drive modes: full bridge driver.
- Fine fraction: 8
- Run features: factory index is superior to the original motor.
- Forms of protection: overheating protection, lock automatically half stream.
- Outside dimension: 140mmx94mmx45mm
- Weight: <500g
- Operating environment: temperature:-15~40 degree
- Humidity<90%
Application:
For Automatic equipment.such as cnc router,laser marking machine,packing machine,cnc milling machine etc.
Package included:
- 1 x Stepper Motor Driver
