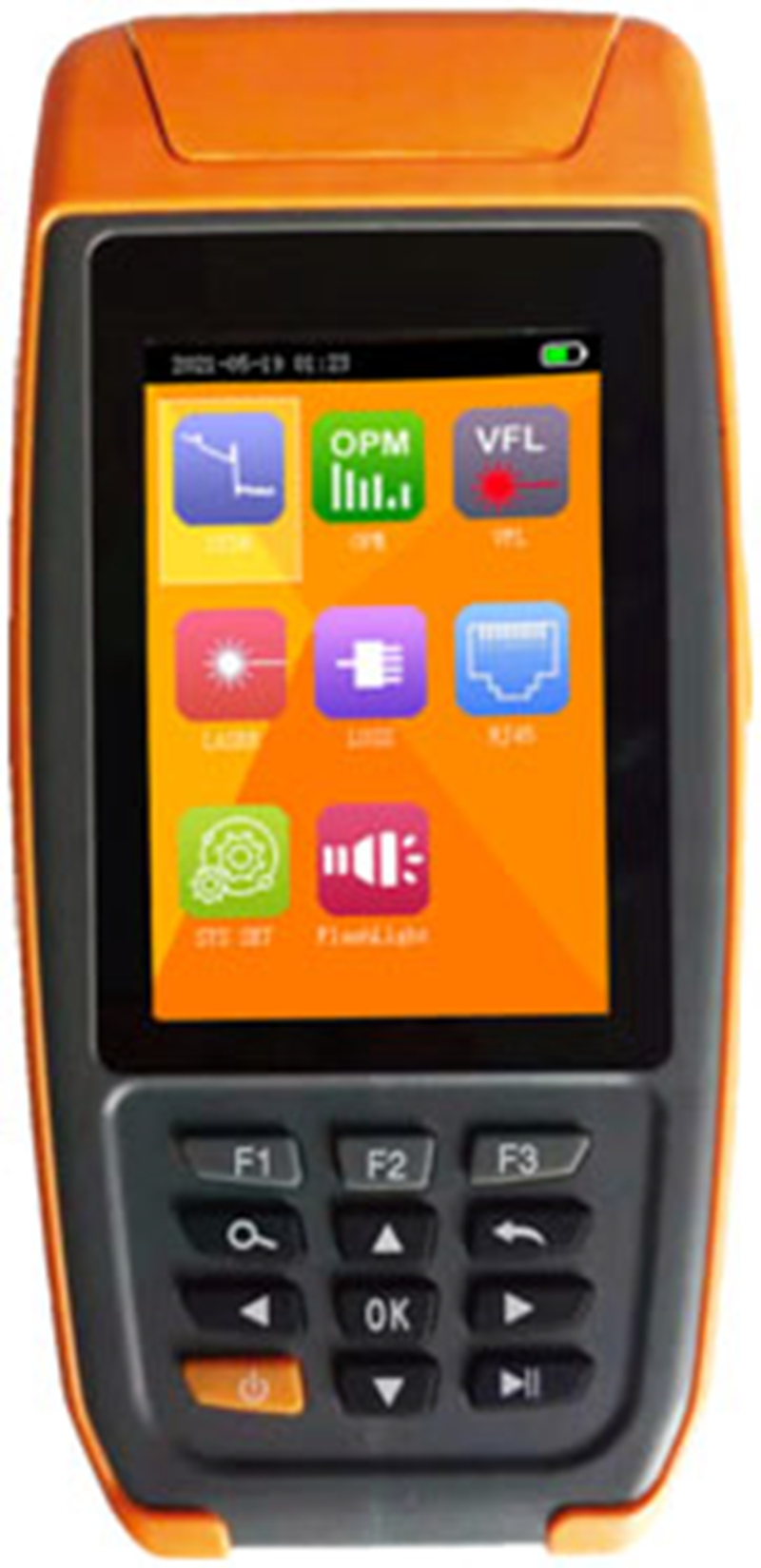

• CY-180D Optical Time Domain Reflectometer Dual Wavelength of 1310 and 1550 OTDR Light Test

CY-180D Optical Time Domain Reflectometer Dual Wavelength of 1310 and 1550 OTDR Light Test

Availability: In stock, usually dispatched in 1 business day

  • Price:$204.05
  • Price in reward points: 2041 Reward Points: 20
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $199.97 $195.89 $189.77 $181.60 Contact US
Quantity:

CY-180D Optical Time Domain Reflectometer Dual Wavelength of 1310 and 1550 OTDR Light Test

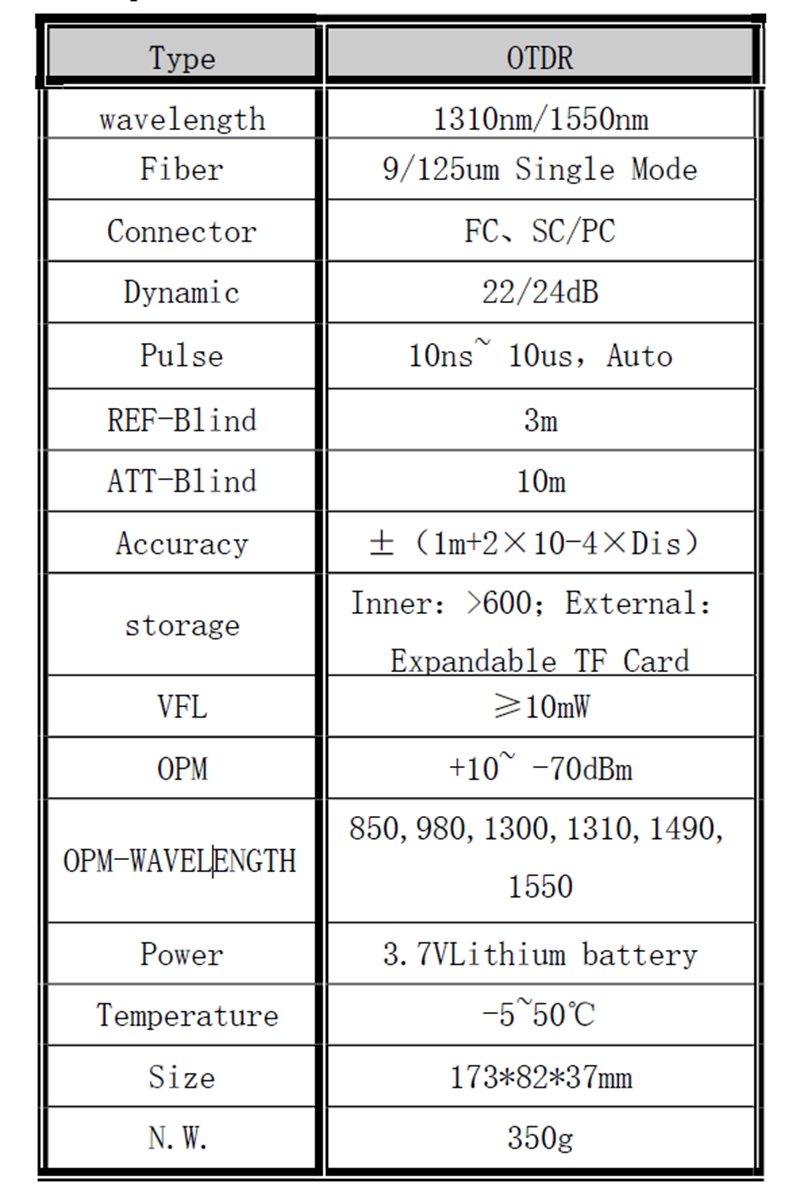

Specification:
- Type: OTDR
- Wavelength: 1310nm/1550nm
- Fiber: 9/125um Single Mode
- Connector: FC、SC/PC
- Dynamic: 22/24dB
- Pulse: 10ns~ 10us, Auto
- REF-Blind: 3m
- ATT-Blind: 10m
- Accuracy: ±(1m+2×10-4×Dis)
- Storage: Inner: >600; External: Expandable TF Card
- VFL: ≥10mW
- OPM: +10~ -70dBm
- OPM-WAVELENGTH: 850, 980, 1300, 1310, 1490, 1550
- Power: 3.7V Lithium battery
- Temperature: -5~50℃
- Size: 173 x 82 x 37mm
- N.W.: 350g

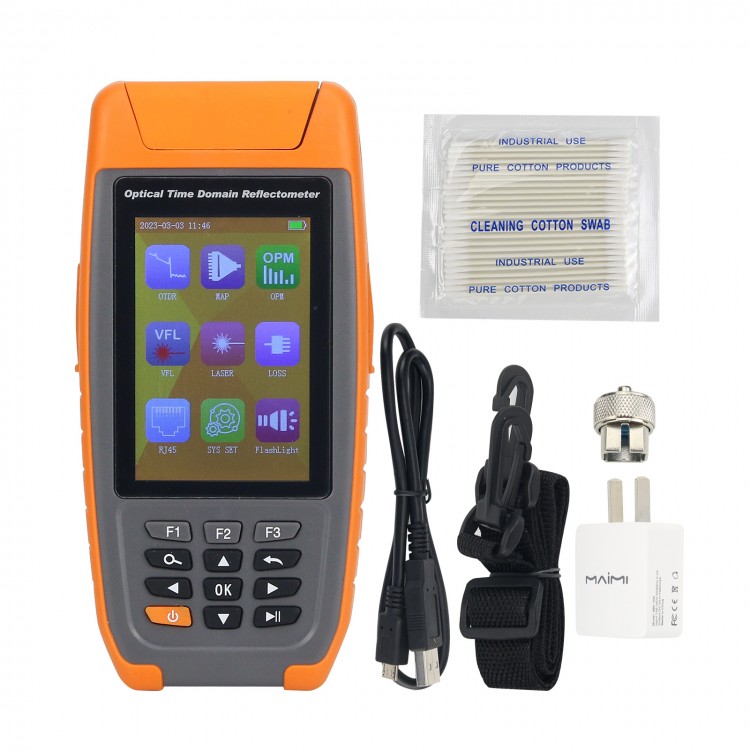

Package Included:
- 1 x CY-180D OTDR
