SM OTDR Optical Time Domain Reflectometer 1310/1550 35/33dB built in FLS OPM VFL IOLM NK6000-S1

SM OTDR Optical Time Domain Reflectometer 1310/1550 35/33dB built in FLS OPM VFL IOLM NK6000-S1

Description:
The NK6000 series optical time domain reflectometer is a high-performance multi-functional test instrument designed for FTTx networks. The product can achieve a maximum dynamic range of 45dB, ranging resolution of up to 0.05m, a test blind zone with a minimum of 0.8m, dual-wavelength, three-wavelength, four-wavelength, and single and multi-module integrated configuration modules, including The optional online test module can realize the non-destructive testing of the link light, and has a special self-diagnosis function of test results, which greatly ensures the reliability and validity of the test results.

The product adopts dual touch and key operation modes. The product has a rich external interface. It can realize remote control through Ethernet interface, and can also realize external U disk, printer and PC data communication through two different USB interfaces.

Applications:
It is mainly used to measure the length, loss and connection quality of all kinds of optical fibers and cables, and can be widely used in engineering construction, line maintenance and testing, emergency repair, and the development and production of optical fibers and cables.

Features:
• For FTTx networks
•High performance test
- 5.8 inch color TFTLCD display,
- Touch/ key dual operation
- Dynamic range:. 35/33dB
- Less than 0.8 meters ultra
- Short event blind area
- testing optical fiber jumper freely..
- Link optical nondestructive testing
- Signal optical detection function
- (Effective protection of APD)

•Multifunctional test - Standard configuration OTDR.
- Stable laser source
- Visual red light fault location (VFL)
- Optical power meter (OPM)

•Multi-functional test - high configuration
- Intelligent Optical Link Mapper [iOLM]
- Optical fiber end face detection
- Optical loss test
- Fault location

•Convenient operation
- One key automatic test
- Unique diagnostic function for test
- Multi wavelength simultaneous testing function
- Ethernet Remote control

•Convenient data processing
- English and Chinese input function
- Automatic data storage
- SOR Batch processing
- Remote upgrade function
- IOT Cloud Platform soon

•High reliability
- 20h Super long standby
- 1.5 meter drop test
- Waterproof and splash proof
- Operating temperature -10℃~50℃

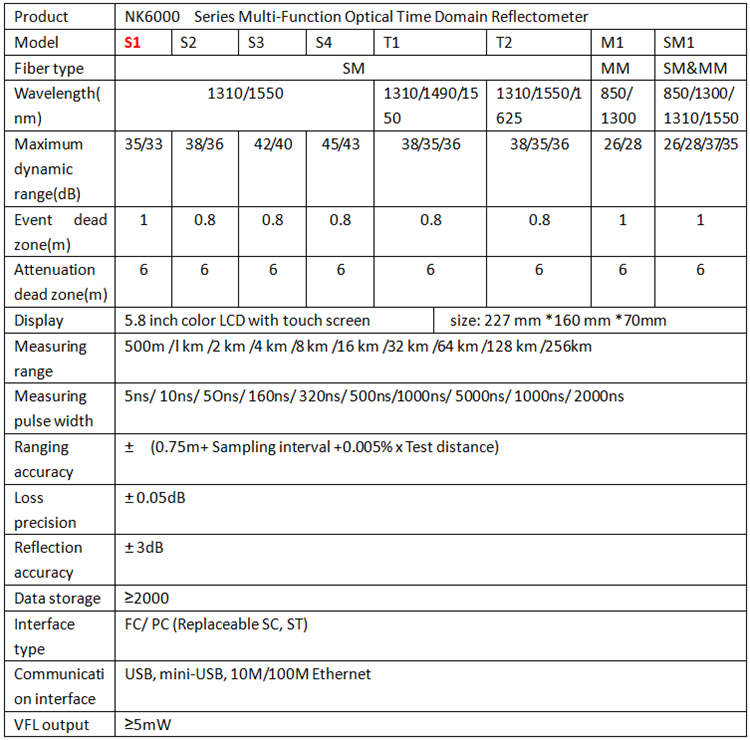

Parameters:


Package Included:
- 1 x OTDR host
- 1 x AC/DC power adapter
- 1 x Cortical handle
- 1 x U disk (containing client simulation analysis software)
- 1 x Touch pen
- 1 x Data line
- 1 x OTDR SC Transfer interface
- 1 x OPM SC Transfer interface
- 1 x User's Manual
- 1 x Test Report
- 1 x Warranty card and Certificate
- 1 x Special backpack for instrument (containing suspenders)
