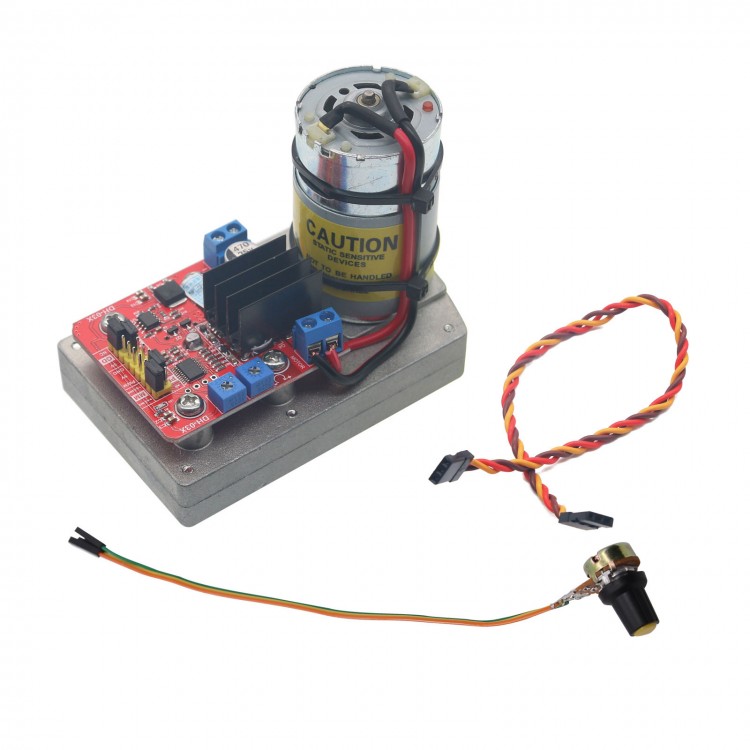

DC 12V/ 24V DH-03X Large Torque Alloy Servo 380kg/cm 160A Mechanical Arm for Robot RC

Availability: In stock, usually dispatched in 1 business day

  • Price:$34.13
  • Price in reward points: 341 Reward Points: 3
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $33.45 $32.76 $31.74 $30.38 Contact US
Quantity:

 DC 12V/ 24V DH-03X Large Torque Alloy Servo 380kg/cm 160A Mechanical Arm for Robot RC

Specifications:

- Voltage:12-24V
- Np load current: <500mA
- Max torque:
380kg.cm(24V)
3648N.cm(24V)
190kg.cm(12V)
1824N.cm(12V)
- Angular velocity: 0.5s/60 degree(24V)  1.0s/60 degree(12V)
- Rotate angle: max 300 degree
- Input mode: PWMIN/ADIN
- Pulse signal input range:0.5ms-2.5ms
- Voltage signal input range: 0V to +5V
- Accuracy: 0.32 degrees
- Weight: 530g
- Gear: steel
- Size: 95.5mm X 60.5mm X 102.6mm
