Differential Isolation Module Voltage Protection For LOTO Oscilloscope Isolated Input IDM01

Availability: Out Of Stock

  • Price:$27.72
  • Price in reward points: 277 Reward Points: 3
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $27.17 $26.61 $25.78 $24.67 Contact US
Quantity:

Differential Isolation Module Voltage Protection For LOTO Oscilloscope Isolated Input IDM01

Description:

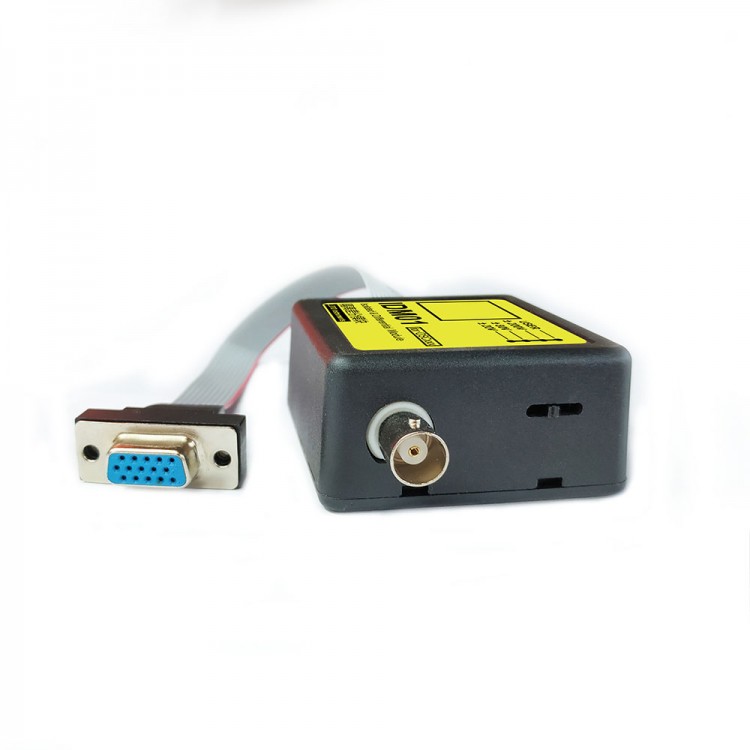

The module IDM01 is an active probe that could isolate differential input. Its input interface is BNC and output interface is VGA with flat wire. The input signal and output signal are totally isolated, and the input is differential.

IDM01 could be used for LOTO oscilloscope. When plugging IDM01 to scope for LOTO by the VGA interfaces, the channel B of oscilloscope will become isolated differential input.

IDM01 is single-channeled, there are 4 measuring range for users to choose, namely±20V, ±80V, ±200V, and ±800V. If you need to customize measuring range, for example, to collect millivolt-level signals without measuring high-voltage signals, you can call to carry out proportional customization. If needed, please contact us for more details.

IDM01 has bandwidth of 50KHz.



When and Where to Use it?

IDM01 aims at the following problems:
1. Need to measure high voltage, but worried about damaging computer and oscilloscope.
2. The tested circuit is not grounded, can't make sure if connecting scope's ground to tested ground is safe, scope's ground and tested ground is not even.
3. If the tested point has high common mode voltage, it would exceed the oscilloscope's measuring range without differential input.
4.When the tested signal is differential, and there is no ground lead.

No need to buy additional Probe.

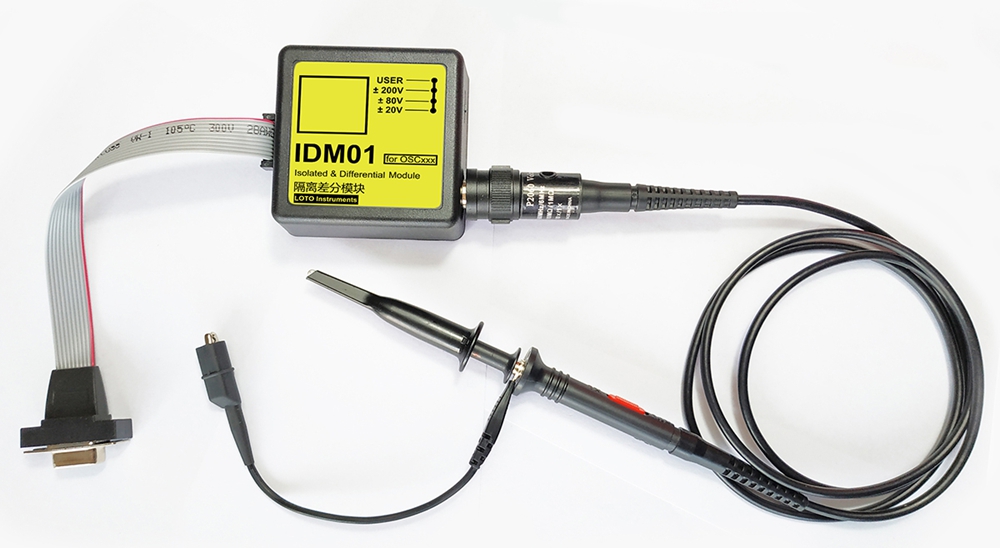

IDM01 is as above picture shows, full plastic housing provides safe insulation in case of accidentally operation errors. The price only include the IDM01 itself, no other accessories are included. If you have already bought any oscilloscope for, the X1/X10 probes in box could be used with IDM01, no additional probes needed, as the following picture shows.

Alligator clip Compatible:

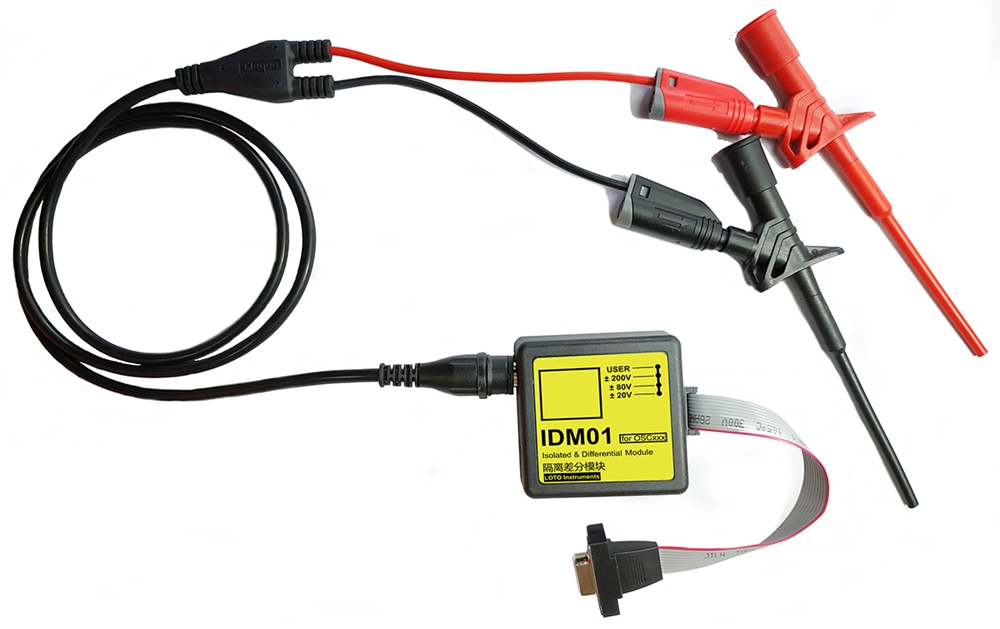

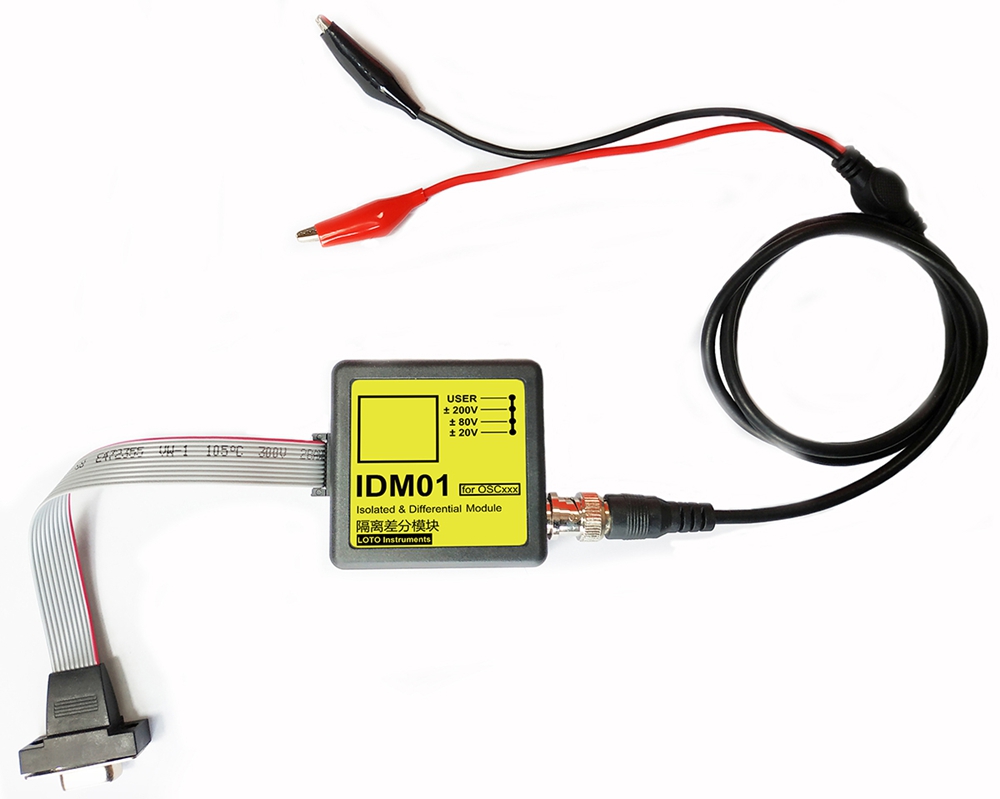

As following picture shows, you can use the wire with alligator clip on IDM01. Be careful not to touch metal part with bare hand, operate with caution.


High Voltage Probe, Available to Buy Separately:

Users could buy the high voltage probe separately, which has better insulation and protection. Use with more ease. If needed, please contact us to pay extra money.

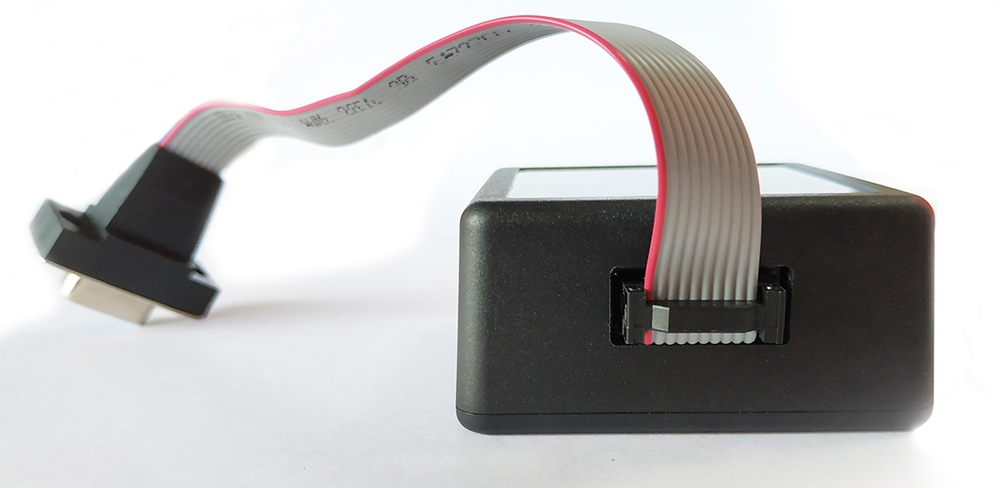

DE-15 Interface, Easy Connection:

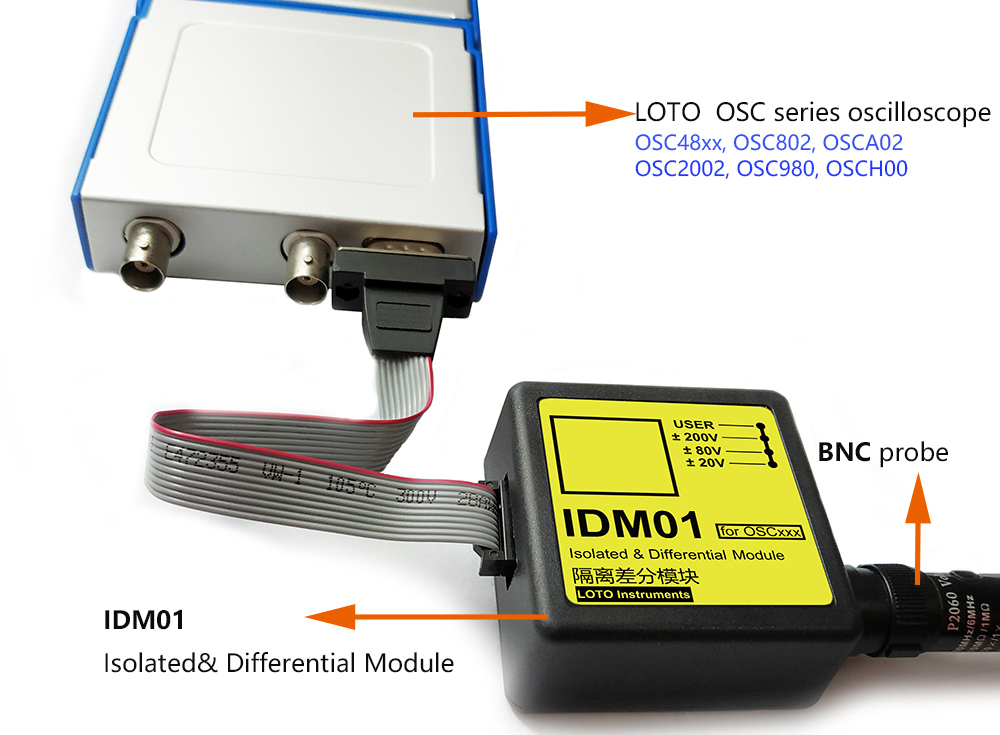

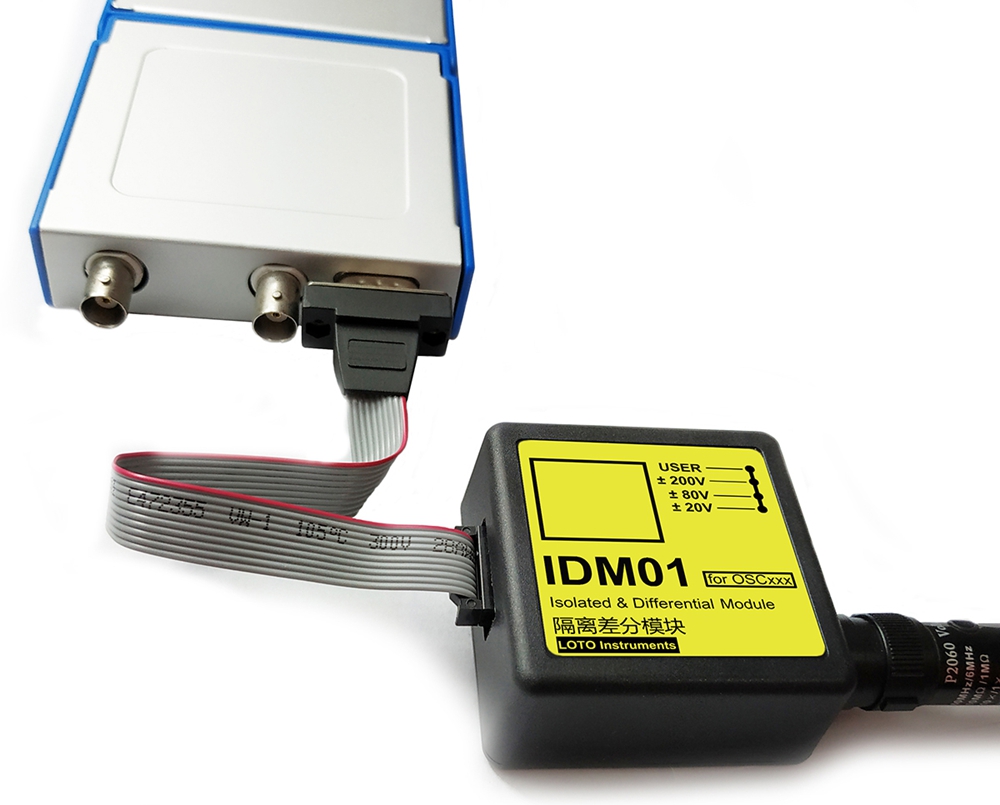

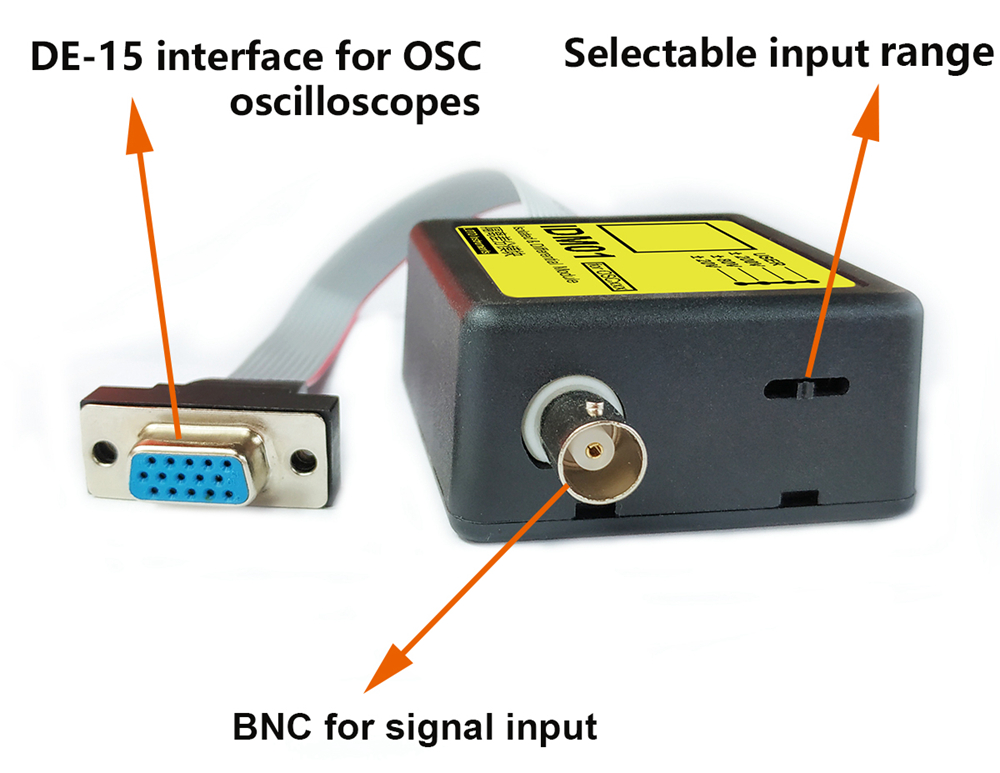

IDM01 plugs to LOTO oscilloscope by the DE-15 interface, which we usually call VGA, as the following picture shows.


Video Demonstration and Instruction:

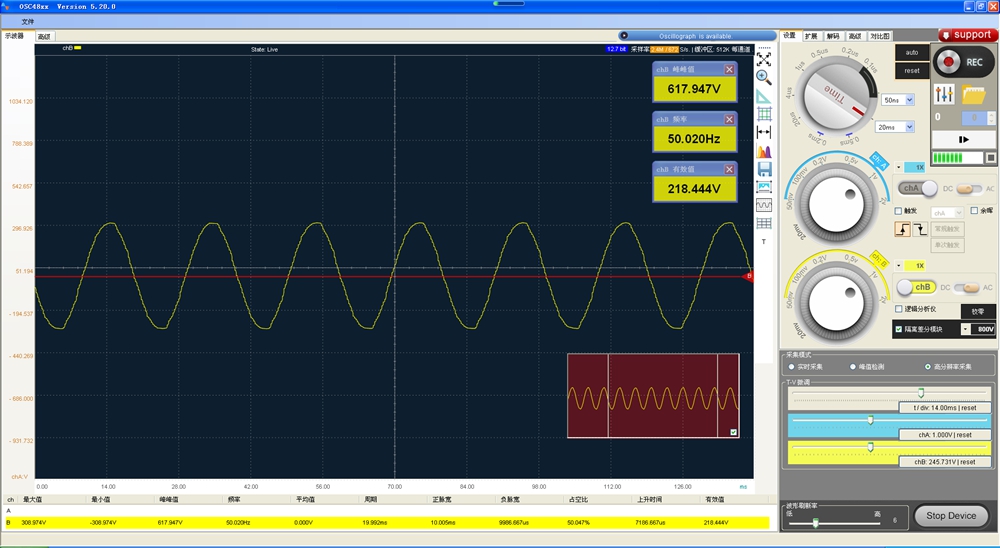

This video demonstrates how to test 220V commercial power supply with IDM01 and 100:1 probe.
https://www.bilibili.com/video/av68337909/

Package Included:

- 1 x Isolation Module

Note: Other items pictured are not included, for demonstration purposes only.

FAQ:

Q: Is IDM01 compatible to all oscilloscopes for LOTO?
A: Yes, IDM01 could be used with any oscilloscope for LOTO.

Q: Can I use it to test commercial power supply?
A: Yes. With IDM01, you can test commercial power and voltage up to 800V without worry about damaging scope and computer.

Q: Can IDM01 be used alone? And how many channels does it have?
A: The IDM01 could only be used with oscilloscope for LOTO and IDM01 has 1 channel.
