IDM03 Active Differential Isolation Module Bandwidth 300KHz Suitable For LOTO Oscilloscope OSC48xx
Version Comparison:
- IDM01: Bandwidth of IDM01 is 50KHz.
- IDM02: Bandwidth of IDM02 is 100KH. Other parameters are the same as IDM01.
- IDM03: Bandwidth of IDM03 is 300KHz. Other parameters are the same as IDM01.
Description:
The

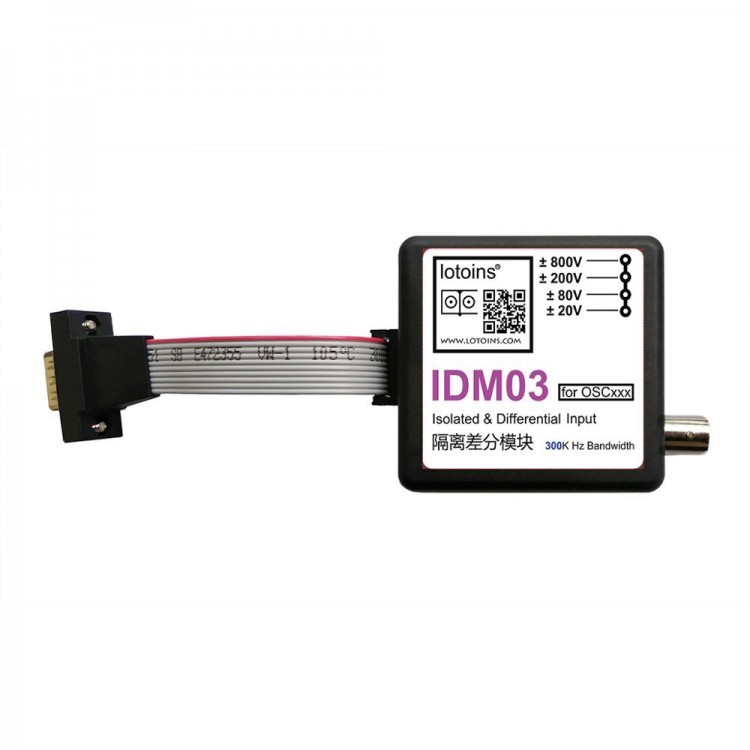

module is an active probe that isolates differential input. Its input
port is a BNC interface, and its output port is a flat-line VGA
interface. The input and output are completely isolated, and the input
itself is differential. It can be used with any USB oscilloscope from
LOTO. When in use, insert VGA extension interface of the OSCXXX
oscilloscope through the VGA interface, and the input channel B of the
oscilloscope can be turned into an isolated differential input.
The
module has only one input, and you can select 4 input levels through
the DIP switch, which are ±20V range, ±80V range, ±200V range, and ±800V
range.
Adopt a full plastic shell to avoid human hands contact
with strong electricity when measuring high voltage. It fits LOTO OSC
series, including OSC48xx, OSC802, OSCA02, OSC2002, OSC980, OSCH00.
Aims at the following problems:
1: The circuit under test is a strong current, do not isolate it to worry about damaging your equipment and computer.
2:
The circuit under test is a hot ground, and it is impossible to
determine whether the ground under test can be connected to an
oscilloscope ground, or it is clear that the ground under test and the
oscilloscope ground are not equipotential.
3: The measured point has a
relatively high common-mode voltage, which exceeds the input range of
the oscilloscope without differential.
4: The signal under test is a differential signal, no ground wire is provided, only a pair of differential signal wires.
Interface Introduction:
* DE-15 port: connects OSC oscilloscope
* Tested signal input port
* 4 input range selection switch
Uses:
-
If you have purchased LOTO’s OSCXXX series USB oscilloscopes, then your
X1/X10 probes can be used directly with our module without purchasing
additional probes. When using it, please use X1 gear instead of X10
gear.
- You can also use standard wiring of signal generator, but
because the connector is exposed for this kind of wiring, you need to be
careful not to touch it directly with your hands when measuring high
voltage for safe operation.
- Or use high-voltage dedicated wiring
with safety protection for probes. This kind of wire wraps all the
interfaces in a very tight insulation and can be operated with
confidence.
- You can also purchase a universal test line in our store separately.
Package Included:
- 1 x Set of Differential Isolation Module
