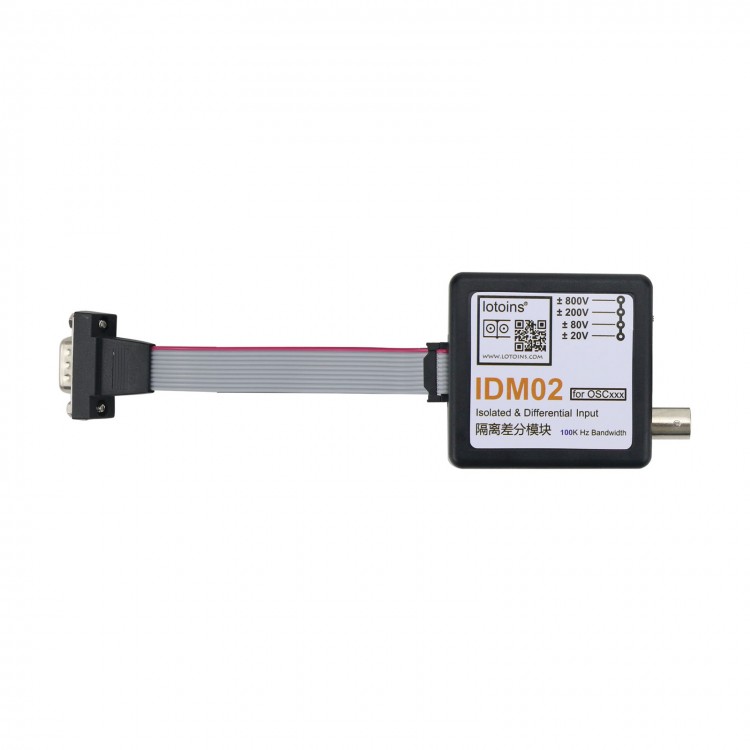

IDM02 Active Differential Isolation Module Bandwidth 100KHz Suitable For LOTO Oscilloscope OSC48xx

IDM02 Active Differential Isolation Module Bandwidth 100KHz Suitable For LOTO Oscilloscope OSC48xx

Version Comparison:
- IDM01: Bandwidth of IDM01 is 50KHz.
- IDM02: Bandwidth of IDM02 is 100KHz. Other parameters are the same as IDM01.
- IDM03: Bandwidth of IDM03 is 300KHz. Other parameters are the same as IDM01.

Description:
The module is an active probe that isolates differential input. Its input port is a BNC interface, and its output port is a flat-line VGA interface. The input and output are completely isolated, and the input itself is differential. It can be used with any USB oscilloscope from LOTO. When in use, insert VGA extension interface of the OSCXXX oscilloscope through the VGA interface, and the input channel B of the oscilloscope can be turned into an isolated differential input.

The module has only one input, and you can select 4 input levels through the DIP switch, which are ±20V range, ±80V range, ±200V range, and ±800V range.

Adopt a full plastic shell to avoid human hands contact with strong electricity when measuring high voltage. It fits LOTO OSC series, including OSC48xx, OSC802, OSCA02, OSC2002, OSC980, OSCH00.

Aims at the following problems:
1: The circuit under test is a strong current, do not isolate it to worry about damaging your equipment and computer.
2: The circuit under test is a hot ground, and it is impossible to determine whether the ground under test can be connected to an oscilloscope ground, or it is clear that the ground under test and the oscilloscope ground are not equipotential.
3: The measured point has a relatively high common-mode voltage, which exceeds the input range of the oscilloscope without differential.
4: The signal under test is a differential signal, no ground wire is provided, only a pair of differential signal wires.

Interface Introduction:
* DE-15 port: connects OSC oscilloscope
* Tested signal input port
* 4 input range selection switch

Uses:
- If you have purchased LOTO’s OSCXXX series USB oscilloscopes, then your X1/X10 probes can be used directly with our module without purchasing additional probes. When using it, please use X1 gear instead of X10 gear.
- You can also use standard wiring of signal generator, but because the connector is exposed for this kind of wiring, you need to be careful not to touch it directly with your hands when measuring high voltage for safe operation.
- Or use high-voltage dedicated wiring with safety protection for probes. This kind of wire wraps all the interfaces in a very tight insulation and can be operated with confidence.
- You can also purchase a universal test line in our store separately.

Package Included:
- 1 x Set of Differential Isolation Module
