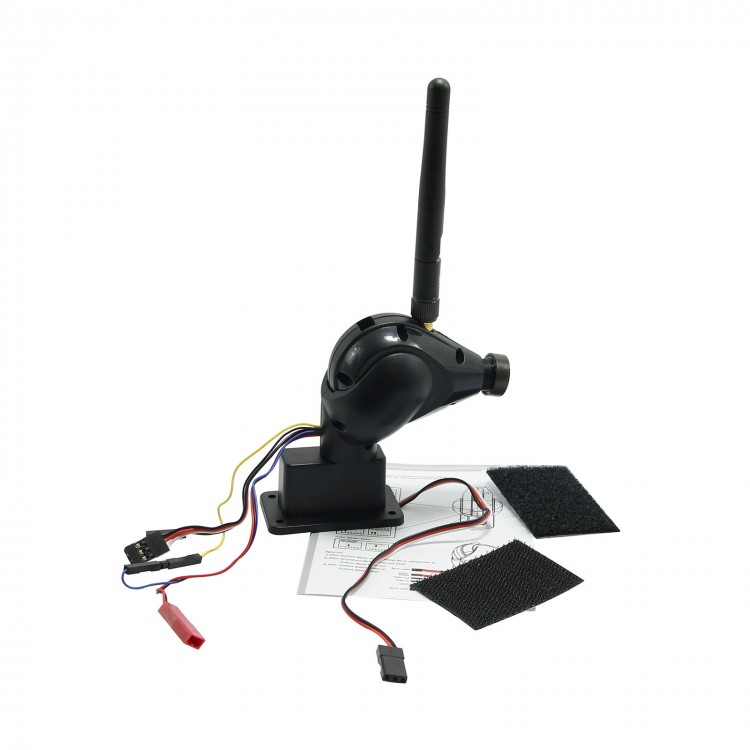

FC108 FPV 5.8Ghz High Definition Video Camera Transmitter Servo 976*496P 32ch OSD Black
Specification:
Camera:
- Effective pixel array: 976(H) x 496(V)
- Pixel size: 5.00 um x 7.4 um
- Effective image area: 4.88 x 3.67mm
- Optical format: 1/3inch, RGBBayerfilter
- Dynamic range: 63.5dB
- SNR: 46.4dB
- Video output: 1v+-0.2vp-p/75ohm
- TV system: PAL/NTSC
- Operating voltage: +6.0V---30V
RF transmitter:
- Transmitting frequency: ISM 5.6GHz-5.95GHz 32CH
- Supply current: 110mA+-10Ma
- Video input level: 1V+-0.2Vp-p/75ohm
- Audio input level: 0.5-2.0Vp-p/10k ohm
- TV System: PAL/NTSC/SECAM (AUTO)
- RF output power: 200mW (23DbM+-0.5dBm)
- Antenna connector: SMA connector
- Operating temperature: -10---85degree
Servo:
- Control system: Positive PWM control (1500 usec Neutral)
- Operation voltage range: 4.8V-6.0V
- Operation temperature range: -20---60degree
- Standing torque: 1.0kg.cm
- Speed: 0.14 sec/60 deg at no load
- Idle current: 70mA at stopped
- Running current: 390mA at no load
- Dead band width: 5usec
- Circle: 15000 times
- Direction: anti-clockwise/ pulse travel 1500 to 900 usec
- Driver type: FET drive
- Motor type: Coreless
- Potentiometer type: Indirect
- Operation travel: 60+-10degree
- Gear material: 150mm
- Case material: 26AWG, Futaba universal
- Connector wire length: negative
- Connector wire gauge: positive
- Wire info: signal
- Amplifier type: analog
