Fire Debugger STM32 Emulator ARM Downloader DAP Programmer Support JTAG SWD
DAP Emulator manual: Click here
Specification:
- Function: Download program, hardware emulation and debug online
- Interface: JTAG interface, support JTAG and SWD download
- OS: Support XP/WIN7/8/10 32/64Bit
- Software: MDK/IAR download
- Chip: Support ARM Cortex-M seriel SCM, Cortex-M0/1/2/3/4/7;STM32 series, K60, Cortex-M0+, LPC M3/4

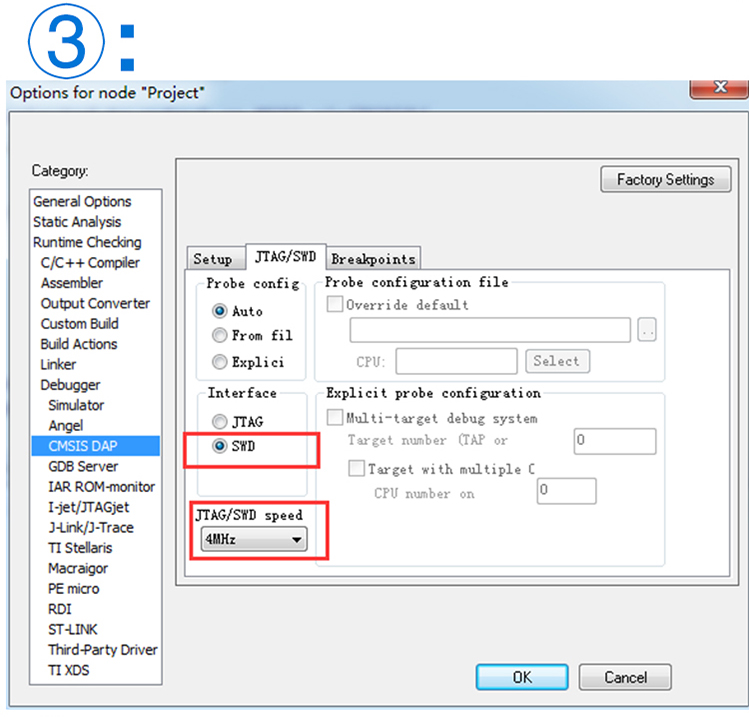

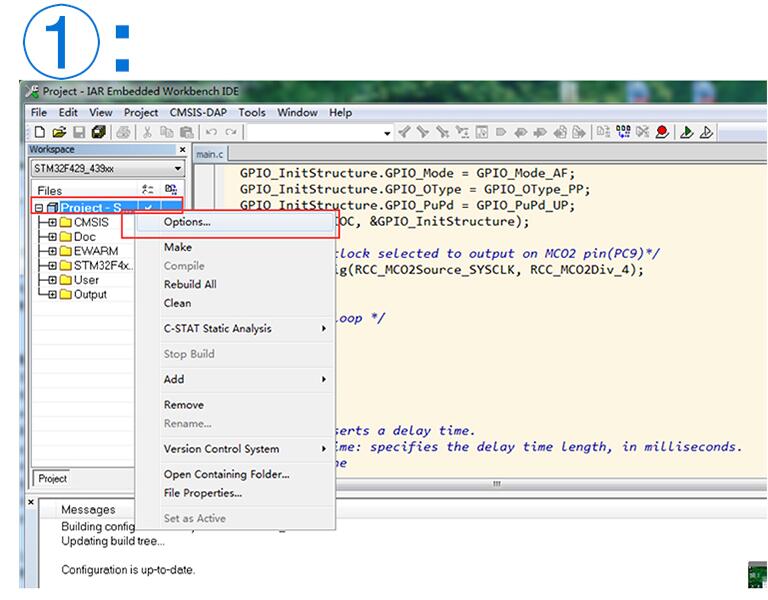

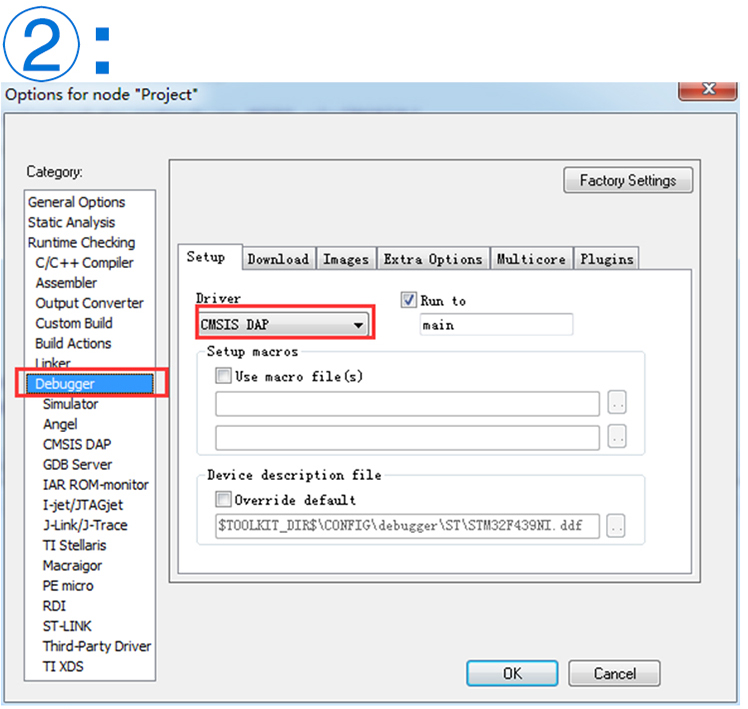

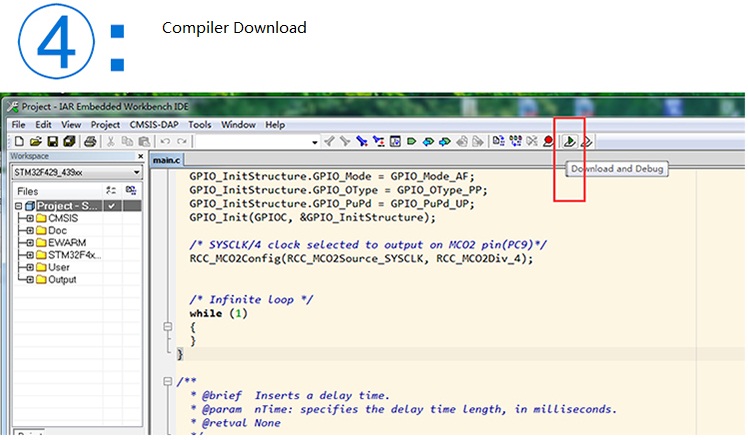

Configuration method in IAR:
Package list:
- 1 x DAP Emulator
- 1 x 20PIN CABLE
- 1 x USB cable
