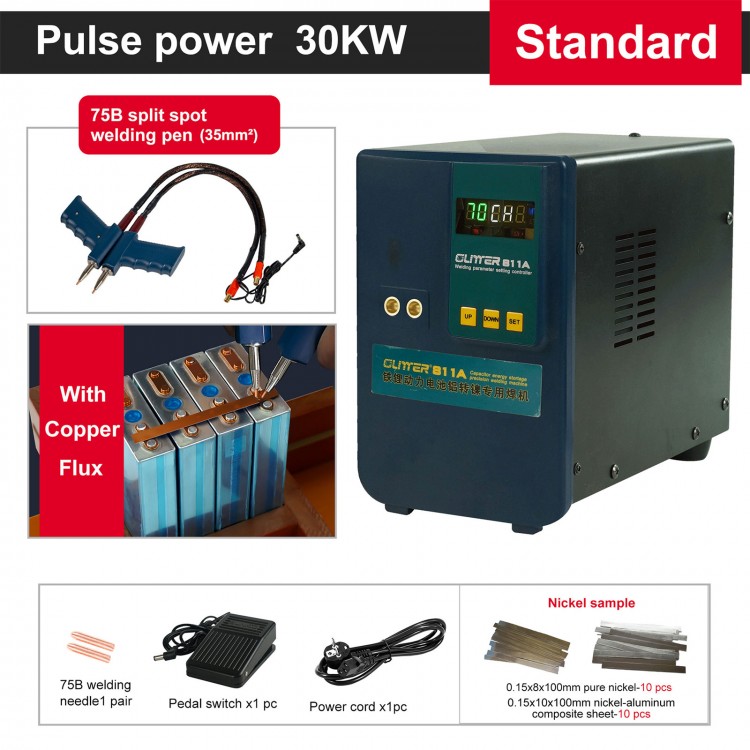

G811A Industrial Spot-Welding Machine 30KW Designed for Welding Copper & Aluminum & Nickel Conversion
Feature:
- Support copper sheet welding: 0.15~0.3mm (with flux)
- The peak welding power: 30KW
- Aluminum to Nickel welding: welding thickness: 0.1~0.3mm
- Cost saving: 1.5% price of special laser welder for nickel transfer maximize the profit of battery processing.
Parameter:
- Pulse power: 30KW
- Spot welding pen type: 25mm2 welding pen
- Copper to Copper (with flux): 0.15~0.2mm
- Copper to Stainless Steel: 0.15~0.2mm
- Copper to Aluminum: 0.1~0.15mm
- Peak welding energy: 456J
- Power supply: 100~240V (AC)
- Output voltage: 5.6~6.0V (DC)
- Charging current: 10~20A
- Energy grade: 0~99T (0.2ms/T)
- Welding mode: AT: automatic induction/MT: foot-operated
- Pulse time: 20ms
- Welding tool: Mobile pen spot welding/Push down spot welding (Optional)
- AT Preloading delay: 300ms
- Charging time: ≤18 minutes
- Dimension: 24 x 14 x 36cm
- Net weight: 8kg
- Packaging size: 36 x 22 x 36cm
Application:
- Battery (copper electrode)
- LFP battery (copper electrode)
- LFP battery (aluminum electrode)
- High-rate battery pack (copper electrode)
- Copper Mesh
- Copper conductor
Package Included:
- 1 x 811A 30KW spot welder
- 1 x Pedal switch
- 1 x S-75A split spot-welding pen (35mm2)
- 1 x Manual wrench
- S-75A spot welding electrode
- 1 x Power cord
- 10 x PCS 0.15x8x100mm Pure Nickel
- 10 x PCS 0.15x10x100mm Nickel-aluminum Composite Sheet
Note:
- Battery and flux are not included.
