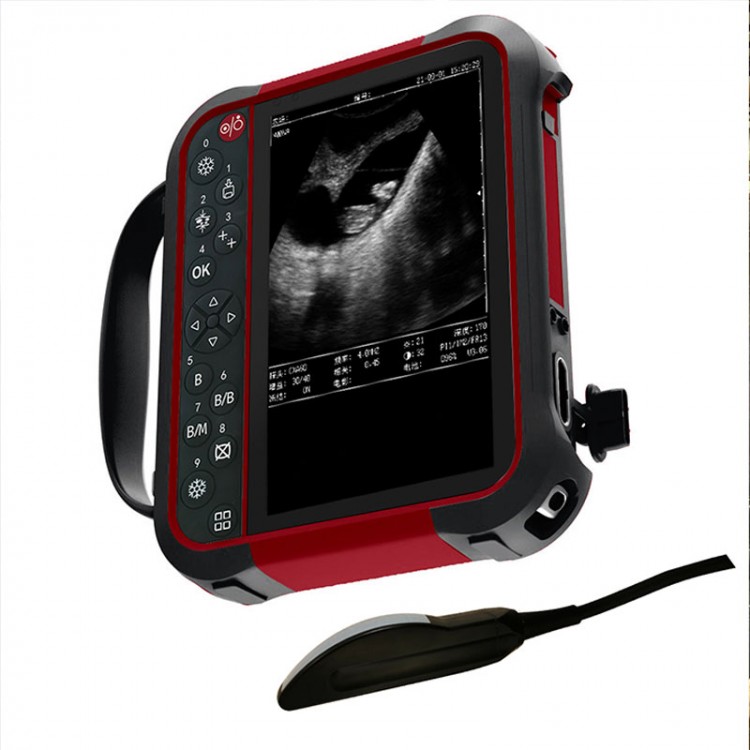

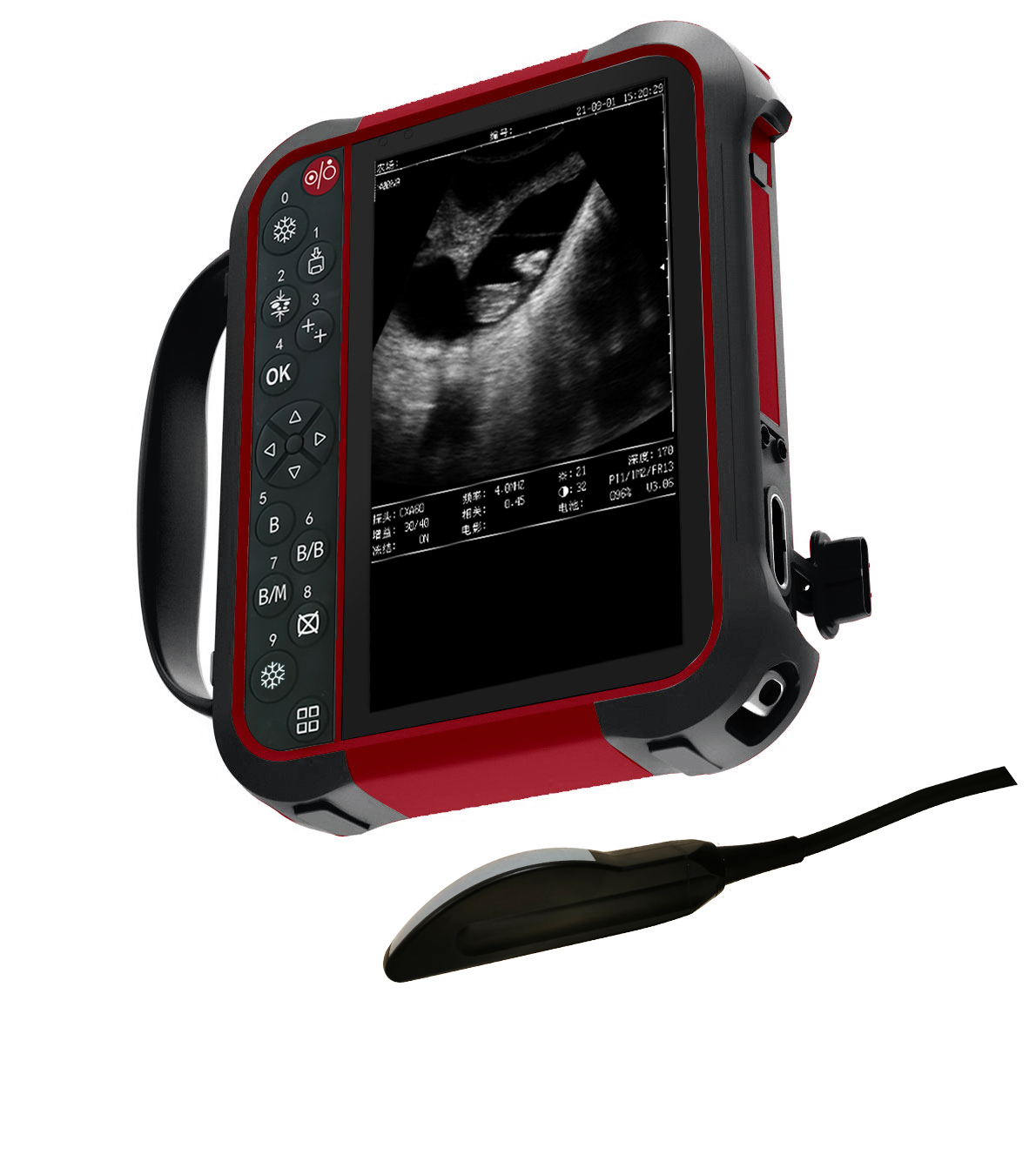

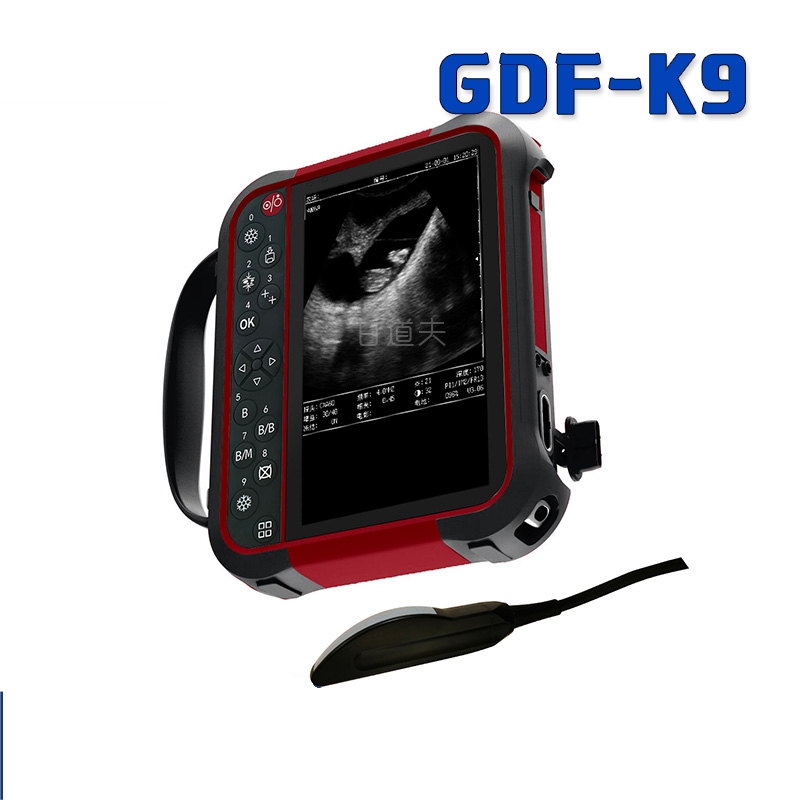

GDF-K9 Waterproof Cow Veterinary Ultrasound Scanner with 8.0inch HD Display and Rectal Convex Array Probe

GDF-K9 Waterproof Cow Veterinary Ultrasound Scanner with 8.0inch HD Display and Rectal Convex Array Probe

Features:
- the company's new B-ultrasound for animals adopts a new type of hardware design and a new version of software operating procedures, which is simple to operate and easy to use;
- it can be equipped with various types of probes for detecting pregnancy and diagnosing reproductive system diseases of cattle, horses, donkeys, sheep, camels, pigs and other animals;

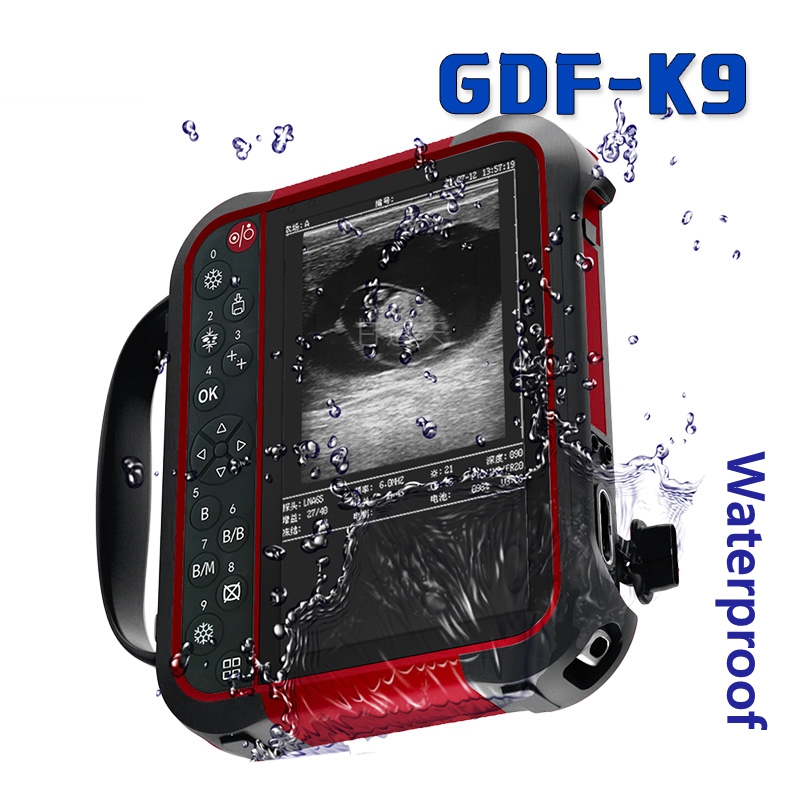

- the whole machine is firm and durable, and the host and probe are all waterproof;
- the screen size is 8 inches, and the screen ratio is 16:9;
- the probe is designed and manufactured by 32 core waterproof integrated forming, with 96 array elements;
- the probe frequency supports multi-stage frequency adjustment, which is convenient for diagnosing reproductive system diseases;
- it is equipped with a special waterproof sunshade with a cross type installation design, which is firm and easy to disassemble;

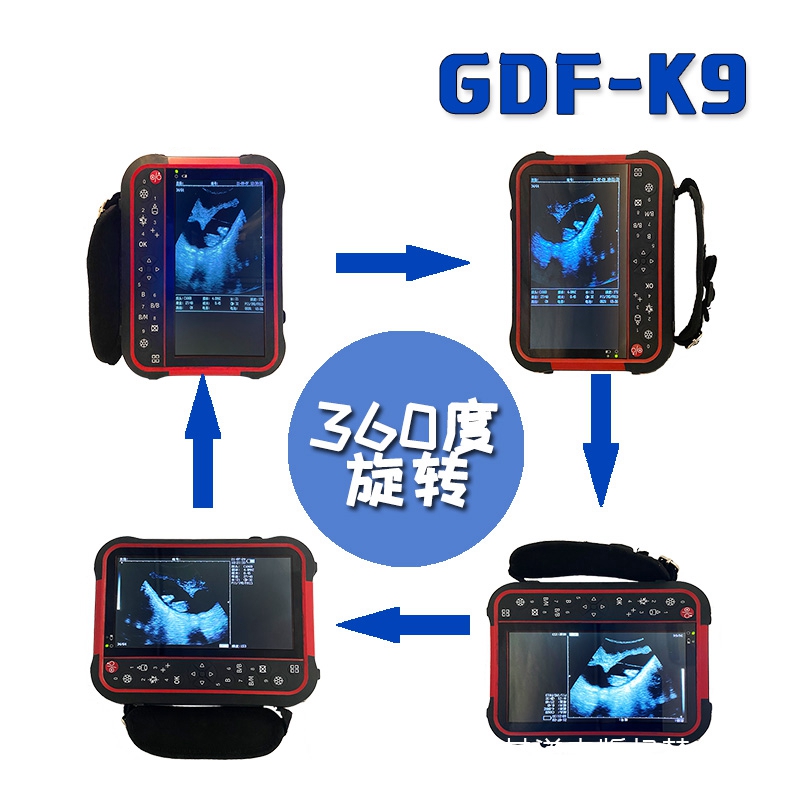

- the screen can rotate 360 degrees, which is convenient for different scenes;
- horizontal and vertical view modes;
- it is equipped with a soft belt to facilitate left and right hand operation;
- multiple color functions can be selected;
- support adjustment of total gain, brightness and contrast;
- it can realize image real-time, freezing, storage, call out and movie playback;
- real time power display for easy charging;
- edit farm, number, time and other functions;
- back fat measurement, distance measurement, volume measurement, obstetric measurement and heart rate measurement;
- the battery can be removed to facilitate installation and replacement

Parameter:
- Screen size: 8.0 inch HD display;
- Display scale: 16:9;
- View mode: horizontal screen and vertical screen;
- Usage: hand holding and strap hanging;
- Image flipping: up / down / left / right, 360 ° flipping;
- Handheld mode: left hand / right hand mode;
- Shading configuration: collapsible cross type waterproof shading cover, 22cm high;
- Waterproof performance: the waterproof grade of the whole machine is IP65;

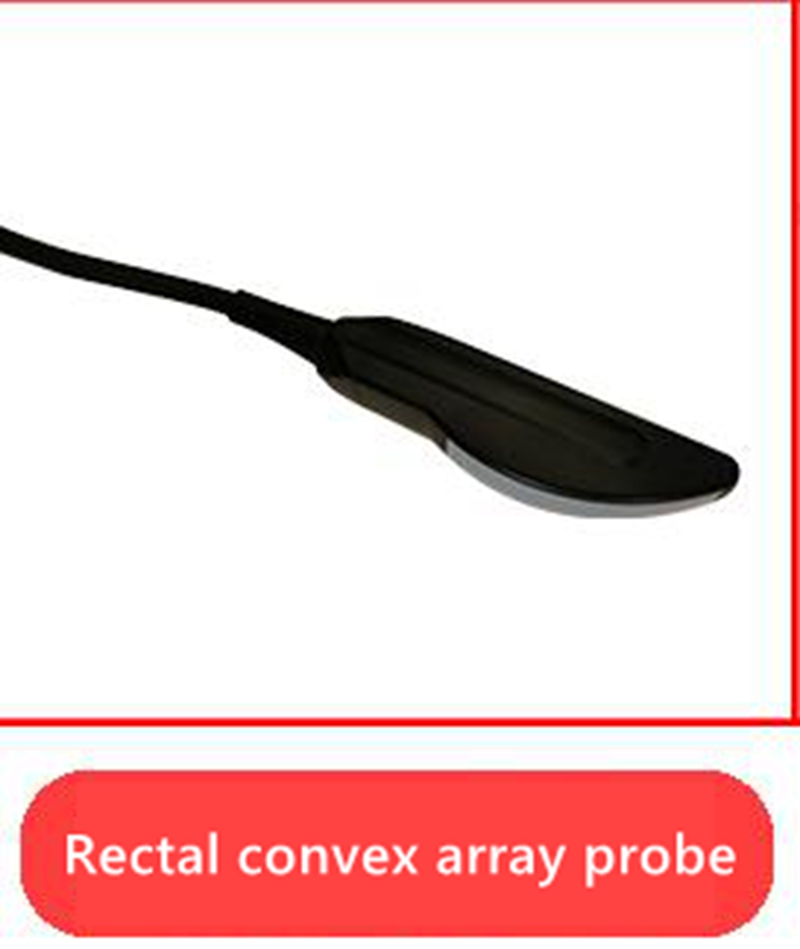

- Probe type: equipped with 5.0mhz electronic rectal convex array probe;
- Probe design: 32 core waterproof integrated molding manufacturing, 96 array elements;
- Socket sealing: both probe interface and charging port have rubber tail plugs for sealing;
- Scanning mode: electronic linear array;
- Harmonic imaging: support;
- Fundamental imaging: supported;
- Power display: percentage type;
- Frame correlation: 0.2-1.95, 16 gears adjustable;
- Color function: 8-color pseudo color;
- Measurement function: one key measurement of backfat thickness, distance, gestational weeks, expected delivery date, volume, heart rate, etc;
- Display mode: B, b+b, b+m, m, 4b;
- Image gray scale: 256 levels;
- Image storage: 64 frames, supporting USB flash disk expansion;
- Number of scanning lines: 512 lines / frame;
- Overall dimension: 198mm*160mm*38mm;
- Overall weight: 900g;
- Battery Specification: 3400ma/11.1v, easy to disassemble and replace;
- Working time: more than 5 hours of continuous use;
- Extended function: it can be equipped with a variety of high-frequency probes;
- Package specification: high grade aluminum alloy box.

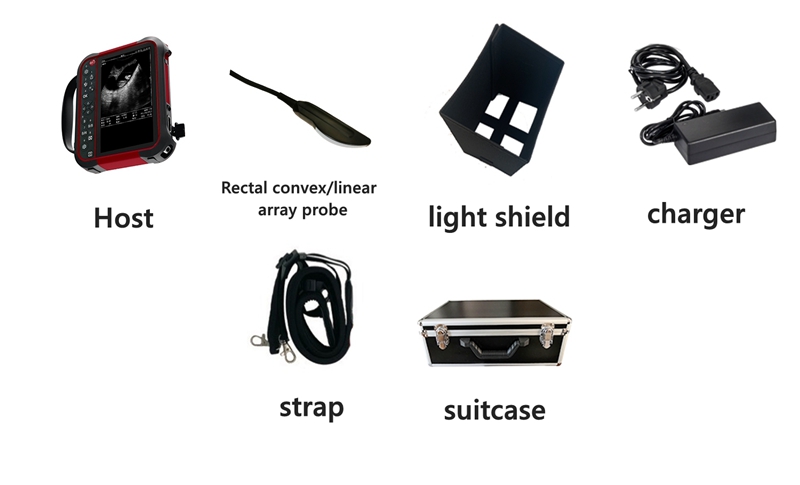

Package Included:
- 1 x host
- 1 x 5.0mhz electronic rectal convex array probe
- 1 x light shield
- 1 x charger
- 1 x strap
- 1 x suitcase
- 1 x manual
- 1 x warranty card respectively
