Description:

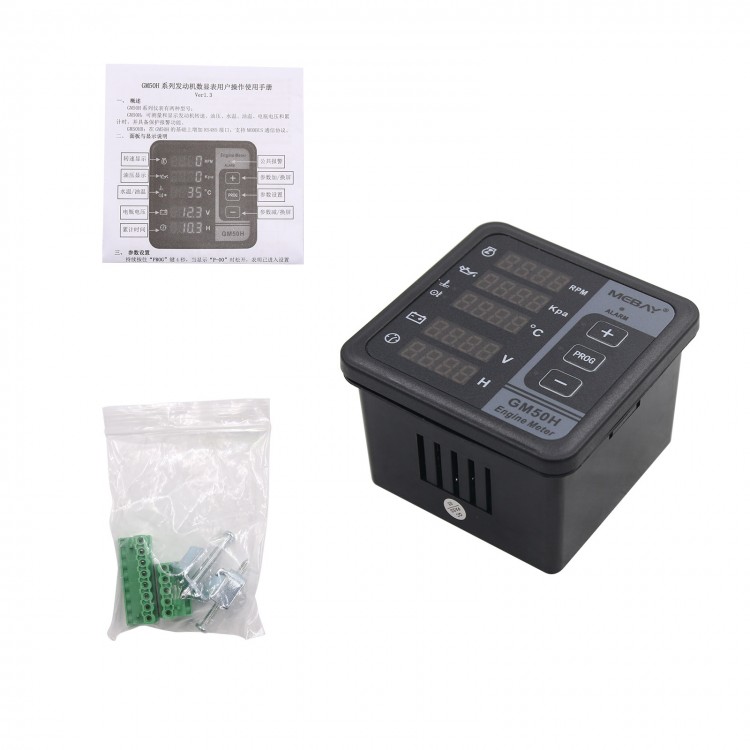

- GM50H is one light and low price-orientated module used for demonstrating engine RPM,water/oil temperature, oil pressure, battery voltage and Hours. The users can adjust and set the parameters by the button on the front face in order to meet the different requests. Besides, it uses the European-style terminals for connection which is more convenient for installation and detachment.
Main Features:
- Various kinds of protections
- Input frequency is available to check RPM
- Variety of sensor curves' parameters is set inside
- Sensor curve can be self-defined by buttons
- High-light digital tube can demonstrate the parameters
- English and symbols demonstration
- The parameters can be set and adjusted by the button on the front face.
Parameters display
- Engine RPM
- Engine Oil Pressure
- Engine Oil Temperature
- Engine Cooling Water Temperature
- Battery Voltage
- Accumulation Time
Protections:
- Over speed
- Low Oil Pressure
- High Oil Temperature
- High Water Temperature
- Low Battery Voltage
Specification:
- Power:DC8-36V
- Consumption Power:MAX:1W
- Sensor Resistance:0-1000Ohm
- Frequency range of RPM Input signal:Freq 300Hz~15KHz]
- Amplitude range iof RPM input signal:AC3-65V
- Input Power signal:AC20-280V(45-70hZ)
- Input Frequency:Freq45-70Hz
- Input Voltage:AC40-280V
- Ingress protection:IP54
- Size:100*100*77mm
- Installation Size:91*91mm
Package Included:
- 1 x Digital Multi-functional Meter
