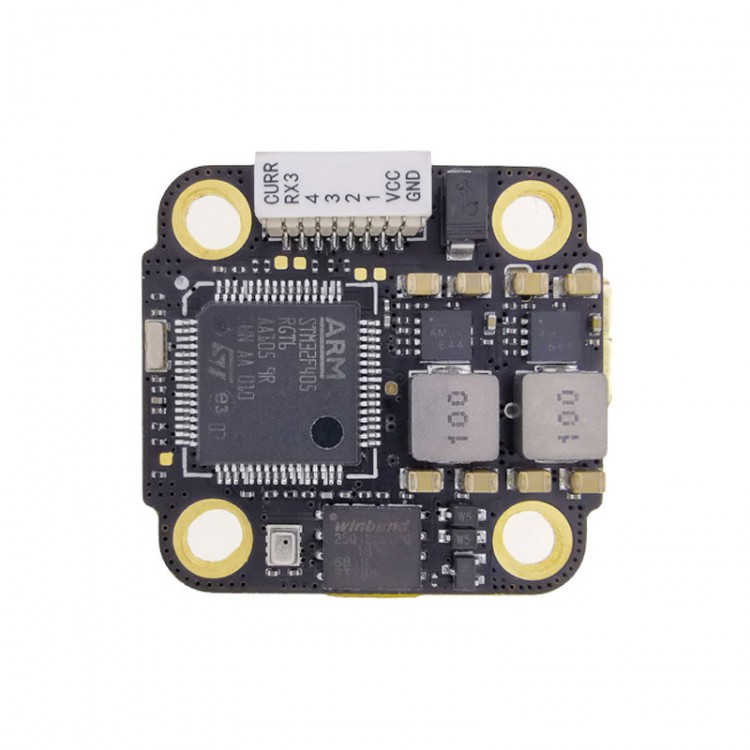

HAKRC F405 DM (F4520D) Flight Controller 3-6S 5V/3A 9V/2.5A For DJI Digital Transmitter Small FPV Drones
Notice For Use:
- The flight controller has many integrated functions and the components are very dense. When installing, please not use tools (such as needle-nose pliers or sleeves) to screw the nuts. It is easy to scratch hardware of flight control and ESC and cause unnecessary losses. Please tighten the nut with your fingers, and quickly tighten the screw from the bottom with a screwdriver. (Remember not to be too tight, so as not to damage the PCB board).
- Please not install propellers when installing and debugging the flight controller, try not to fly indoors, so as to avoid safety accidents. Before installing propellers for flight test, please check again whether the steering of motor and the direction of propeller are correct. Please not fly near crowds. Our company is not responsible for all losses caused by the crash of the aircraft.
- Please not use non-original aluminum or nylon columns to avoid damage to the flight controller's hardware. The official standard configuration is a custom-sized nylon column that fits flight controller and ESC.
- Before an aircraft is powered on, please check again whether the installation between the flight controller and ESC is correct (the pins or cables must be aligned and installed), check whether the welding positive and negative poles are correct, and check whether motor screws are against the motor stator to avoid short circuits.
- Check whether there is any solder thrown out on electronic components of flight controller and ESC, for this may cause a short circuit. Users shall be responsible for short circuits caused by installation and welding.
- Size: 31 x 28 x 8mm/1.2 x 1.1 x 0.3"
- Hole spacing: 20 x 20mm/0.8 x 0.8"; hole diameter 4mm/0.16"
- Weight: 6g/0.01 lb
- Processor: STM32F405RGT6
- Gyroscope: MPU6000
- BEC: 5V/3A; 9V/2.5A
- Storage: 16MB
- Input voltage: 3-6S
- Firmware: for betaflight_4.1.0_MATEKF405
- Uart serial port: 5pcs
- 1 x Set of Flight Controller
- Other items pictured are not included in the package, for demonstration purposes only. Thank you for your understanding!
