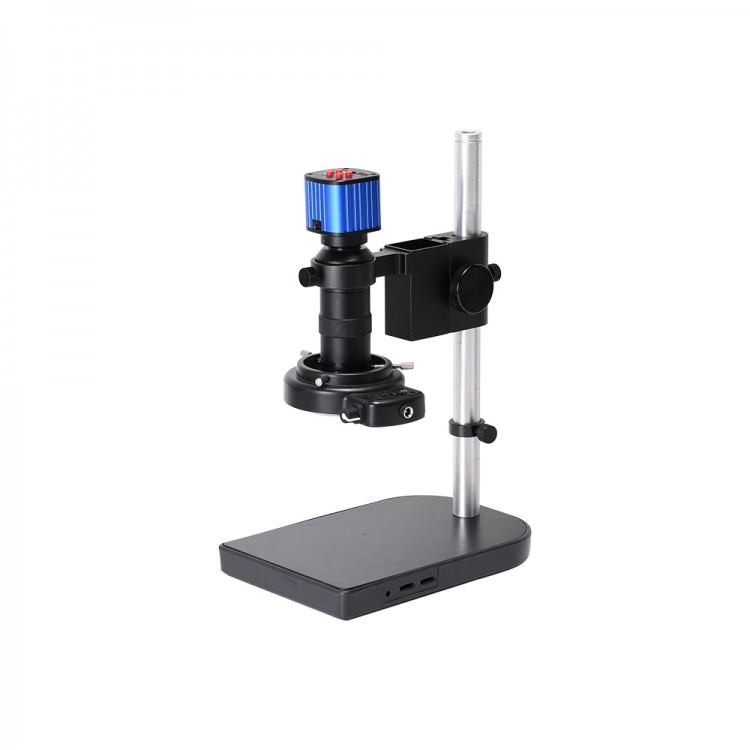

HAYEAR 24MP 2K Industrial Microscope Camera HDMI USB Camera 150X Lens 11.6" Screen for Phone PCB

Availability: In stock, usually dispatched in 1 business day

  • Price:$133.28
  • Price in reward points: 1333 Reward Points: 13
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $130.61 $127.95 $123.95 $118.62 Contact US
Quantity:

HAYEAR 24MP 2K Industrial Microscope Camera HDMI USB Camera 150X Lens 11.6" Screen for Phone PCB

Features:

1. PC supports for multiple systems, including for Windows XP/7/8/10
2. Comes with a 150X C-mount zoom lens for industrial microscope camera
3. This 24MP industrial microscope camera is suitable for repairing industry
4. Adopts high quality metal housing which is sturdy, durable and has long life
5. High resolution and dual output make it more convenient to use

Camera Specifications:
- Item Type: Microscope Camera
- Module: HY-5200D
- Sensor: 24MP for CMOS
- Optical Format: 1/2.9inch
- Pixel Size: 2.85μmx2.85μm
- Interface: HDMI (Type A). USB (Type B). Small memory card
- HDMI Image Resolution: 24MP
- Video Resolution: 2K at 30FPS 1080p at 30FPS
- HDMI Resolution: 1920 x 1080p
- HDMI Scale: Support 4: 3,16: 9 screen
- USB2.0 (Drive Free): 1920 x 1080 at 30FPS; 1280 x 720 at 30FPS; 640 x 510 at 30FPS
- Small Memory Card: Up to 128GB (not included)
- AWB: AWB color correction/automatic/manual
- R.G.B value setting independent
- Exposure: Automatic/manual. AE value can be set
- Cross Line: 8 lines, color, width, position can be set
- Scale Line: 2 lines
- Dotted Line: 2 lines, color, width, position can be set
- Sharpness Contrast Color Gain: Support
- Mono Negative Film: Support
- Mirror: Horizontal and vertical mirror
- Language: English/Simplified Chinese/French/Spanish/Japanese/German and other languages
- Digital Zoom: Support
- Infrared Remote Control: Support
- Voltage Input: DC 12V
- Power Supply Voltage: Input: AC100-240V
- Output: DC12V
- Power Consumption: Maximum 0.15W 12V, 0.12A
- Lens Interface: C/CS port
- 11.6-inch HD IPS Monitor Resolution: 1920x1080P

150X C-Mount Lens:
- Magnification Power by 0.12-2X (about 8X-150X on the display)
- Working distance: 70cm/27.6"
- Visual field: 2.4mm-66mm/0.1-2.6"
- Zoom ratios: 5:1
- Size: 100 x 28mm/3.9 x 1.1" (LxDia.)
- Weight: 100g/0.2lb

56-LED Microscope Ring Light:
- Provides intense and focused shadow-free illumination
- 56 bright white LED bulbs
- Lighting direction changeable
- Variable intensity control
- Intense and focused shadow-free illumination
- 100,000 hours of life
- Power input: 100-240V, 50-60HZ, automatic switching
- Inside diameter of the ring light: 27mm/1.1"
- Overall outside diameter: 45mm/1.8"
- Working Distance: 27-45mm/1.1-1.8"

Package Included:
- 1 x Microscope Camera
- 1 x 150X Lens
- 1 x Microscope Light Source
- 1 x Camera Stand
- 1 x Power Adapter
- 1 x USB Cable
- 1 x HDMI Cable
- 1 x Remote Control (Battery Not Included)

Note:
1. PC Support: Support for Windows XP/7/8/10 system.
2. For USB output, Software operating white balance, exposure and color adjustment can adjusted. (The camera keys are not available. Remote control cannot operate)
3. For high-definition multimedia interface output, the function can be adjusted when connected to the monitor. (Camera keys available. The remote control can be operated wirelessly)
4. When using USB connection, please make sure that there is no memory card in the camera, memory card storage is just used for high-definition multimedia interface output. The USB output will be stored in the PC.
5. When connecting the camera to the computer, just plug in the USB cable (no need to use power).
