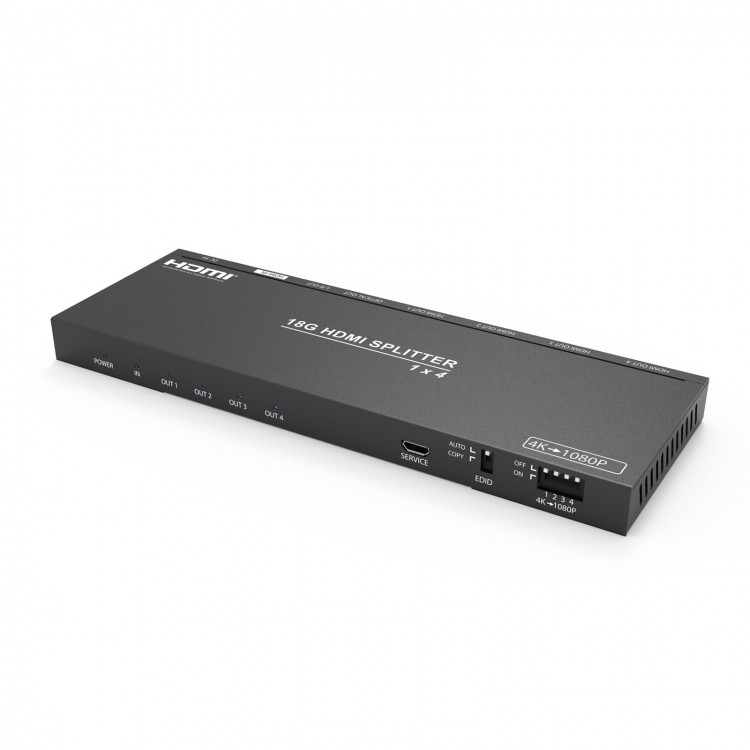

HDMI Splitter 1 In 4 Out HDMI Splitter 1x4 Support 4K 60Hz Audio Separation For Dolby 5.1 HDV-B14SA

HDMI Splitter 1 In 4 Out HDMI Splitter 1x4 Support 4K 60Hz Audio Separation For Dolby 5.1 HDV-B14SA

Description:
The 1x4 HDMI 2.0 Splitter simultaneously one route HDMI source to four routes HDMI display. It supports resolution up to 4K 2K@60Hz (4:4:4) and HDCP 2.2. This product supports audio extract from HDMI source to optical and analog output. It can be selected COPY, AUTO modes EDID setting. Output supports bypass and downscaler(4K->1080P) function.

Features:

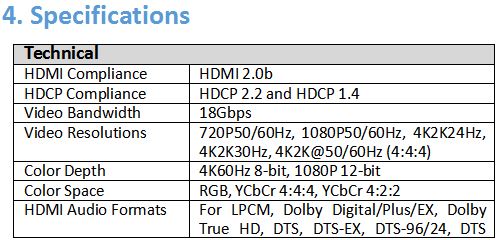

- HDMI 2.0b, HDCP2.2/HDCP1.4 compliant
- Supports HDMI resolution up to 4K2K@50/60Hz (4:4:4)

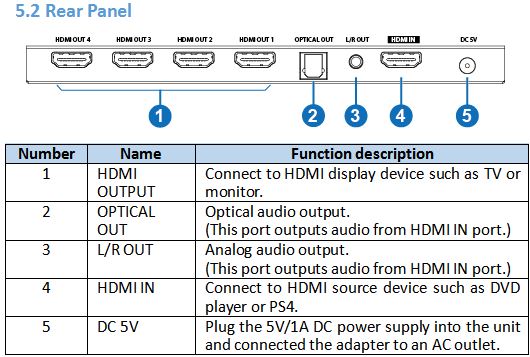

- Supports digital and analog audio extract output from HDMI source

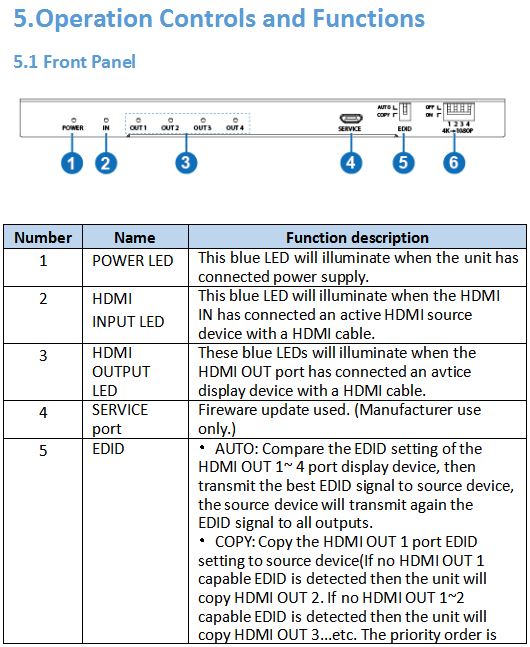

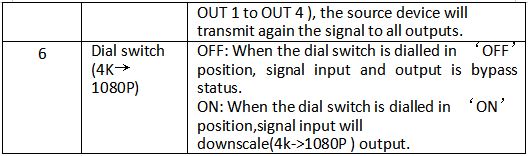

- Supports output bypass and 4K->1080P downscaler function via dial switch on panel
- EDID can be selected COPY and AUTO modes via dial switch on panel (COPY: It copies OUT 1 port EDID setting to all outputs port, If no HDMI OUT 1 capable EDID is detected then the unit will copy HDMI OUT 2. If no HDMI OUT 1~2 capable EDID is detected then the unit will copy HDMI OUT 3...etc. The priority order is OUT 1 to OUT 4. AUTO: Compare OUT 1~OUT 4 EDID setting and output the best resolution to all outputs).
- Supports analog audio PCM 2.0
- Supports for optical audio pass-through format about LPCM 2.0/2.1/5.1CH, for Dolby 5.1, for Dolby True HD, for Dolby DD+, DTS 5.1, DTS-ES 6/DTS-HDMA 5.1, DTS HD-HRA 5.1

Package Included:
- 1 x HDMI 2.0 Splitter
- 1 x 5V/1A Power Adapter
- 1 x User Manual
