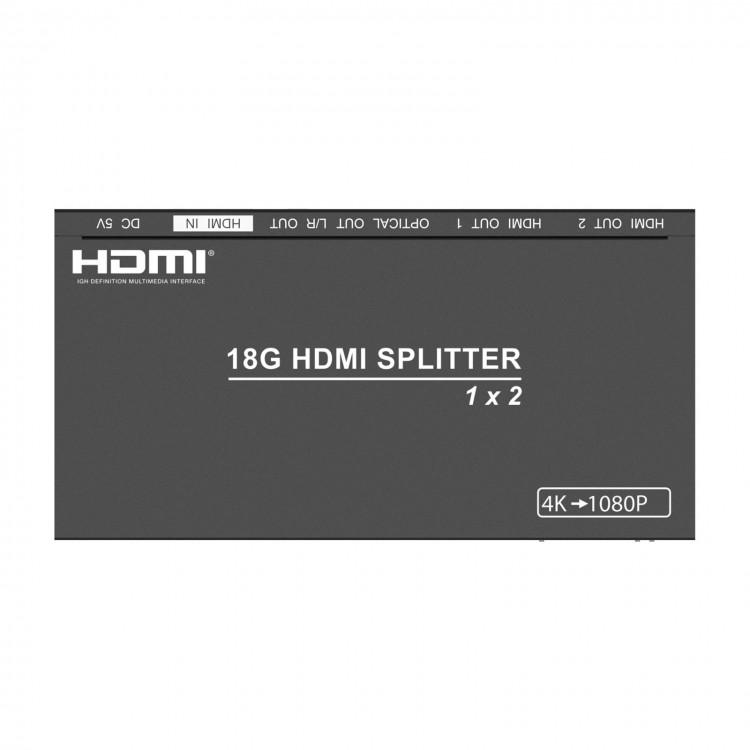

HDMI Splitter 1 In 2 Out HDMI Splitter 1x2 Support 4K 60Hz Audio Separation For LPCM Dolby HDV-B12SA
Description:
The 1x2 HDMI 2.0 Splitter simultaneously one route HDMI source to two routes HDMI display. It supports resolution up to 4K 2K@60Hz (4:4:4) and HDCP 2.2. This product supports audio extract from HDMI source to optical and analog output. It can be selected COPY, AUTO modes EDID setting. Output supports bypass and downscaler (4K->1080P ) function.
Features:
- HDMI 2.0b, HDCP2.2/HDCP1.4 compliant
- Supports HDMI resolution up to 4K 2K@50/60Hz (4:4:4)
- Supports digital and analog audio extract output from HDMI source
- Supports output bypass and 4K->1080P downscaler function via dial switch on panel
- EDID can be selected COPY and AUTO modes via dial switch on panel (COPY: It copies OUT 1 port EDID setting to all outputs port; AUTO: Compare OUT 1 and OUT 2 EDID setting and output the best resolution to all outputs)
- Supports for HDMI audio format LPCM, for Dolby Digital/Plus/EX, for Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
Package Included:
- 1 x HDMI Splitter
- 1 x 5V/1A Power Adapter
- 1 x User Manual
