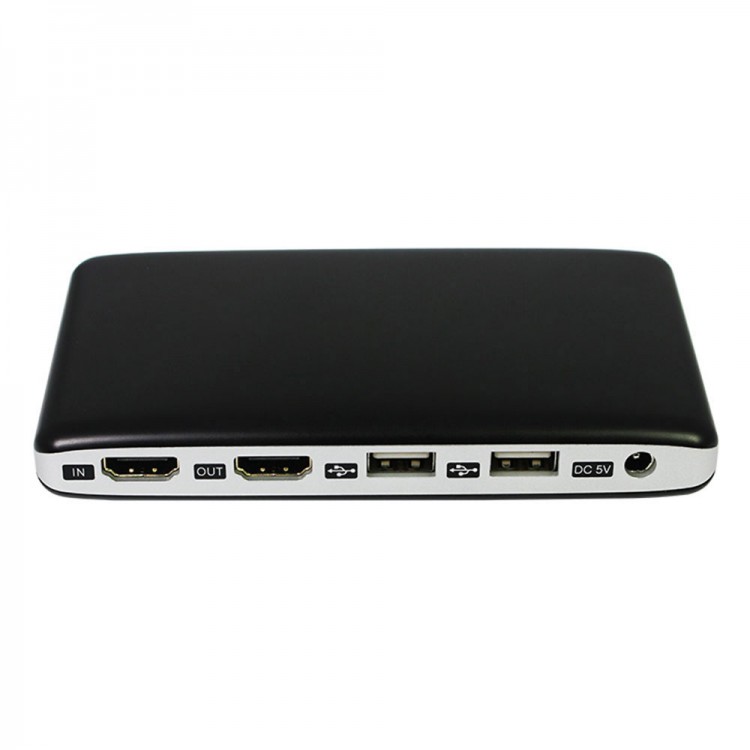

HDV-UH50 Portable HDMI Video Card USB2.0 Video Recorder for WiiU Xbox PS4 TV Games

HDV-UH50 Portable HDMI Video Card USB2.0 Video Recorder for WiiU Xbox PS4 TV Games

Product instructions: Click here

Introduction:
The HDMI Video Card employs HDMI technology to receive video and audio from HDMI input. It can stores the video directly onto a portable USB hard disk or high speed pen drive. It uses H.264 AVCHD M2TS format, which guarantees very ef icient compression and timely delivery. Recorded video can be played back on any media player, Blu-Ray Disc player or PC/NB that supports AVCHD M2TS ile format.

Feature:
- It doesn't need to install a driver, and it is truly PnP;
- Support recoder video and collect photo to USB storage device;
- Support playback video and photo from the usb storage device;
- The HDMI Video Caputre formats using the FAT32 ile system format;
- It can automatically detect the input video formats and it will adjust to the set output size and frame rate automatically;
- Fit for recording HDMI videos without computer, its resolution can up to 1080P60;
- With HDMI Pass-through function, enables you to play HD games when you recording it;
- With one-button-record button and USB interface, do not need to install any software;
- Portable and Practical, easy and convenient for using, it for WiiU Xbox 360 Xbox 1, PS4, ideal for game lovers;

Specification:
- Host Interface: USB2.0 Host;
- Input Interface: HDMI interface;
- HDMI Input Formats: 480i,480p,576i,576p,720p50,720p60,
  1080i50,1080i60,1080p24/25/30/50/60;
- Output Interface: HDMI interface;
- Output Formats Resolutions: 1080i50,1080i60,1080p50,1080p60;
- Encode format: Hardware H.264 encoder
- ESD Protection: Human-body Model: ± 8kV (Air-gap discharge);± 4kV (Contact discharge)
- Size: 135x78x24 (L/W/H, mm)
- Weight: 120 g
- Power consumption: 5W
- Working Temperature: 0-50 deg C
- Storage Temperature: -20-70 deg C
- Storage Humidity: 5%-90%

Package list:
- HDMI Video Card
- 5V/2A DC power adaptor
- Remote Control
- User manual
