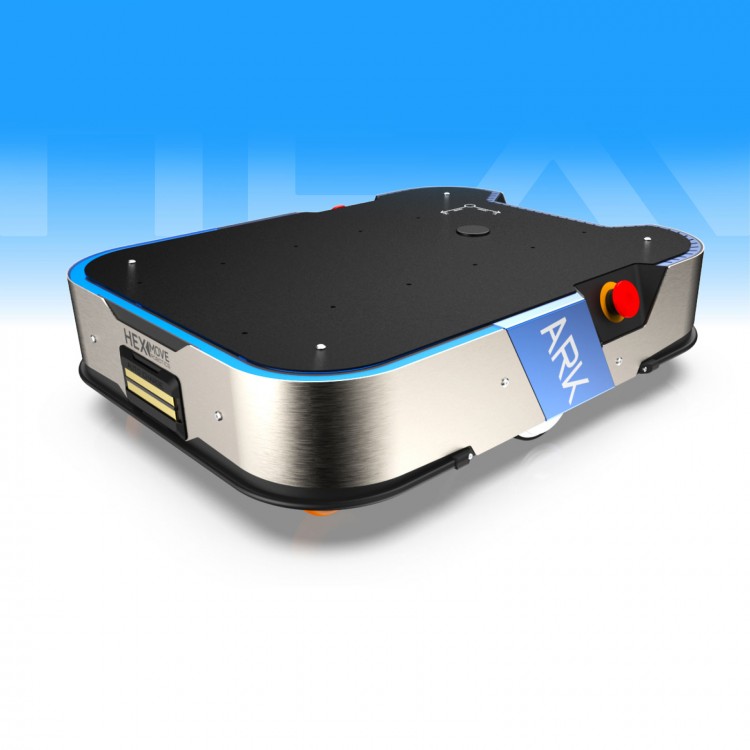

HEXMOVE Robotics ARK Indoor AGV Chassis with Automatic Charging System & 1.5m/s Speed for 80kg Load
Description:

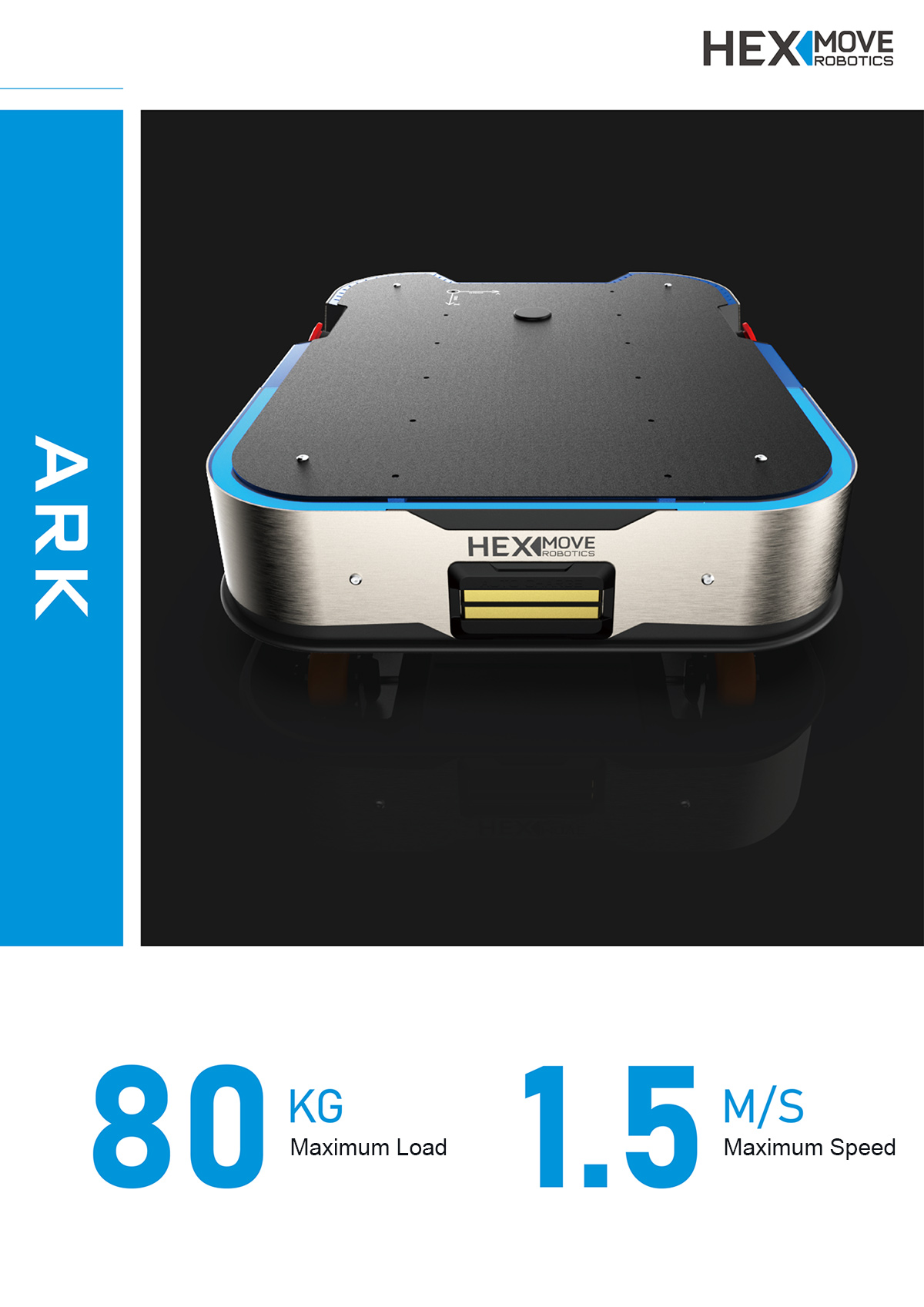

ARK is an indoor AGV chassis equipped with an automatic charging system and a lighting indication system. It offers excellent load capacity and mobility, making it particularly suitable for various indoor environments.
The AGV chassis supports a maximum load of 80kg and can reach a top speed of 1.5m/s.
It supports on-board power modules and can be fitted with an autonomous navigation kit, making it ideal for commercial services, indoor inspection, educational research, and other applications.
Technical Parameters:
* Applicable Scene: Indoor

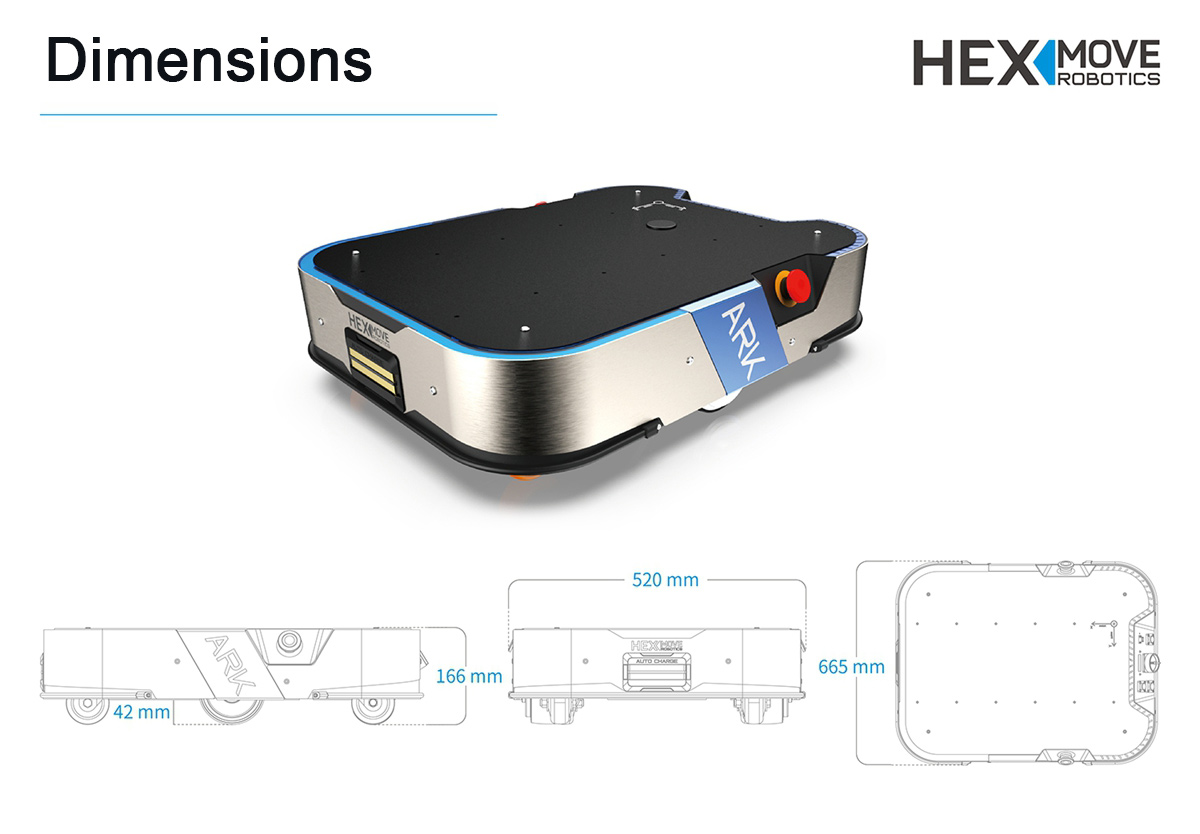

* Dimensions (L × W × H): 665mm × 520mm × 166mm
* Self-Rotation Outer Radius: 376mm
* Ground Clearance: 42mm
* Unladen Weight: 20kg
* Rated Load: 80kg
* Maximum Speed: 1.5m/s
* Maximum Climbing Angle: 10°
* Right-Angle Crossing: 10mm (no-load)
* Drive Mode: Dual Differential with Four Followers
* Brakes: Electronic Brake
* Suspension Type: Triple Swing Arm Suspension
* Operating Time: 5–8 hours depending on actual working conditions
* Motor Parameters: 2 × 150W Brushless Gear Motors
* Encoder Parameters: 4096-line Simulation
* Battery Parameters: 48V 10Ah
* Charging Time: 5 hours
* Charger: AC 220V External Charger
* Power Output: 24V Regulated / 48V Direct from Battery
* Communication Interface: Standard CAN
* Protection Rating: IP22
* Operating Temperature: 0–60°C
Packing List:
* 1 × AGV Chassis
Packaging Details:
* Weight: 26kg
Note:
* A 100W battery is included.
