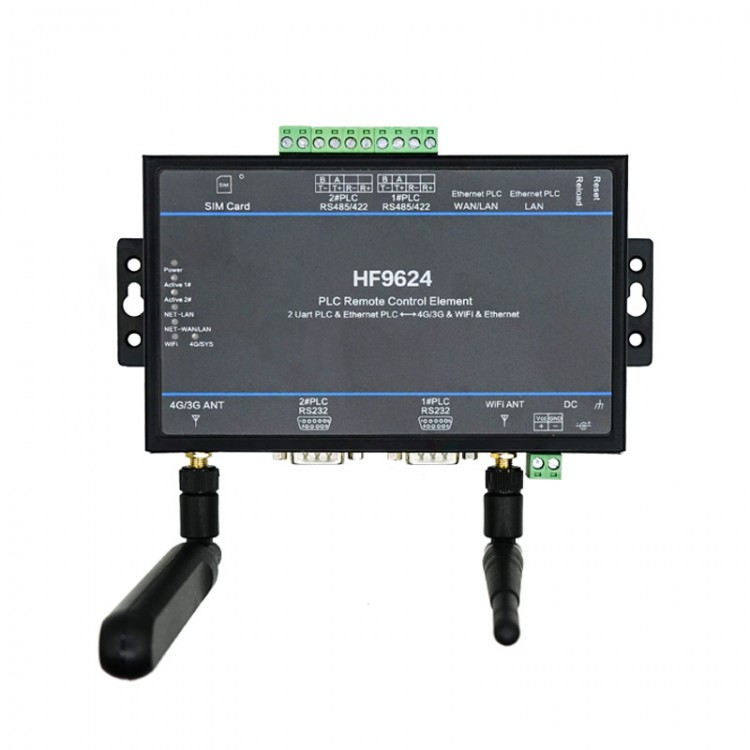

HF9624 PLC Remote Control Element for Mitsubishi Siemens Omron Schneider Panasonic Touch Screen

HF9624 PLC Remote Control Element for Mitsubishi Siemens Omron Schneider Panasonic Touch Screen

Description:
The 4G serial server device HF9624 provides protocol conversion among RS232/RS485/RS422 interface, Ethernet/Wi-Fi and 3G/4G,which can meet the solutions for serial/network transmission of industrial products.

The HF9624 integrates 4G/3G,Wi-Fi, Ethernet, high-speed serial port, RS232/RS485/RS422 interfaces, and it is based on operation system for Ecos and contain webpage, TCP/IP stack. It supports remote monitor PLC products of different brand.

Compatible PLC:
For Mitsubishi PLC, Siemens PLC, Omron PLC, Schneider PLC, Panasonic PLC, XINJE PLC, Delta PLC, Haiwell PLC, Nanda Auto, UniMAT, LG, AB and so on.

Features:
- MIPS MCU with 16MB Flash and 64MB SRAM. For Linux OpenWrt
- Support 4G/3G/GPRS, FDD-LTE, TDD-LTE, WCDMA, TD-SCDMA, CDMA2000, CDMA 1X/EVDO, GSM900/1800

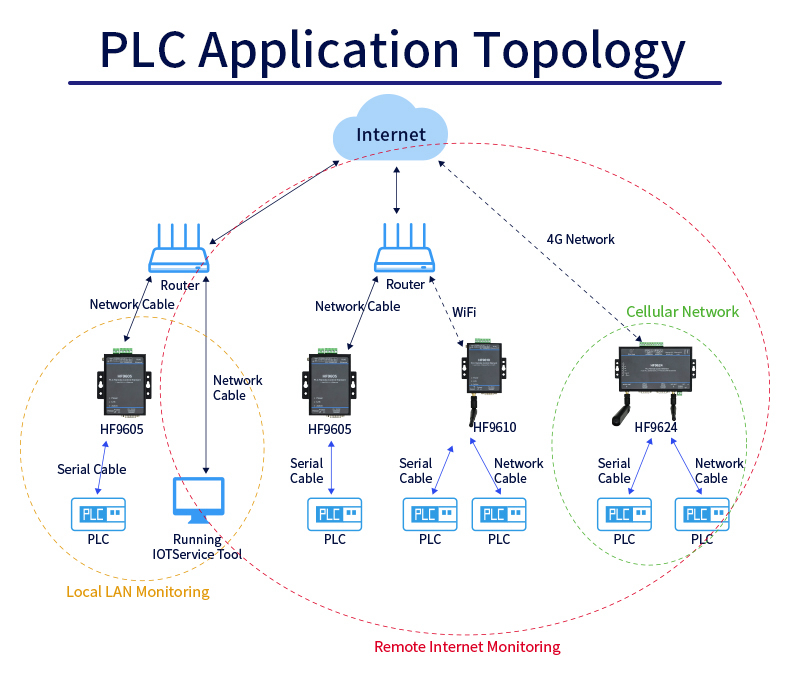

- Support for Virtual COM, Virtual Path Connect to PLC for Remote Monitor
- Two RS232/RS485/RS422 interface to 4G/3G/2G
- Two Ethernet to 4G/3G/GPRS
- Support 802.11bgn Wi-Fi to 4G/3G/GPRS
- Support APN network
- Support VPN (PPTP, L2TP, L2TP+IPSEC)
- Support TCP/IP/Telnet/Modbus TCP Protocol, support TLS/AES/DES3 encryption
- Support Router or Bridge Network Working Mode
- Support 10/100M Ethernet Automatic-Negotiation
- Support Easy Configuration Through a Web
 - Interface or PC IOTService Tool locally or remotely
- Support IOTBridge Management
- Support Web OTA Wireless Upgrade
- Support Wide DC Input 9~36VDC
- Size: 178 x 95 x 26mm/7 x 3.7 x 1"

Specifications:
- Basic Frequency: 580MHz
- Flash: 16MB
- Operating System: for Linux OpenWrt
- Interface Standard: RS232: DB9 RS485/RS422: 5.08mm connector. Support one type of RS232/RS422/RS485 at the same time
- Protection: Anti-reverse Power Static: 8KV Contact Discharge, 15KV Air Discharge Surge: Difference-mode 4KV, Common-mode 6KV
- Transmit Power: Class 4 (33dBm±2dB) for GSM900; Class 1 (30dBm±2dB) for DCS1800; Class E2 (27dBm±3dB) for GSM900 8-PSK; Class E2 (26dBm±3dB) for DCS1800 8-PSK; Class 3 (24dBm+3/-1dB) for CDMA BC0; Class 3 (24dBm+1/-3dB) for WCDMA; Class 2 (24dBm+1/-3dB) for TD-SCDMA; Class 3 (23dBm±2dB) for LTE FDD; Class 3 (23dBm±2dB) for LTE FDD
- Receive Sensitivity: Wi-Fi: 802.11b: -89dBm 802.11g: -81dBm 802.11n: -71dBm
- Port Number: 2 RJ45 1 WAN/LAN switchable 1 LAN
- Stop Bit: 1, 2
- Check Bit: None, Even, Odd
- Baud Rate: TTL: 300bps~230400bps
- Flow Control: No Flow control Hardware RTS/CTS, DSR/DTR(RS232) Software for Xon/ Xoff flow control
- Size: 178 x 95 x 26mm/7 x 3.7 x 1"
- Input Voltage: 5～36VDC
- Resource-RAM: 64MB RAM
- Work Temperature: -25 to 85°C
- Storage Temperature: -45 to 105°C, 5~95% RH (no condensation)

Package Included:
- 1 x Set of PLC Remote Control Element
