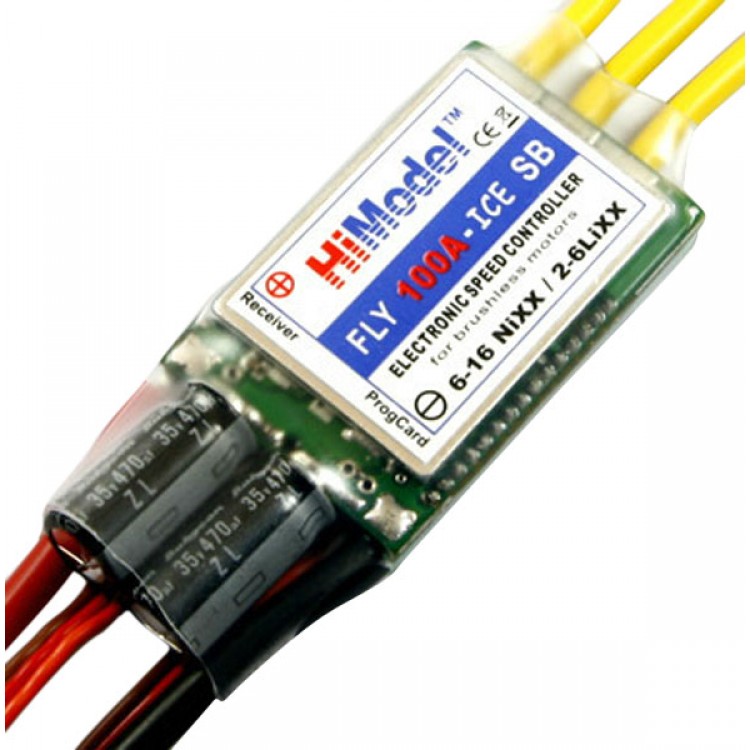

Himodel FLY100A-ICE 2-6S Brushless Speed Control for Airplane/Helicopter

Availability: Out Of Stock

  • Price:$63.77
  • Price in reward points: 638 Reward Points: 6
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $62.49 $61.22 $59.31 $56.76 Contact US
Quantity:

Himodel FLY100A-ICE 2-6S Brushless Speed Control for Airplane/Helicopter
Features:
- Compatible with a programming card to change and set parameters easily and conveniently
- Super fine and smooth touch of speed controlling, first-rate accurate linearity
- Soft Start-up mode and Constant RPM mode (Governor mode)
- adjustable F3A brake.
- 3 steps adjustable regular back EMF brake.
- High capability of anti-interference
- Low-voltage cut-off protection for per cell battery
- Under-voltage cutoff
- Under-voltage can be disabled
- Under-voltage with automatic adjustment for NiCd/NiMH/Li-Ion/LiPo/LiFePO4
- Variable cutoff voltage / cell
- Slow down instead of cutoff
-  Active freewheeling circuit
- LED status display
- Timing of motor ranges from 0° to 30°
- Blocked rotation protection
- Reversible rotation direction
- Over-temperature protection and Overload alarm
- Anti sparkling circuit: reduces connection sparkles
- Throttle signal lose protection. When the signal loses for 3 seconds, the power will automatically cut off.
-  Safe power-on. The motor won’t start no matter which position the throttle stick is when battery connected
***This series ESC can be compatible with both helicopter and airplane.

Specfication:
- Type: FLY 100A-ICE SB
- Size: 72 x 32.8 x 14 mm
- Constant Current: 100A
- Max Current: 120A for 10 seconds
- Input Voltage: 2-6 cells li-XX or 6-16 Ni-MH/Ni-Cd battery
- BEC: yes, Switch BEC
- BEC Output: 5.5V/6A
- PWM: 8-16 KHz
- Max RPM: 240,000rpm for 2 Poles Brushless Motor
- Weight: 69g
