Hiwonder LDX-227 Dual-Shaft Digital Servo Metal Gear 270° 15KG/17KG Torque for Humanoid Robots
Features:
LDX-227 High-Precision Digital Servo
* LDX-227 dual-shaft digital servo is a patented product
* Imported potentiometer
* High-durability metal gears
* Plug-and-play connector
* Control source code provided for 51 MCU, Ar-duino, STM32 MCU, and Raspberry Pi
Imported Potentiometer
* It uses a high-precision imported potentiometer, greatly improving accuracy and linearity. Movement is very precise, meeting the requirements for building robots.
High-Quality Metal Motor
* The servo contains a high-quality metal motor, allowing it to handle greater loads and impacts, thereby increasing torque and service life.
Metal Gears
* Gears are made of stainless steel, enhancing wear resistance and lifespan.
17kg High Torque
* Strong torque makes it suitable for various robots and robotic arm applications.
Convenient Wiring
* It uses a plug-and-play wiring method to prevent solder joint detachment. Servos can be replaced easily in robot projects, and wiring is more flexible.
270° Precise Control
* With a high-precision potentiometer and PWM pulse-width control, the servo can accurately output angles from 0–270°.
Application Scenarios
* Suitable for humanoid robots
Specifications:
* Product Name: LDX-227 Digital Servo
* Product Weight: 57g

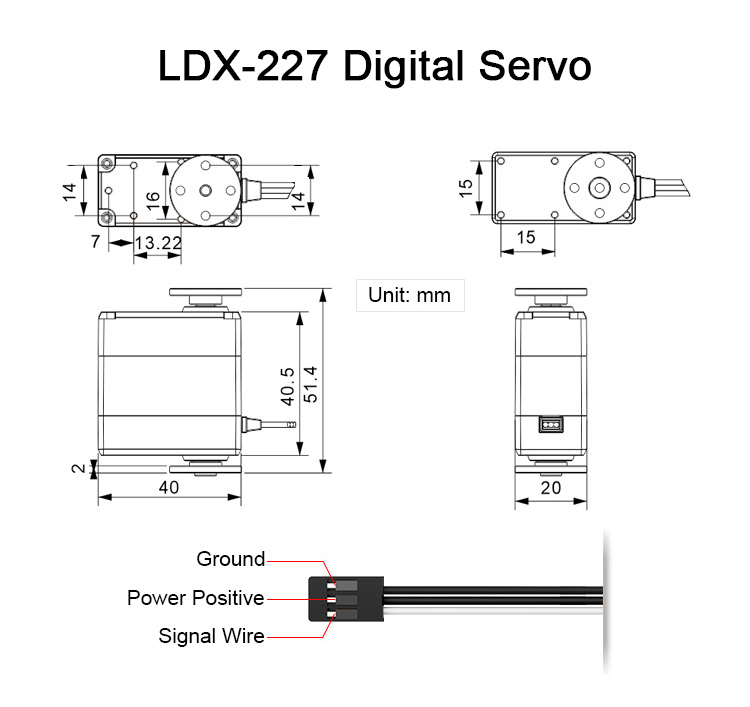

* Product Size: 40mm × 20mm × 51.4mm
* Working Voltage: 6–8.4V
* Rotation Speed: 0.16sec/60° at 7.4V
* Stall Torque: 15kg·cm at 6V, 17kg·cm at 7.4V
* Rotation Range: 0–270°
* No-load Current: 100mA
* Stall Current: 2.4–3A
* Servo Accuracy: 0.4°
* Control Method: PWM Pulse-width Control
* PWM Pulse-width Range: 500–2500μs, corresponding to 0–270°
* Gear Teeth: 25T
* Gear Type: Metal Gear
* Wire Length: 30cm
* Connector Type: PH2.0-3P
* Applicable For: Various Bionic Robot Joints

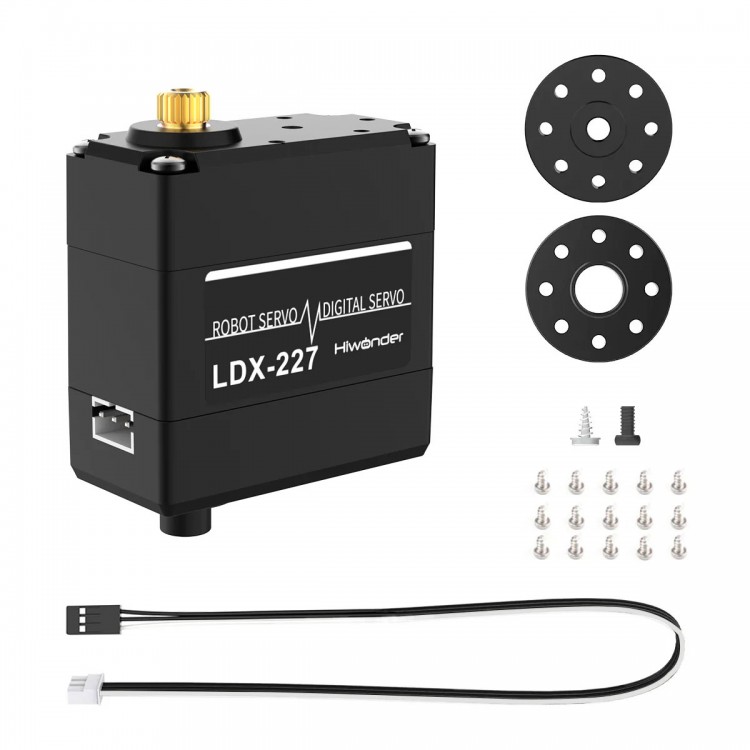

Packing List:
* 1 × LDX-227 digital servo
* 1 × Plastic main servo horn (4mm thick)
* 1 × Plastic secondary servo horn (2mm thick)
* 1 × Servo cable (30cm long)
* 1 × PM3×6 round-head Phillips machine screw
* 1 × PWA3×5×7 round-head Phillips screw
* 15 × PA2×5 round-head Phillips self-tapping screw
Packaging Details:
* Weight: 0.16kg
