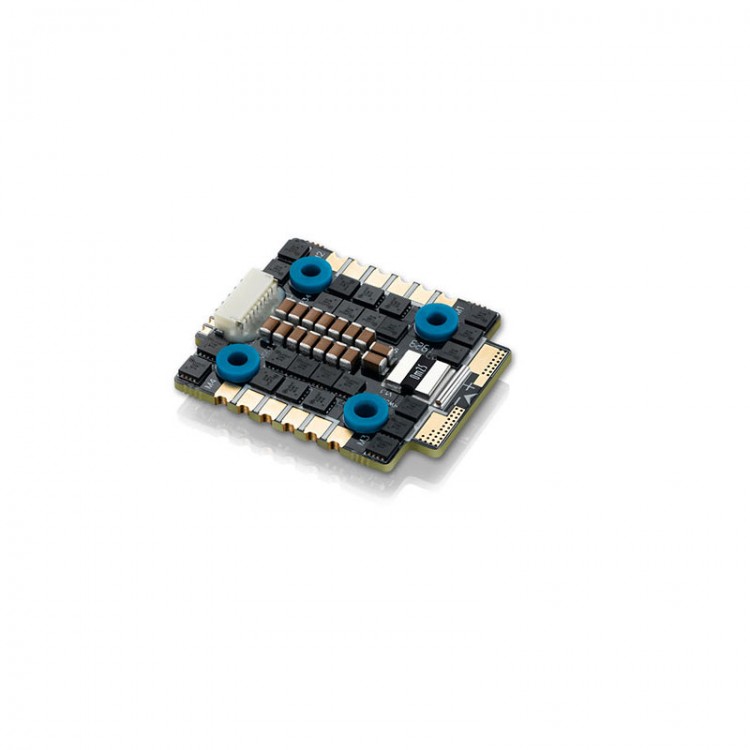

Hobbywing Brushless ESC 40A XRotor Micro 40A(20x20) 6S 4in1 ESC Perfect For FPV Racing Drones

Hobbywing Brushless ESC 40A XRotor Micro 40A(20x20) 6S 4in1 ESC Perfect For FPV Racing Drones

Overview:

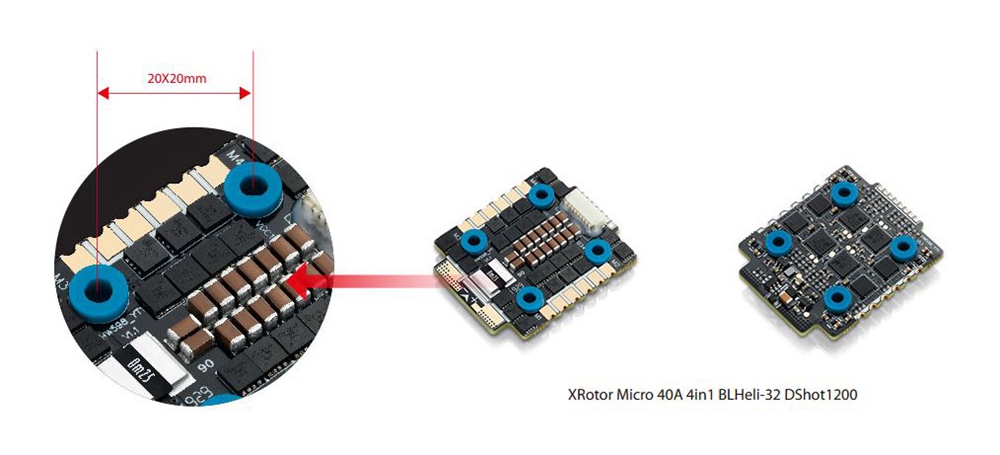

Highly Integrated & Compact
XRotor Micro 40A 4in1 ESC features 32bit MCU and 3rd-generation BLHeli-32 firmware, handles 6S up to 40A per channel. The built-in voltameter module which allows FC to monitor power supply volt & amp in real time. With this 20x20 ESC makes your electronic stack smaller and be able to shave some grams.

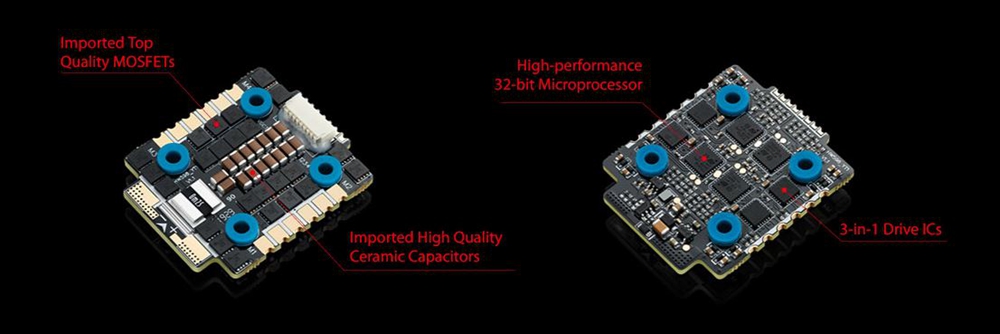

High Quality Hardware
High performance 32bit for ARM MCU can run at 48MHz.3IN1IC drive. Imported mosfet and ceramic capacitor. 3 ounces of copper, 8 layers. Greatly reduce heat. More efficient.

BLHeli-32 Firmware Ready
The ESC flashed with the 3rd-generation BLHeli-32 firmware has great performance & rich functions and supports adjusting parameters or upgrading firmware via different ways (i.e. via throttle signal wire with using other development board or a FC flashed with the firmware for Clean fight/Beta flight).

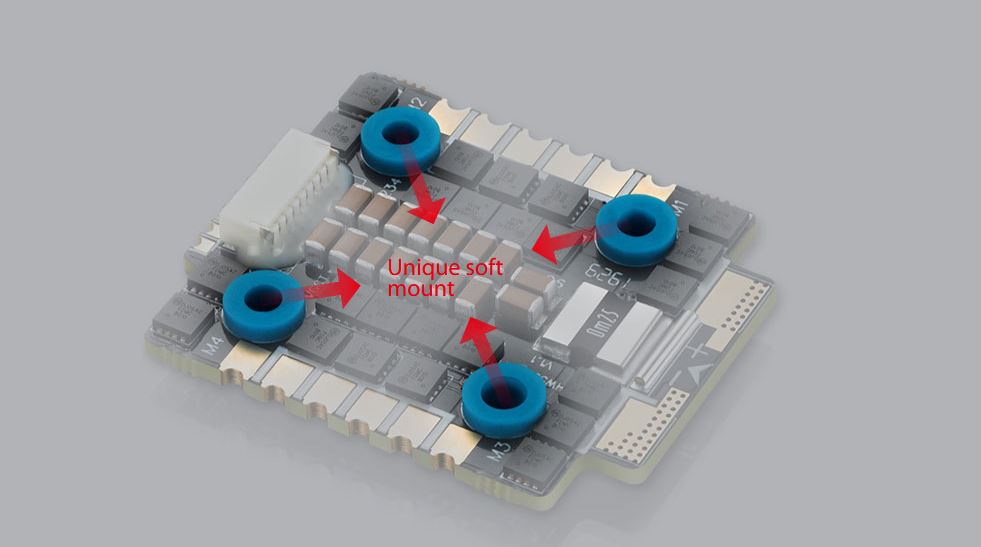

Unique Soft Mount
The soft mounts prevent vibrations from being transferred to the FC. Soft wiring and welder pads for the best possible connection.

DShot1200 Ready
Besides the regular PWM mode, Oneshot125/Oneshot42/Multishot modes, DShot150/300/600 modes, the latest DShot1200 mode is also supported. In DShot1200mode, the ESC has great anti-interference performance and rapid response.

Hardware Generated PWM& Damped Light Mode
The ESC firmware uses hardware generated motor pwm for smooth throttle response and silent operation. Damped light does regenerative breaking, causing very fast motor retardation, and it inherently also does active freewheeling.

Specifications:
- Product Name: XRotor Micro 40A (20x20) BLHeli_32 4in1 DShot1200
- Product Number: 30902045
- Cont./Peak Current: 40Ax4/60Ax4
- Input Voltage: 3-6S Lipo
- BEC output: NO

Wires & Connectors:
- Input Wires: Red-14AWG-100mm/Black-14AWG-100mm
- Output Wires: No wires but solder tabs
- Input Connectors: XT60 plug enclosed with package
- Output Connectors: No
- Note: All the wire length above is the original length not the length you see from the outside

Features:
- Firmware: Hobbywing_X Rotor_BLHeli-32 Version
- ESC Programming: BLHeliSuite32
- Stick Programming: Supported
- DEO: Supported
- Throttle Range Calibration: Supported
- Oneshot125Mode: Supported
- Oneshot42 Mode: Supported
- MultiShot Mode: Supported
- DShot150/300/600/1200: Supported
- Timing: Supported
- Motor Rotation: Supported

Size & Weight:
- Size: 40x33x5mm
- Weight: 12g

Applications:
- For 100-300mmFPVs

Package Included:
- 1 x Brushless ESC
