Holybro Pixhawk4 Mini Flight Controller w/ M8N GPS Module PM06 Power Open Source Fmuv5 Low Latency

Availability: Out Of Stock

  • Price:$204.57
  • Price in reward points: 2046 Reward Points: 20
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $200.48 $196.39 $190.25 $182.07 Contact US
Quantity:

Holybro Pixhawk4 Mini Flight Controller w/ M8N GPS Module PM06 Power Open Source Fmuv5 Low Latency

Specification:

Main FMU processor: STM32F765
32 Bit Arm® Cortex®-M7, 216MHz, 2MB memory, 512KB RAM
On-board sensors:
Accel/Gyro: ICM-20689
Accel/Gyro: BMI055
Magnetometer: IST8310
Barometer: MS5611
GPS: ublox Neo-M8N GPS/GLONASS receiver; integrated magnetometer IST8310

Interfaces:
-8 PWM outputs
-4 dedicated PWM/Capture inputs on FMU
-Dedicated R/C input for CPPM
-Dedicated R/C input for Spektrum / DSM and S.Bus with analog / PWM RSSI input
-3 general purpose serial ports
-2 I2C ports
-3 SPI buses
-1 CANBuses for CAN ESC
-Analog inputs for voltage / current of battery
-2 additional analog input

Power System:
Power Brick Input: 4.75~5.5V
USB Power Input: 4.75~5.25V
Servo Rail Input: 0~24V
Max current sensing: 120A
Weight and Dimensions:
Dimensions: 38 x 55 x 15.5mm
Operating temperature: -40 ~ 85℃

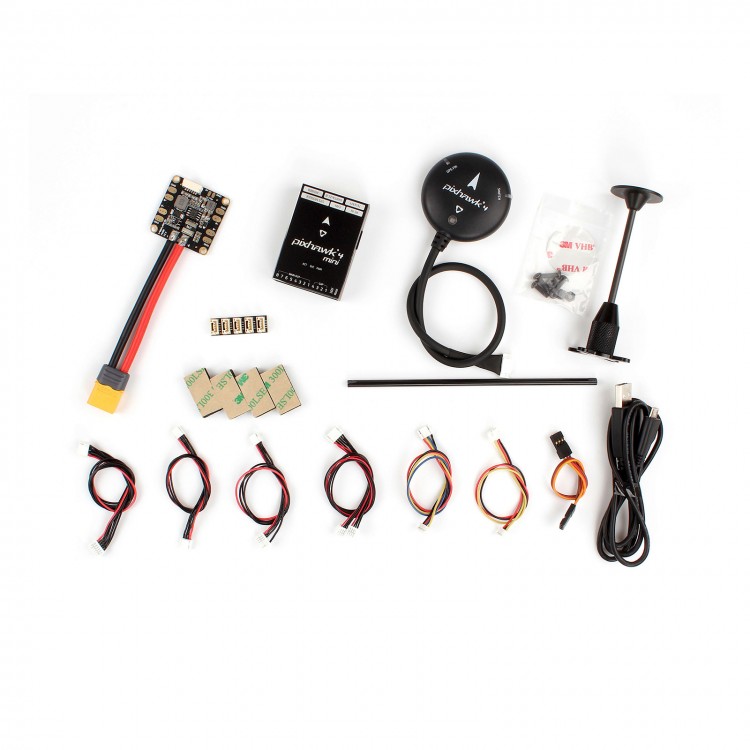

Package List:
-1 x Pixhawk4 mini
-1 x M8N GPS Module
-1 x GPS Holder
-1 x PM06 Power Board
-1 x I2C Splitter Board
-1 x 6 to 6 Pin Cable (Power)
-1 x 4 to 4 Pin Cable (CAN)
-1 x 6 to 4 Pin Cable (Data)
-1 x 6 to 4 Pin And 4 Pin "Y" Cable
-1 x 6 to 6 Pin Cable(Debug)
-1 x PPM/SBUS Out Cable
-1 x XSR Receiver Cable
-1 x DSMX Receiver Cable
-1 x SBUS Receiver Cable
-1 x USB Cable
-1 x Foam Set
