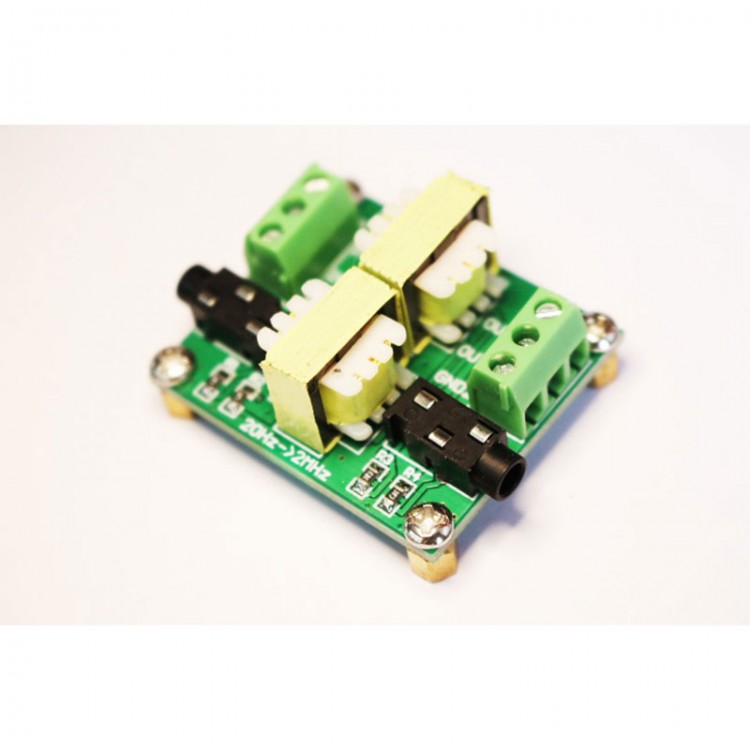

HQ138 20Hz ~ 2MHz Dual Channel Signal Isolation Module for Audio and Signal Isolation Radio Accessory
Description:
- HQ138 is a dual channel signal isolation module with the highest isolation frequency of 2MHz, which is simple to use.
- Application: audio isolation and signal isolation.
Specification:
- Input signal frequency range: 20Hz ~ 2MHz
- Input signal voltage range: < 10V
- Size: L x W x H = 40 x 32 x 20mm
- Weight: 30g
Interface description:
- P1 Interface:
IN1: channel 1 positive input
IN2: channel 2 positive input
GND: negative power supply
- P2 Interface:
OUT1: channel 1 positive output
OUT2: channel 2 positive output
GND: negative power supply
- J1: audio input interface
- J2: audio output interface
Package Included:
- 1 x Signal Isolation Module
