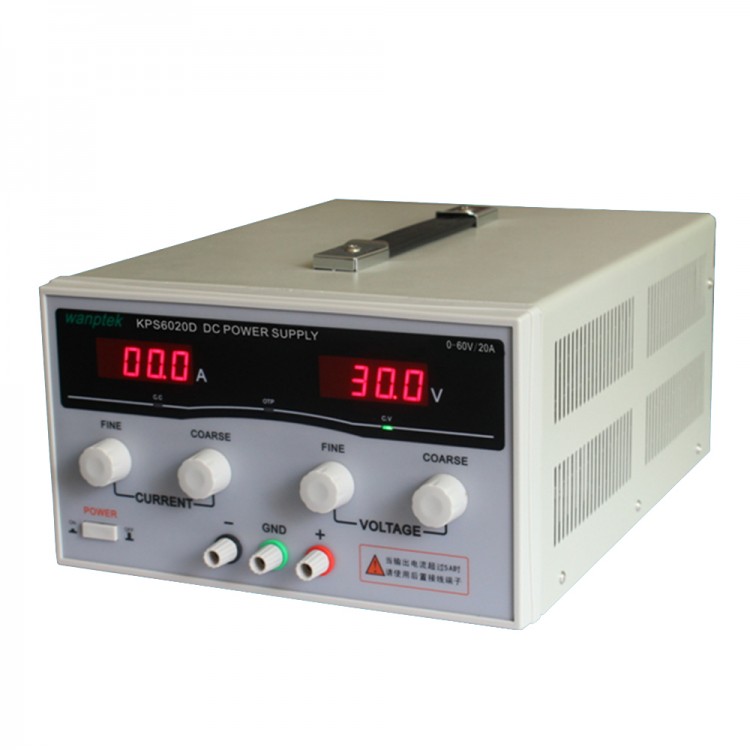

KPS6020D 60V 20A High Precision High Power Adjustable LED Dual Display Switching DC Power Supply
Description:
KPS series is a single set of output, high precision double display switch dc power supply.Machines have complete operating protection function, with high performance, low ripple, high stability , light weight and small volume etc. Current limiting protection can make KPS power supply and load against accidental damage. KPS series power supply with low temperature control circuit, a cooling fan noise is low.
Features:
- Have complete operating protection function
- Highly efficient, low ripple, small volume, light weight
- Double display voltage, current, and high precision
- Voltage stabilization, current limiting, simple operation
- Dual voltage input and convenient choice
- Temperature control fan heat dissipation, low noise
- Double potentiometer more precise adjustment
Technical indicators:
- Input voltage:AC 220V±10%,50Hz
- Output voltage:0 ~ 60V
- Output current:0 ~20A
- Voltage resolution:0.1V
- Current resolution:0.1A
- Power effect:CV≤0.3%+10mV
- Effect of load:CV≤0.5%+30mV
- Ripple and noise:Vp-p≤0.5%+10mV
- Voltage display precision:±1%+1digits
- Current display precision:±1%+1digits
- Net/gross Weight (KG):5.0-5.3/6.2-6.5
- Product size(mm):260W×160H×375L
- Operating environment:(-10~45)C Rh<90%
Package included:
- 1 x DC Power Supply
- 1 x Power cord
- 1 x Manual
