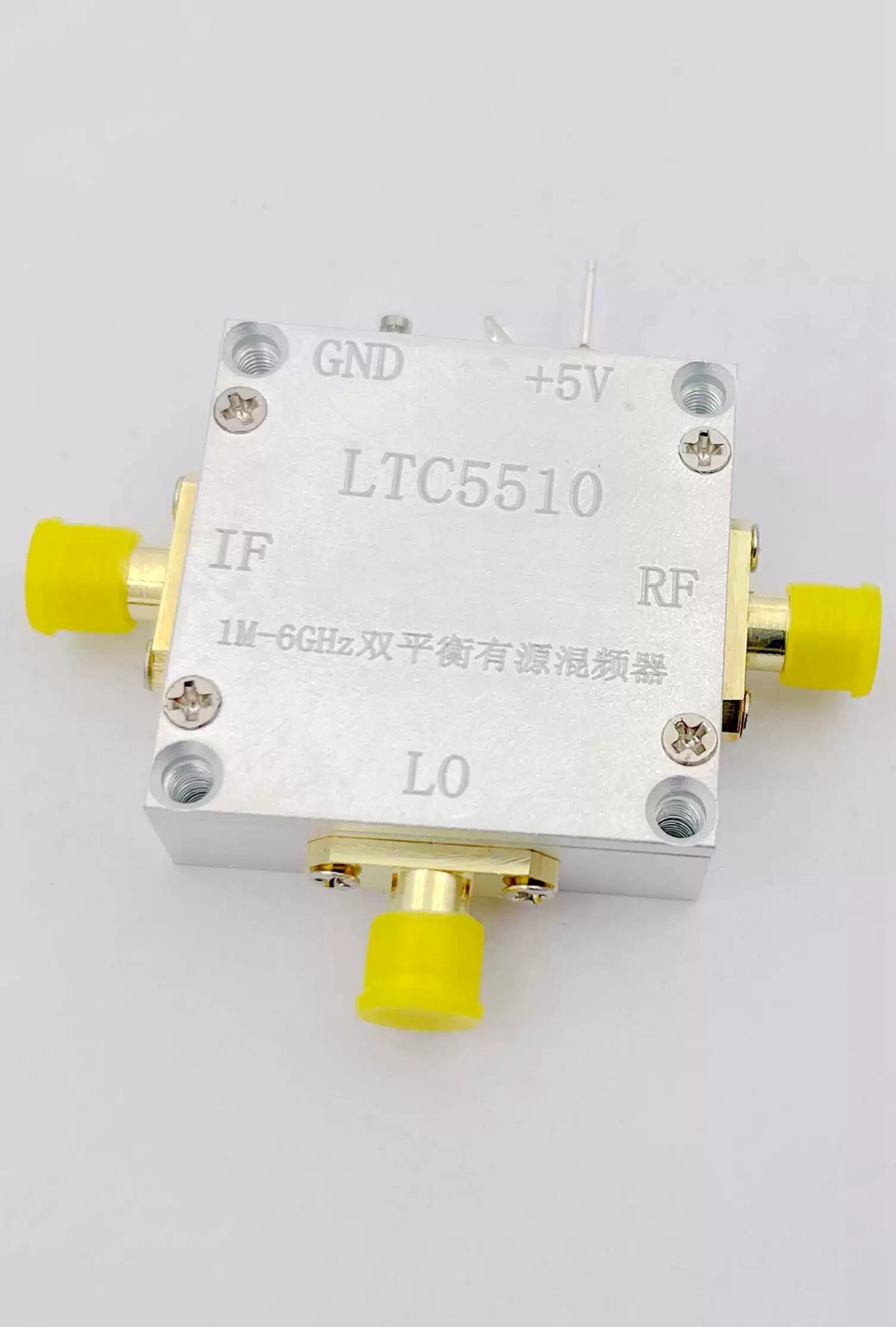

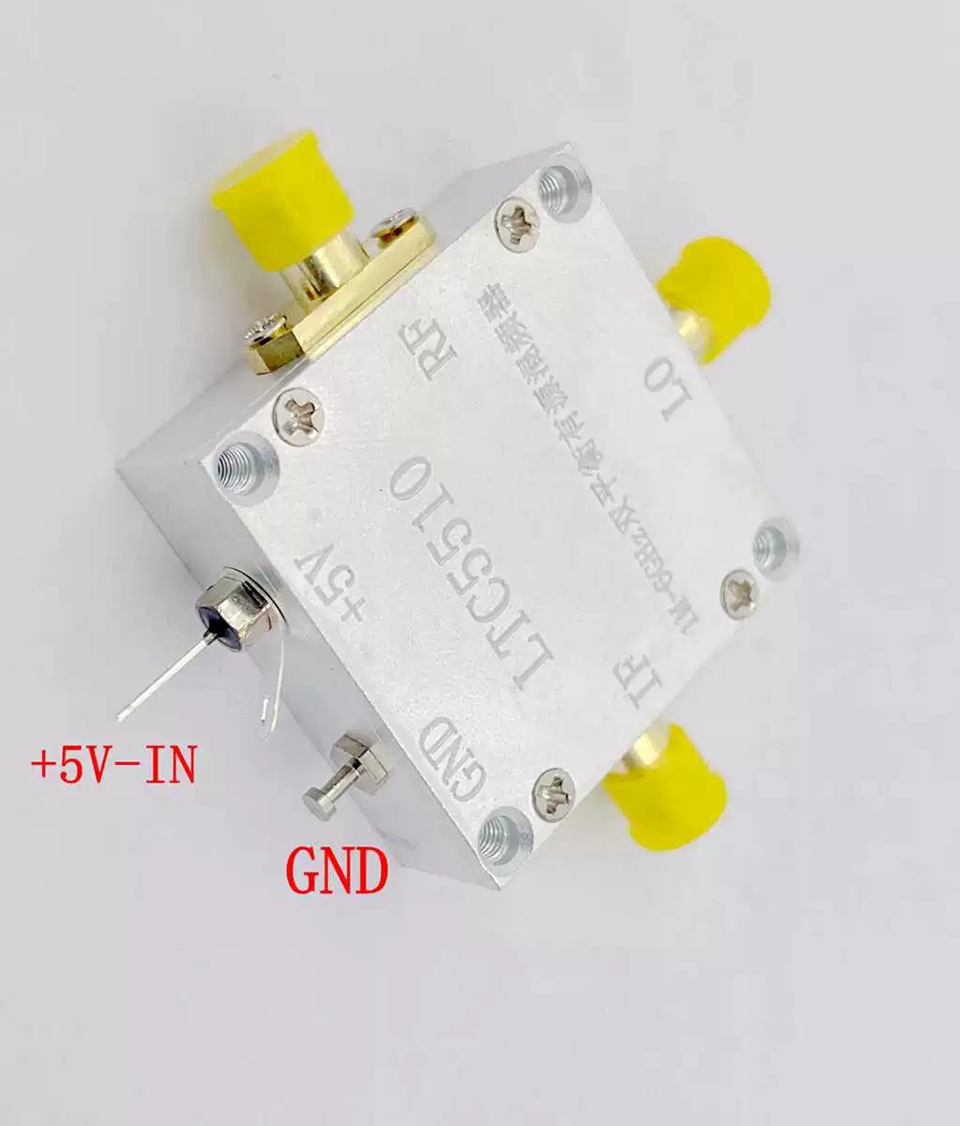

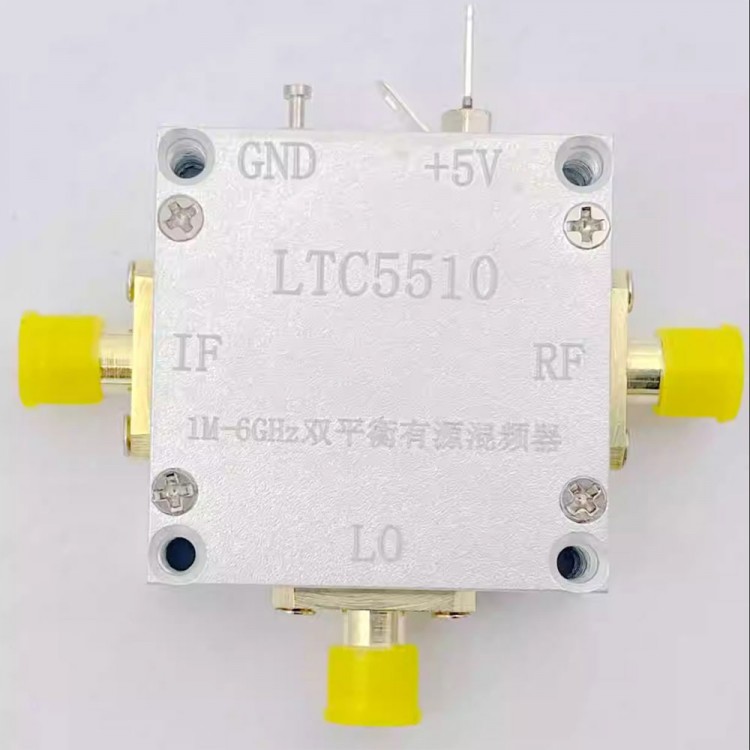

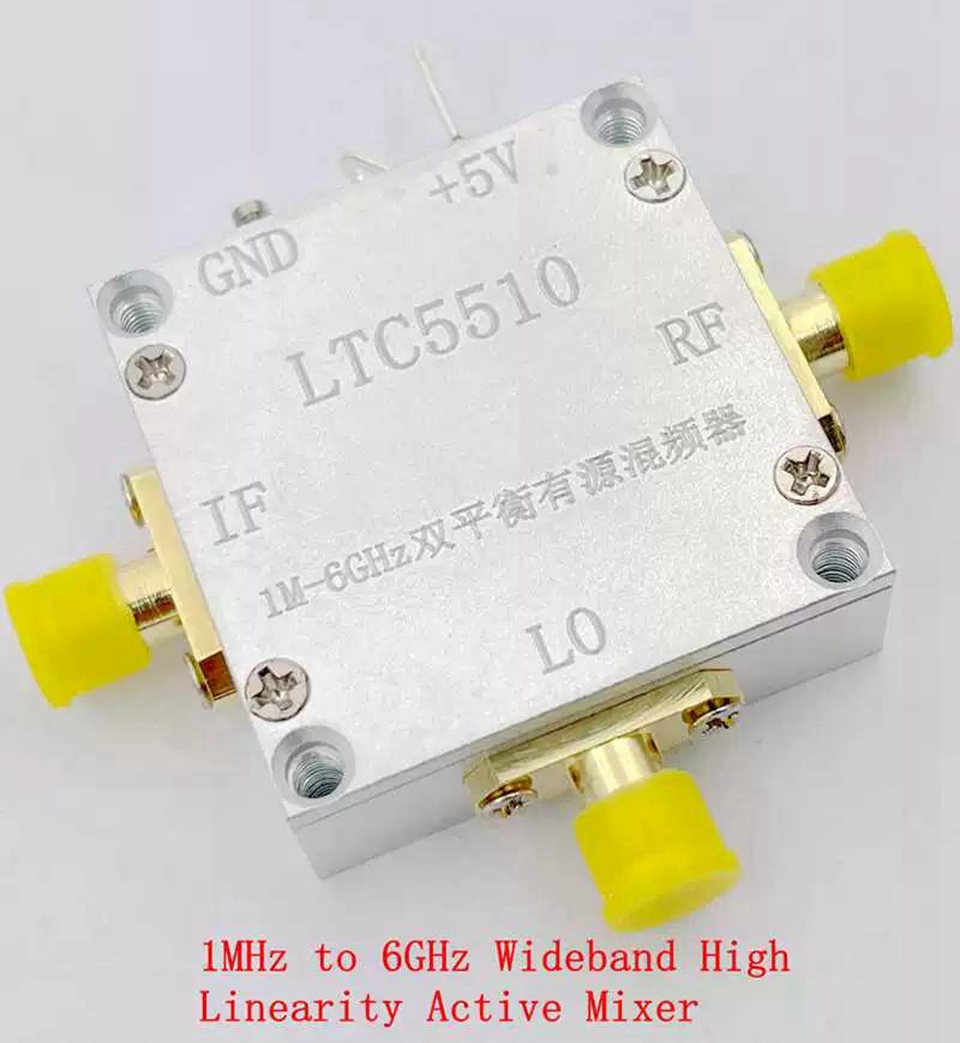

LTC5510 1M-6GHz High Linearity Active Frequency Mixer Integrated Input 6G and Output Balun with SMA Female Connector
Specification:
- Frequency: RF and L0 (1M to 6GHz), IF (1M to 500M, if LF need higher frequency, you need to replace it with a 4:1 output balun by yourself)
- Power supply voltage: 3 - 5V
- Current: 100mA
- Input and output interface: SMA female connector
- Size: 3.5 x 3.5cm
- Frequency mixing loss: within 3dB
Package Included:
- 1 x Frequency Mixer
