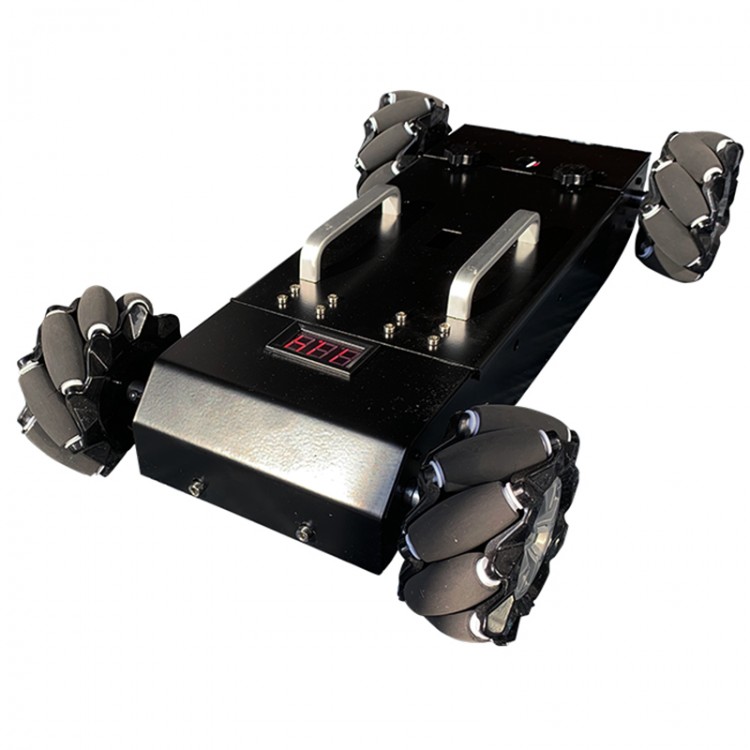

MC200 Robot Car Chassis 4WD RC Car Assembled Mecanum Wheel with Encoding Disk Basic Version

MC200 Robot Car Chassis 4WD RC Car Assembled Mecanum Wheel with Encoding Disk Basic Version

Description:
The power output type of this smart car is four-wheel drive, and there are many commonly used DC gear motor fixing holes. Motors and tires can be replaced according to personal preferences, so that the smart car on-board robot can easily complete high-performance tests such as obstacle crossing and climbing.

Mecanum wheels can move in all directions, can be turned back and forth, left and right, and can move in lateral directions. It can translate and rotate in 360 degrees, as well as the combined movement of translation and rotation. Even in a small space, it can flexibly move to reach its destination.

This platform is suitable for all kinds of robot enthusiasts, major schools and primary and secondary schools to carry out robot education and learning, DIY, etc. Let you feel the infinite fun brought by technology DIY!

Specifications:
- Item Name: MC200 4WD Mecanum wheel chassis
- Body plate material: steel
- Motor type: motor with code disc
- Product weight: about 4.9KG
- Wheel diameter: 97mm
- Wheel width: 47mm
- Ground clearance: 20mm
- Product size: about 43.5*25*9.7cm (LxWxH)
- Product load capacity: about 10-15KG (the load is determined by motor torque and voltage)
- Storage box inside the car body: about 23*13*5.3cm (LxWxH) (with various holes)

Package Included:
- 1 x Set of MC200 Chassis

Note:
- It is assembled.
- Control kit and battery kit are not included.

Parameters of Motor with Code Disc:
