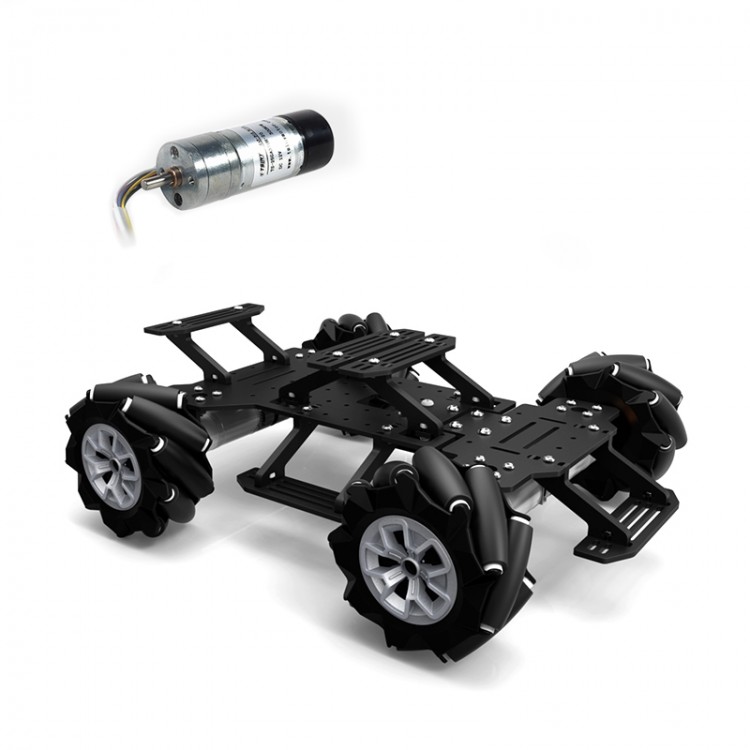

Mecanum Wheel Robot Car DIY Smart Car Chassis Omnidirectional Big Size 0.65A 250RPM for Raspberry Pi

Availability: In stock, usually dispatched in 1 business day

  • Price:$145.51
  • Price in reward points: 1455 Reward Points: 15
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $142.60 $139.69 $135.32 $129.50 Contact US
Quantity:

Mecanum Wheel Robot Car DIY Smart Car Chassis Omnidirectional Big Size 0.65A 250RPM for Raspberry Pi

Parameters:
Vehicle Parameters:
Size: 332*252*108mm
Maximum load: 15kg
Maximum speed: 1.3m/s
Tire: Mecanum wheel, 360° omnidirectional movement (compatible with a variety of common  tires)
Power: full-time 4WD
Encoder: AB bidirectional incremental magnetic Hall encoder

Motor Parameters:
Rated voltage: 12V
Rated current: 0.65A
Rated speed: 250RPM
Rated torque: 0.5kg.cm
Stall current: 2A
Reduction ratio: 1:20

Encoder Parameters:
Input voltage: DC 3.3/5.0V
Interface: PH2.0-6P
Output signal: square wave AB phase
Response frequency: 100Khz
Pulse: 11/RPM (resolution = pulse * reduction ratio)

Drive Parameters:
Input voltage: 7.4-24V (2s-6s Lipo) wide voltage input
Output voltage: equal to input voltage
Main control chip: STM32F103
Communication interface: CAN communication x1; serial communication x2
Motion control: support displacement closed loop, speed closed loop
Motor control interface: support 4-way encoder motor
Drive protection: support over current protection
Protection current (single): MAX: 2A
Extended functions: PS2 remote control, Bluetooth, APP control

Features:
1. Omnidirectional Movement: Freely move in 360 degrees, full-time high-torque four-wheel drive.
2. Four Wheels Landing: When the ground is uneven or over obstacles, the chassis maintains real-time 4 wheels simultaneous stress.
3. Multiple Uses: With wide application, more gameplays are waiting for you to develop. Suitable for Arduino, STM32 Raspberry Pi and other control board.
4. Four-wheel Landing Suspension: High-strength stainless steel material ensures running strength, and ball bearings ensure smooth rotation.

Package List:
-1 Set of Car Chassis
-1 Set of Rotation Kit
-1 Set of Motor Kit
-1 Set of Screws
-1 Set of Nuts

Note:
1. The product package does not include battery.
2. The robot car needs to be assembled yourself.
