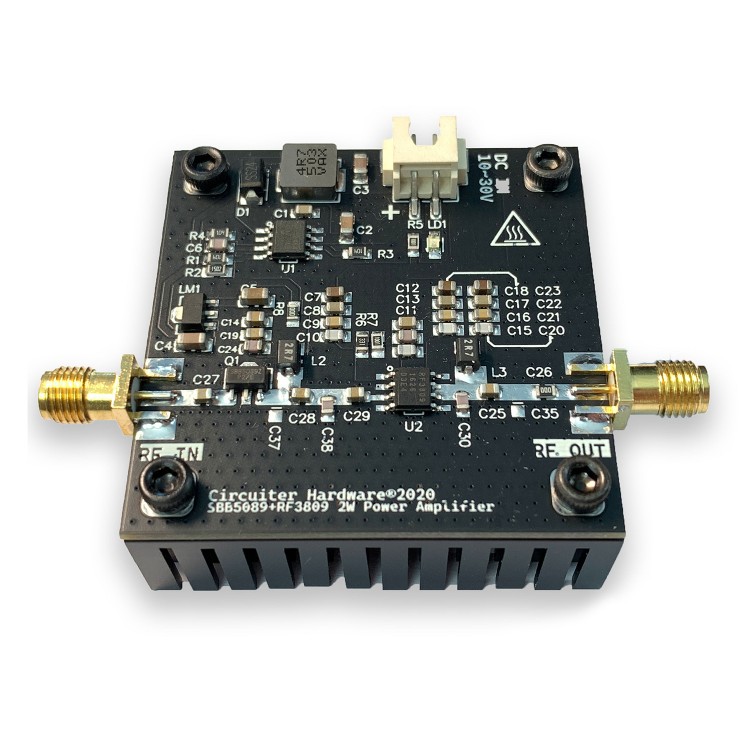

Microwave Power Amplifier RF Power Amplifier SBB5089+RF3809 15MHz~900MHz 2W 33DBm
Features:
- SBB5089+RF3809
- Frequency 15MHz~900MHz
- Input voltage 10~30VDC
- Gain 25dB at 400MHz P1dB33dBm
Specifications:
- Model: RF3809
- Antenna type: external
- Package method: SOP-8
- Size: 5 x 5 x 2mm
- Working frequency: 15MHz
- Working voltage: 10V
- Frequency stability ±: 0KHz
- Maximum output 2W (33dBm)
- Gain 25dB
- Frequency range 15MHz~900MHz
- Supply voltage: 10~30V
- Power supply: about 5W
Package Included:
- 1 x Set of Microwave Power Amp
Note:
- Antenna is not included in the package.
