Mini TS80 Soldering Iron Adjustable Temperature OLED Display USB Type C Power Jack Main Version

Availability: In stock, usually dispatched in 1 business day

  • Price:$87.95
  • Price in reward points: 880 Reward Points: 9
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $86.19 $84.43 $81.79 $78.28 Contact US
Quantity:

Mini TS80 Soldering Iron Adjustable Temperature OLED Display USB Type C Power Jack Main Version

Description:

TS80 is a smart soldering iron powered by USB Type-C interface and QC3.0 standard input. It can be powered by charging plug and mobile power supplies that meet QC3.0 (9V 2A) standard, making mobile soldering more convenient. TS80 controller is made of aluminum alloy through CNC. It is only the size of a pen, and with this compact structure, it also has a high-tech design, ergonomic, beautiful and fashionable.

TS80 controller is equipped with an OLED screen, so you can monitor the status of the soldering iron at any time. With a built-in STM32 chip, it can smartly control the rise and fall of tip temperature, and features sleep, automatic power-off and other modes. The code application layer is open source; you can develop firmware for the soldering iron freely as needed.

TS80 soldering tip uses an internal thermal ceramic heating core, and through the pure copper heat conduction, it can quickly transfer heat to the tip of soldering tip, achieving an excellent temperature control performance. The soldering tip is connected to the controller via a 3.5mm push-in plug, making replacing tips faster and easier than ever.

Features:

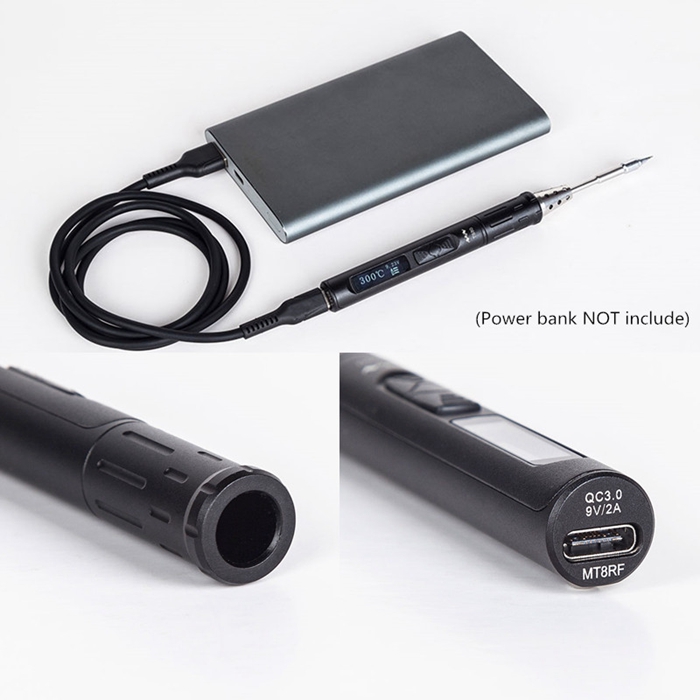

- Newest TS80 portable digital soldering iron with USB type-C power port supporting 9V/2A QC3.0 standard which can be powered by the power bank or smart phone quick power charger directly

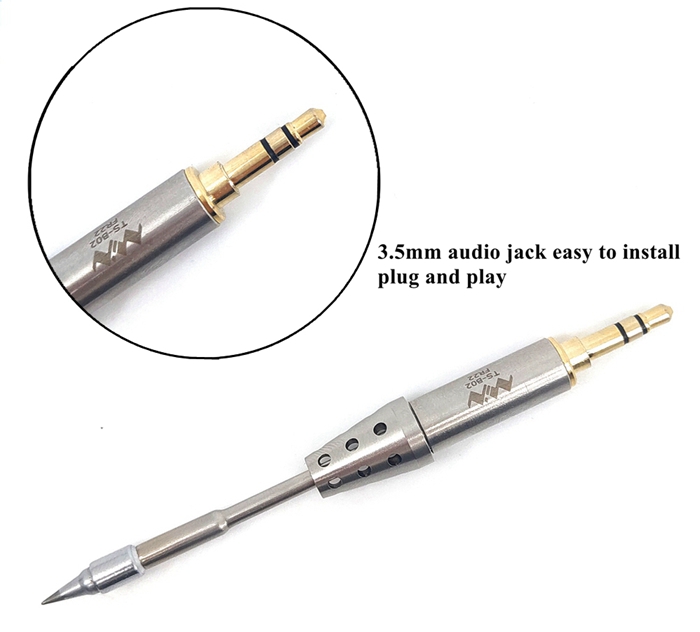

- Pluggable 3.5mm audio jack soldering iron tip design, plug and play no mounting screws needed easy to use
- Embedded STM32 processor chip enable you to update the firmware or parameter setting via computer and large temperature adjustable range (100-400 celsius degree)
- Internal Heating design with accurate temperature control and fast heating speed,reach the set the temperature only few seconds

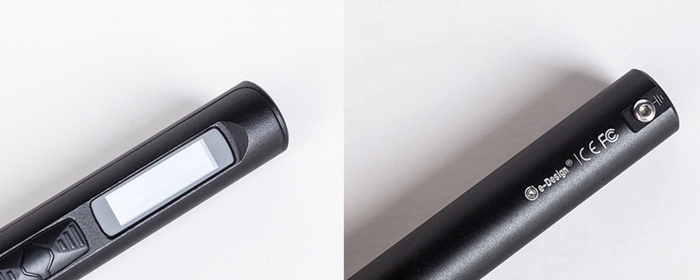

- Digital OLED screen display the parameter and Compact pen shape with CNC machined aluminum alloy shell easy to handle and carry

Technical Parameters:
- Temperature Range: 100℃ - 400℃ (Max)
- Power Input: 9V/2A (QC 3.0)
- Data/Power Interface: USB Type-C
- Temperature stability: ±3%
- Display: OLED

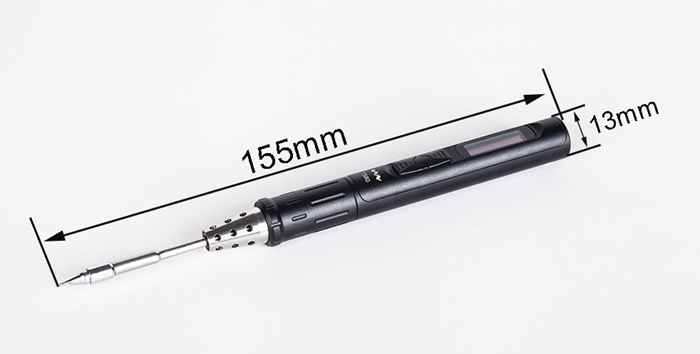

- Length: controller: 95.5mm; tip: 60+40mm
- Weight: 36.5g (power adaptor not included)
- Certifications: CE, FCC

Package Included:

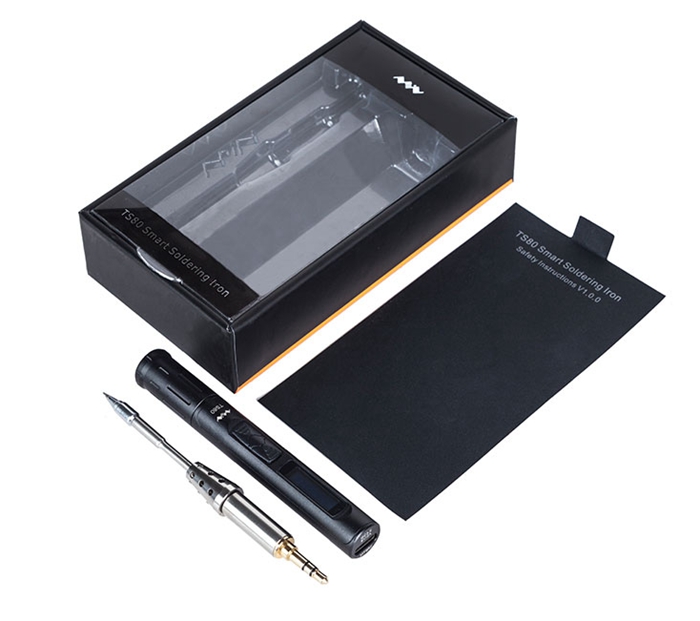

- 1 x TS80 Soldering Iron
- 1 x TS-B02 Soldering Iron Tip
- 1 x User Manual
- 1 x Retail Box
