TS80 Mini Soldering Iron Kit 9V 2A 18W QC3.0 Powered w/ OLED Display STM32 Open Source (Main Version)

TS80 Mini Soldering Iron Kit 9V 2A 18W QC3.0 Powered w/ OLED Display STM32 Open Source (Main Version)

Description:
TS80 is a smart soldering iron with USB Type-C interface and can be powered by QC3.0 standard power supply. It can be powered via a charging head and mobile power supply that comply with QC3.0 (9V 2A) standards, making mobile welding more convenient. The control shell of the soldering iron is made of aluminum alloy and integrated with CNC. The size of the signature pen is compact, the structure is ergonomic, beautiful and fashionable, and has a sense of technology.

TS80 control terminal is equipped with an OLED display, which is convenient for you to control the status of soldering iron at any time. Built-in STM32 main control chip can intelligently control the temperature rise and fall, and has multiple modes such as sleep and automatic shutdown. The code application layer is open source, you can develop soldering iron firmware according to your needs.

TS80 soldering iron tip adopts internal ceramic heating core, through the pure copper heat conduction part, quickly transfer heat to the tip of the soldering iron head, and the temperature control performance is stable. The tip of the soldering iron is connected to the control end through a 3.5mm plug. Changing the tip of the soldering iron is faster and more convenient than ever.

Performance Parameters:
- Temperature range: 100℃-400 ℃ (factory preset 300℃)
- Temperature error: ±3%
- Resistance of soldering iron tip to ground: <2Ω
- Power: 18W
- Power input: 9V / 2A (QC 3.0)
- Power interface: USB Type-C
- Display screen: OLED
- Control end size: length 96mm, diameter 14mm
- Soldering iron tip size: 100 (60 + 40) mm, diameter: 10.3mm
- Weight: 33g (without power supply)
- Certification: CE, FCC

Attention: ** Reference time from 30℃ to 300℃: 22s

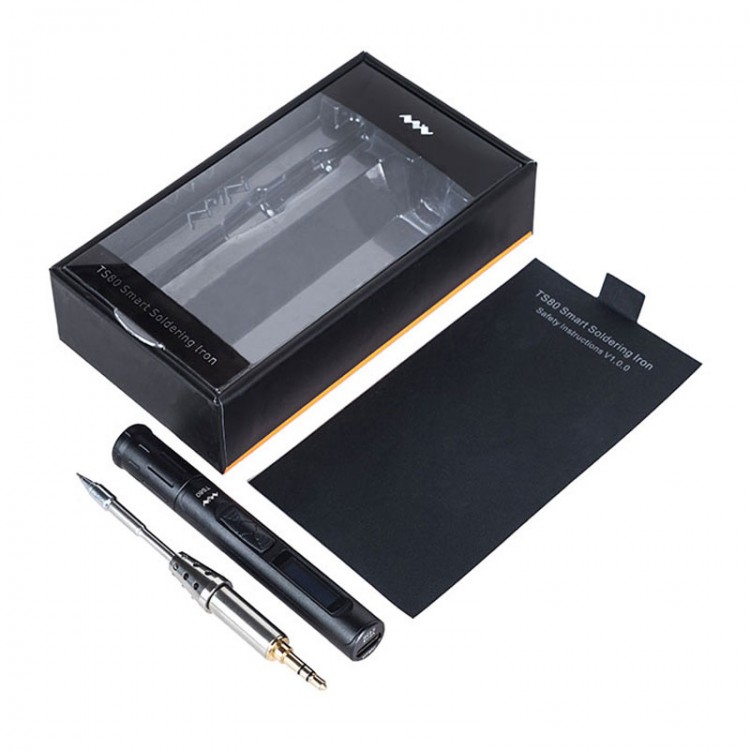

Package Included:
- 1 x TS80 Soldering Iron
- 1 x TS-B02 Tip
- 1 x User Manual

Note:
- Please select QC3.0 (9V 2A) power adapter for Qualcomm certification mark. Before connecting a USB3.1, Type-C (9V) power adapter that supports QC3.0 (9V 2A), please check whether the power adapter is marked to support 9V 2A output.
- If you use non-standard QC3.0 or power adapter that does not support 9V 2A, TS80 will not work normally.
-TS80 does not support USB Type-C output power adapter and cannot use USB Type-C to USB Type-C cable to connect TS80.
