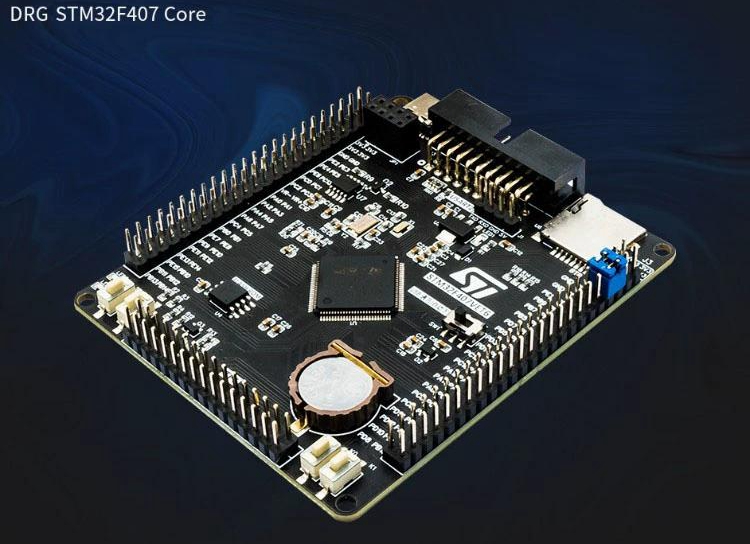

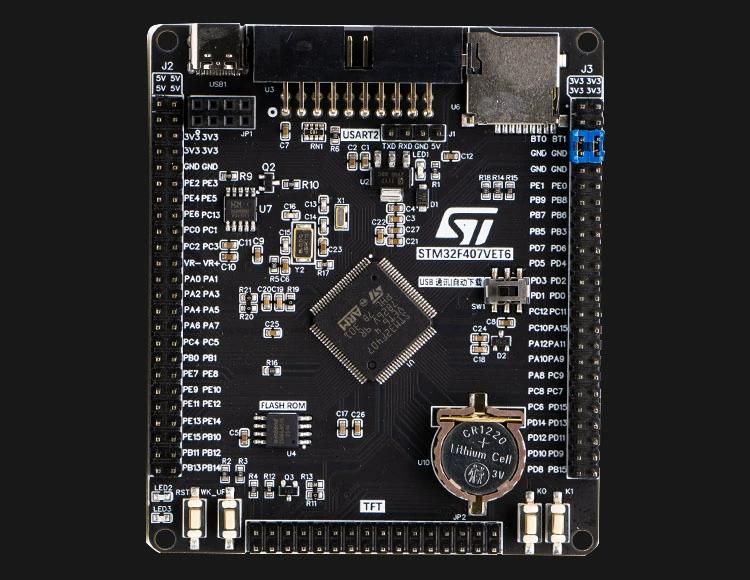

MKS DRG STM32F407VET6 Core Development Board High Performance Core Board Support SWD Programming
Features:
- All materials are directly supplied by the original factory or supplied by the designated agent of the original factory, with a complete traceability mechanism.
- Produced by our own factory with strict quality control, the factory mainly produces industrial control products, which have passed ISO9001 and 13485 certifications.

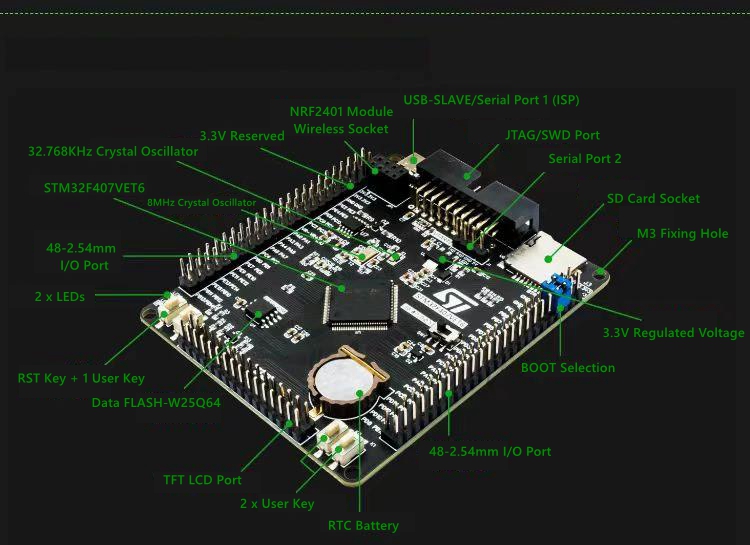

- TFT LCD screen interface, paired with DRG TFT screen (only for TFT screen version), plug and play.
- On board W25Q64 chip, all 10 ports (82) are led out.
- Support for SWD programming and JTAG simulation.
- TYPE-C interface, supports serial ISP download.
- Onboard NEF2401 module wireless socket, SD memory card holder, CR1220 battery (not included). Power LEDs and 2 custom LEDs can be used to observe the running status of the program.
- 1 reset buttons, 1 wake-up button, and 2 user buttons for easy operation.
Specification:
- Cortex: Cortex-M432-bit TISC
- Characteristic: single cycle DSP instructions
- Working frequency: 168MHz 210DMIPS/1.25DMIPS/MHz
- Working voltage: 1.8V - 3.6V
- Memory: 512KB Flash 196 + 4KB SRAM
Package Included:
- 1 x Development Board
Information:
- Instruction Video: https://www.bilibili.com/video/BV1Zj411677S
- Resource download: https://pan.baidu.com/s/1ZvbKXRsaEtTllHdII9EtWA?pwd=uy2l; password: uy2l
