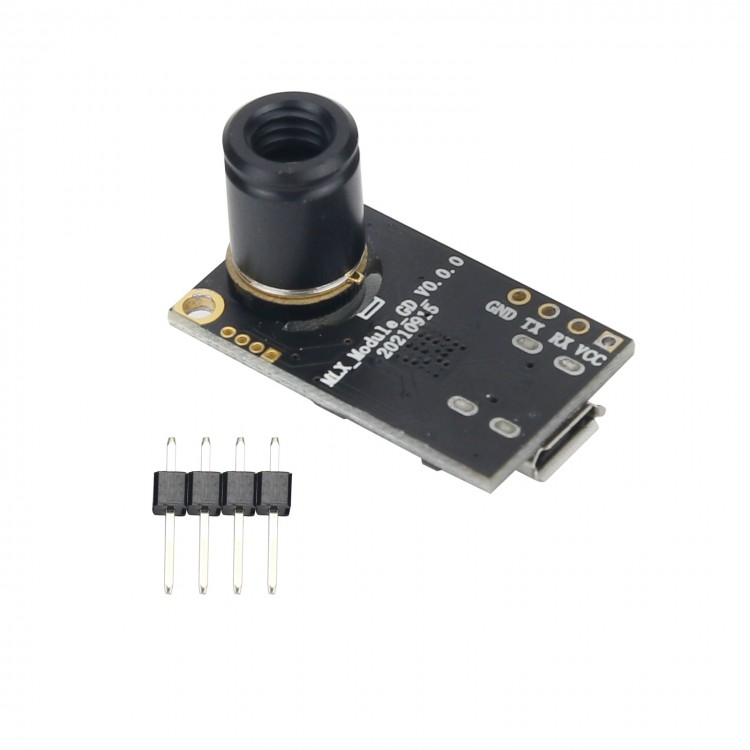

MLX90640ESF-BAA Module Thermal Imager Camera Thermal Sensor 110°x75° Dot Matrix Sensor DIY

Availability: In stock, usually dispatched in 1 business day

  • Price:$64.56
  • Price in reward points: 646 Reward Points: 6
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $63.27 $61.98 $60.04 $57.46 Contact US
Quantity:

MLX90640ESF-BAA Module Thermal Imager Camera Thermal Sensor 110°x75° Dot Matrix Sensor DIY

Download Manual & Computer Software:

- Link: https://pan.baidu.com/s/1d7bPGblDgqnaeZQDBPS4Hw  Extraction code: m011

Features:

- Micro USB interface (USB to UART TTL) can be directly plugged into a computer to view images and configure parameters
- UART TTL interface can output temperature and configuration parameters
- Power supply: 5V
- Size: 28 x 16.6mm/1.1 x 0.7"
- Use MLX90640ESF-BAA sensor
- Sensor dot matrix: 32x24
- Detection temperature: -40℃ to 300℃
- Sensor viewing angle: 110°x75°
- Multiple output modes: automatic output of 768 points of temperature, output of the highest and lowest temperature, PWM alarm output
- Detection accuracy: +/-2.5° (center point, target temperature 10 to 50°C, working temperature 10 to 50°C, refresh rate 1HZ)
- Support multiple baud rates

Electrical Characteristics:
- Input voltage: minimum 4.5V, typical 5.0V and maximum 5.5V

Environmental Requirements:
- Storage temperature: minimum 0℃, maximum 70℃
- Working temperature: minimum 10℃, maximum 50℃
- Humidity: 70%

Package Included:
- 1 x Thermal Camera Sensor

Note:
- Technical support is not provided. Thank you for your understanding!


The Relationship between Detection Distance and Object Size is as Follows:


Host Computer Use (USB directly plug into a computer, install serial port driver):
