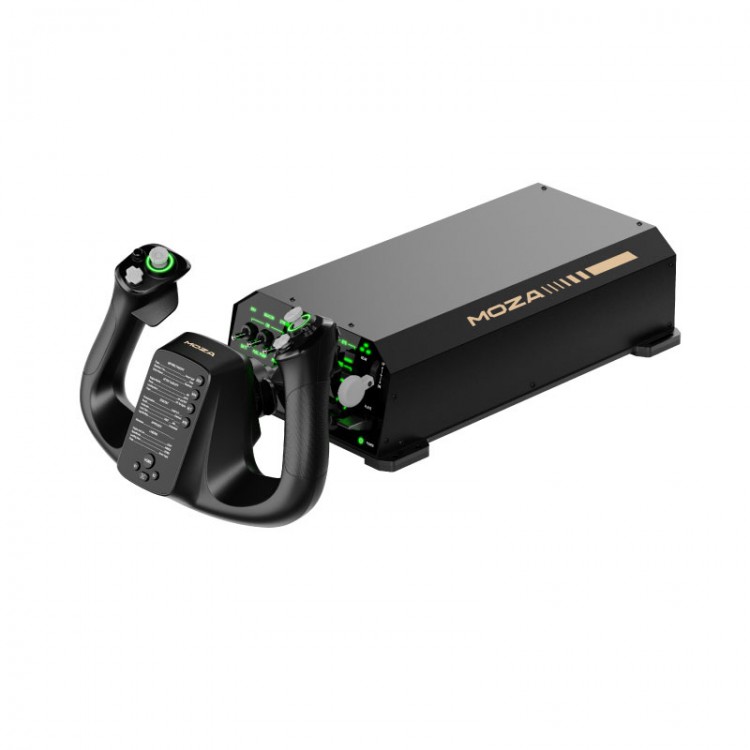

MOZA AY210 Yoke Force Feedback Base and MOZA MFY Yoke Flight Simulator for Realistic Sim Experience

MOZA AY210 Yoke Force Feedback Base and MOZA MFY Yoke Flight Simulator for Realistic Sim Experience

Wheel Base:
1. Features:
Precision Control, True-to-Life Flight
* Designed for both general aviation and commercial airliners, the MOZA AY210 Yoke Base features proprietary MCLS¹ force feedback technology, delivering an authentic and immersive flying experience.

Made with High-strength Steel
* The wheel base's body is constructed from high-strength steel, delivering outstanding durability, structural rigidity, and a refined finish. This robust material ensures long-term stability and reliability, meeting the demands of professional flight simulation.

All-Aluminum Quick-Release Mechanism
* The wheel base features a quick release mechanism, similar to those used in racing cars, enabling fast and effortless attachment or detachment from the flight base. This design allows for easy switching between different yokes to suit your needs.

Programmable Switch Panel
* The front panel features 13 physical switches, fully customizable via the MOZA Cockpit software. Users can program these switches to manage advanced functions like lighting, telemetry, and long-press commands, delivering a more immersive experience during takeoff, landing, and flight.

150mm Travel Distance
* With an extended 150mm range of motion, this system provides greater control and precision, meeting the demands of professional-grade performance.

9Nm Torque and 210N Push Force
* The roll axis delivers a continuous torque of 9Nm, while the pitch axis can produce a peak push and pull force of 210N. These robust outputs ensure highly detailed feedback, faithfully simulating the dynamic handling and responsiveness of real aircraft.

High Performance, Instant Response
* Powered by a 280MHz high-speed processor and a 15-bit high-resolution magnetic encoder, the system delivers ultra-responsive inputs—whether for fine-tuned adjustments or aggressive maneuvers—enhancing realism, immersion, and control.

Compatible with Leading Flight Sim Games
* The system works with most major flight simulation titles. It also supports built-in telemetry force feedback for games.
* For Microsoft Flight Simulator 2024 - PC
* For Microsoft Flight Simulator 2020 - PC
* For Microsoft Flight Simulator X - PC
* War Thunder - PC
* DCS World 2.9
* Star Citizen
* IL-2 Sturmovik: Great Battles
* For Xplane 11
* For Xplane 12

Versatile Mounting Options
* The system accommodates a range of mounting methods, including desktop mounting, suspended desktop clamping, direct installation on simulator cockpits, and aluminum profile mounts. This flexibility ensures compatibility with various setups and user preferences.

Extensive Software Customization
* MOZA Cockpit provides a wide range of customization options, enabling users to fine-tune settings such as lighting brightness and behavior. The software also features diverse force feedback presets to enhance the simulation experience.

Built to Last, Tested to the Extreme
* Engineered for durability, the frame and electronics undergo millions of extreme stress and endurance tests, guaranteeing reliable, long-term performance with no structural or electronic failures.

2. Specifications:
* Dimensions: 243mm × 403mm × 216mm
* Main Housing Material: High-Strength Steel
* Weight: 8.0kg
* Motors: Dual high-performance servo motors
* Max Pitch Force: 210N
* Sustained Roll Torque: 9Nm
* Travel Distance: 150mm
* Compatible Yokes: MOZA Yoke Series
* Power: 216W
* Voltage: 110–220V AC → 36V DC
* Chip Precision: 15-bit magnetic encoder
* USB Refresh Rate: 1000Hz
* Mounting Options: Desktop clamp (optional), suspended desktop clamp (optional), direct mounting on a simulator cockpit
* Connection Ports: Power, USB, throttle, rudder pedals, panel, etc.
* Emergency Stop Switch: Optional
* Intelligent Telemetry Force Feedback: Supported (no plug-in required)
* Native Force Feedback: Supported
* Platform Support: PC

Yoke Flight Simulator:
1. Features:
Full 180° Rotation, Realistic Handling
* With a ±90° roll axis, the MFY yoke accurately replicates the movement range of real aircraft controls, ensuring smooth and precise maneuvering.

Authentic Design Professional Simulation
* Inspired by real commercial aircraft yokes, the MFY is ergonomically designed for comfort and precision, ensuring an intuitive and highly realistic flight simulation experience.

High-Strength Materials
* Crafted with fiberglass-reinforced PA66, the MOZA MFY Yoke offers exceptional durability and wear resistance. Capable of withstanding up to 30kg of force, it delivers unmatched stability and reliability, even during the most demanding operations.

Supports 34 Configurable Inputs
* The MOZA MFY Yoke supports up to 34 inputs, including axis-to-button mapping. Easily switch mapping modes using MOZA Cockpit software or built-in shortcut buttons.

Customizable RGB Lighting
* Create a personalized cockpit ambiance with full-spectrum RGB lighting. Choose from a variety of modes and adjust settings to match your preferences for a fully immersive experience.

Aluminum Alloy Quick Release
* The MOZA MFY Yoke features a race car-inspired quick-release mechanism, allowing for quick and effortless attachment or detachment. Simply push and pull to connect or remove the yoke in seconds.

Multi-Functional Customizable Triggers
* Equipped with versatile triggers, the MOZA MFY Yoke lets you configure them via MOZA Cockpit software as axes or button inputs. Adapt them for Elevator/Pitch Trim, rudder controls, Autopilot Off, camera navigation, or microphone activation (Push to Talk), offering versatile flexibility.

Hall Effect Joystick
* The MOZA MFY Yoke includes a Hall-effect electromagnetic joystick for smooth, drift-free performance. Its contactless design ensures superior precision with no dead zones. Map the joystick as an axis or button signal in MOZA Cockpit for added versatility.

Magnetic DIY Panels
* Personalize your yoke with two front-mounted magnetic panels. Customize the content easily with printable DIY designs to match your preferences.

2. Specifications:
* Dimensions: 142.5mm × 202mm × 313mm
* Case Material: Composite material
* Quick Release Material: Aluminum alloy
* Button Cap Material: ABS plastic
* Weight: 1.3kg
* 8-Way Switches: 2
* Hall Effect Joysticks: 2
* LB/RB Buttons: 2
* Triggers: 2
* Total Signal Outputs: Supports up to 34

Packing List:
* 1 × Wheel Base
* 1 × Power Adapter
* 1 × Power Cable
* 1 × Data Cable
* 1 × Set of Screws and Wrench
* 1 × Wheel Base User Manual
* 1 × MOZA MFY YOKE
* 1 × MOZA MFY YOKE User Manual

Packaging Details:
* Weight: 12kg
