MQ131 Ozone Gas Detection Sensor Module with Shell Version O3 Monitoring Fast Response

MQ131 Ozone Gas Detection Sensor Module with Shell Version O3 Monitoring Fast Response

Specification:
Detection gas: ozone
Detection range: 10~1000ppb
Working voltage: DC 24V
Working current: 200mA
Output voltage: 0~10V (default)
Cleaning air: voltage≤1.5V
Sensitivity: ≥3%
Loop voltage: ≤DC 24V
Load resistance: 500K (adjustable)
Component power consumption: ≤1W
Service life: 5 years
Working temperature: 10~50℃ (nominal temperature 20℃)
Operating humidity: 95%RH (nominal humidity 65%RH)
Response time: ≤1S (preheat 30~50 minutes)
Recovery time: ≤30S
Weight: 40g

Features:
-Qualitative detection, the analog output corresponds to the voltage change, the higher the concentration, the higher the voltage.
-Test the ambient air quality, with good sensitivity to ozone.
-The sensor module has an analog voltage signal output.
-The output signal range can be adjusted.
-Long service life and good stability.
-With fast response recovery characteristic.

Application:
Mainly used for qualitative detection, suitable for gas detection equipment in homes and environments, and suitable for ozone gas detection.

Package List:
1 x Ozone Detection Sensor Module

Note:
-The output is non-linear; only take a value in the range of 0-10V. Because the sensor is a semiconductor sensor, the sensor will default to a voltage value range of about 1-3V, please subject to the actual output.
-The output is non-linear; only take a value in the range of 0-5V. Because the sensor is a semiconductor sensor, the sensor will default to a voltage value range of about 0.5-1.5V, please subject to the actual output.

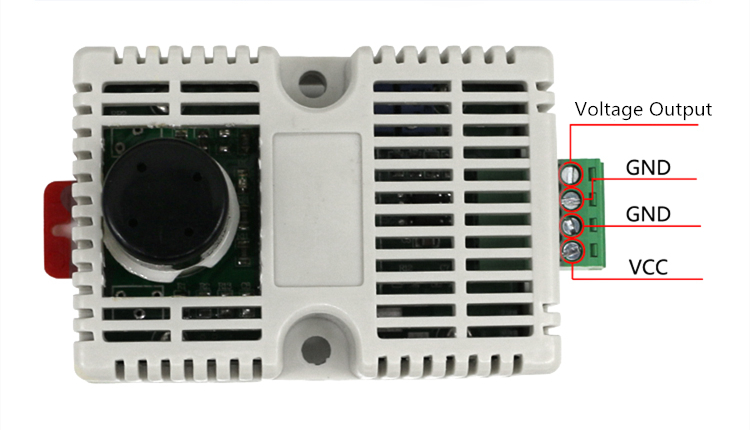

Note: The first GND under "Voltage Output" is the signal ground.
