NASPi-Gemini 3.5 NAS Storage w/ 3.5" SATA HDD Shield Metal Shell 12V Power Supply for Raspberry Pi 4

NASPi-Gemini 3.5 NAS Storage w/ 3.5" SATA HDD Shield Metal Shell 12V Power Supply for Raspberry Pi 4

Overview:
NASPi-Gemini 3.5 is an ultra-compact dual 3.5 inch SATA HDD NAS storage kit for Raspberry Pi 4 8GB/4GB/2GB.

With RAID, PWM fan, safe shutdown and automatic power on function, it allows 2pcs 3.5" HDDs/SSDs to working at the same time with your board for Raspberry Pi 4. It also can be used with one single 3.5" SATA HDD/SSD.

NASPi-Gemini 3.5 is composed of 3 parts: X885 dual 3.5" SATA HDD shield, X885-C1 metal case and cooling solution X823-A3 (3Pin 4010 PWM fan with metal bracket).

User Manual:
- X885: wiki.geekworm.com/X885
- Software: wiki.geekworm.com/X885-software
- RAID Setting: wiki.geekworm.com/NASPi_Gemini_3.5#Raid_Setting

How to Power?
- Power supply: 12Vdc +/-5% , ≥5A, via DC 12V IN Port of X885
- Ports & Connectors: DC jack - 5.5x2.1mm
- Important Note: Please use high quality power adapter, the low quality PSU may damage the X885 board and not recognized the HDD.

NASPi Gemini 3.5 Features:
- Ideal storage solution for Raspberry Pi 4 - Dual SATA Gen3 ports Shield
- Create high performance storage with a dual SATA HDD RAID array through USB 3.1 (5Gbps)
- Supports Standard Desktop 3.5" SATA Hard Drives or SSD
- Supports SATA I, II and III and is enhanced with UASP to maximize the performance and speed of your SATA III drives
- Supports Transfer Speeds up to 5Gbps (USB 3.0),480Mbps (USB 2.0), 12Mbps (USB 1.1)
- For hardware JBOD, RAID0(striping), RAID1(mirror), Normal mode
- Supports mode select via jumper setting
- LED blue indicator indicates each drive status
- Onboard push button to control power on, safe shutdown, reboot and force shutdown
- Supports full power-off from software
- Onboard red LED shows the status of power on, reboot and shutdown
- Powers the board for Raspberry Pi via the 40pin header - no additional cabling required
- Onboard PH2.0 connectors for external switch and PWM cooling fan

12V 5A 60W Power Adapter Features:
- Input: 100-240V 50/60Hz 1.2A Max.
- Output: 12V Max.5A 60W
- Cable length: 1.2m/47.24 inches
- Connection: DC55*21

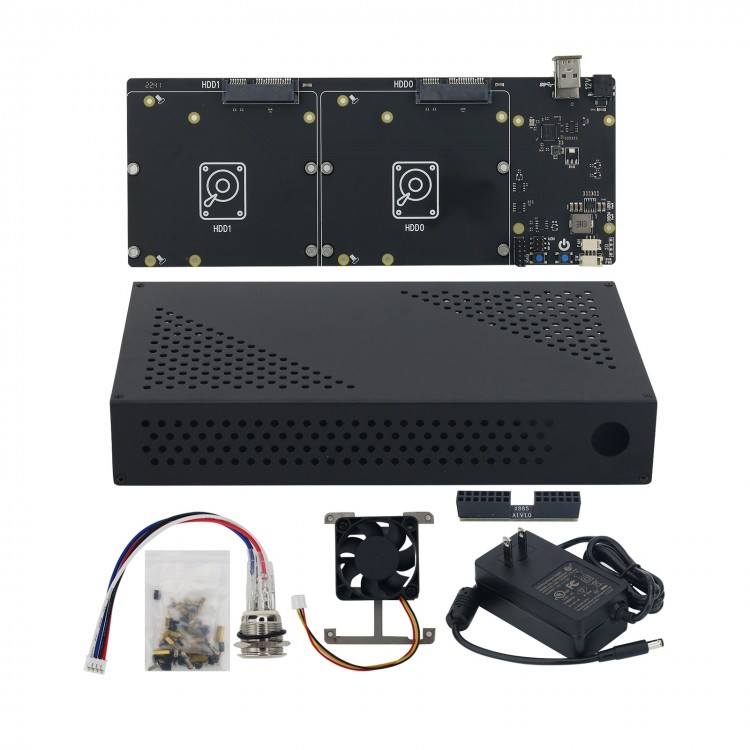

Package Included:
- 1 x X885 Dual 3.5" SATA HDD shield
- 1 x X885-C1 metal case
- 1 x 3pin 4010 PWM fan with metal bracket
- 1 x Set of fixing accessories
- 1 x DC 12V 5A 60W power adapter

Note:
- The board for Raspberry Pi and HDD are not included.
- Assembling is needed.
